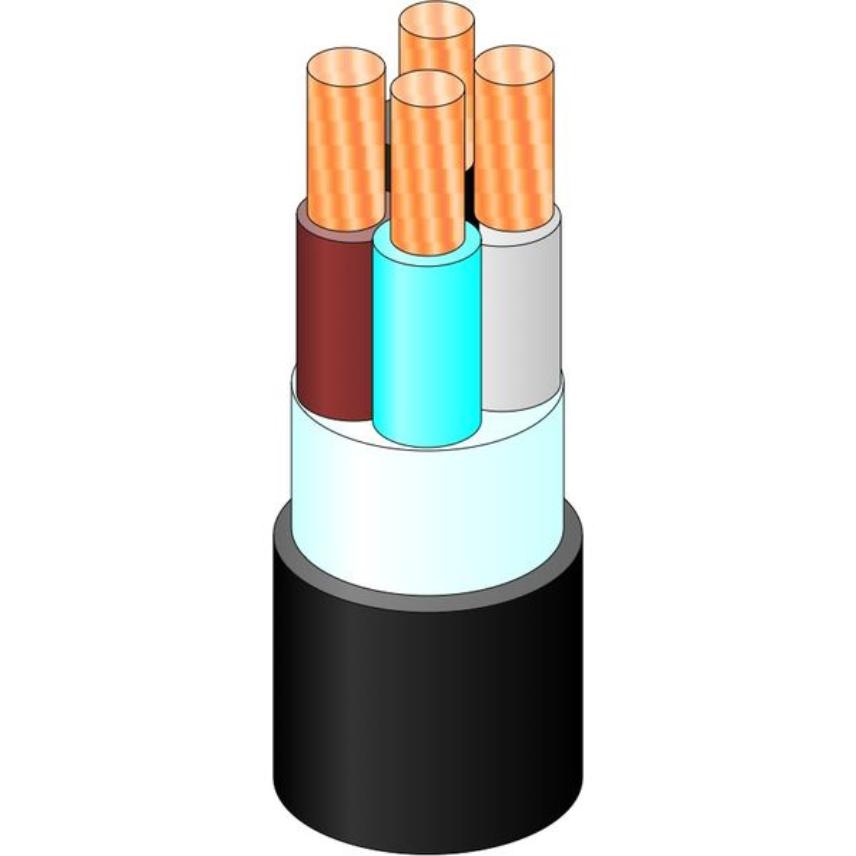

IEC LV, PVC Insulation, PVC 0.6/1KV

Products

12x1.5

Nexans ref. 2E002BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 12
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 550 kg/km
  • Nominal outer diameter: 18.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 19 A
  • Voltage drop, 3 conductors: 22.6 V/A.km



12x2.5

Nexans ref. 2E003BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 12
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 710 kg/km
  • Nominal outer diameter: 20.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 24 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



19x1.5

Nexans ref. 2F002BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 19
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 750 kg/km
  • Nominal outer diameter: 21.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 19 A
  • Voltage drop, 3 conductors: 22.6 V/A.km



19x2.5

Nexans ref. 2F003BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 19
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 990 kg/km
  • Nominal outer diameter: 23.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 24 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



1x 50

Nexans ref. 21050BVZOUB09BD0

  • Packaging: Drum (m)
  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 50 mm²
  • Approximate weight: 550 kg/km
  • Nominal outer diameter: 14.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 174 A
  • Permissible current rating when buried: 156 A
  • Voltage drop, 3 conductors: 0.83 V/A.km



1x120

Nexans ref. 21120BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 120 mm²
  • Approximate weight: 1260 kg/km
  • Nominal outer diameter: 19.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 321 A
  • Permissible current rating when buried: 261 A
  • Voltage drop, 3 conductors: 0.38 V/A.km



1x150

Nexans ref. 21150BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 150 mm²
  • Approximate weight: 1560 kg/km
  • Nominal outer diameter: 21.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 372 A
  • Permissible current rating when buried: 293 A
  • Voltage drop, 3 conductors: 0.33 V/A.km



1x185

Nexans ref. 21185BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 185 mm²
  • Approximate weight: 1940 kg/km
  • Nominal outer diameter: 24.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 427 A
  • Permissible current rating when buried: 331 A
  • Voltage drop, 3 conductors: 0.28 V/A.km



1x240

Nexans ref. 21240BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 240 mm²
  • Approximate weight: 2480 kg/km
  • Nominal outer diameter: 26.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 507 A
  • Permissible current rating when buried: 382 A
  • Voltage drop, 3 conductors: 0.24 V/A.km



1x300

Nexans ref. 21300BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 300 mm²
  • Approximate weight: 3080 kg/km
  • Nominal outer diameter: 29.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Permissible current rating in open air: 587 A
  • Permissible current rating when buried: 427 A
  • Voltage drop, 3 conductors: 0.21 V/A.km



1x400

Nexans ref. 21400BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 400 mm²
  • Approximate weight: 3930 kg/km
  • Nominal outer diameter: 32.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • Permissible current rating in open air: 689 A
  • Permissible current rating when buried: 530 A
  • Voltage drop, 3 conductors: 0.18 V/A.km



1x500

Nexans ref. 21500BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 500 mm²
  • Approximate weight: 5040 kg/km
  • Nominal outer diameter: 36.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km
  • Permissible current rating in open air: 789 A
  • Permissible current rating when buried: 607 A
  • Voltage drop, 3 conductors: 0.16 V/A.km



1x630

Nexans ref. 21630BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 630 mm²
  • Approximate weight: 6320 kg/km
  • Nominal outer diameter: 40.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km
  • Permissible current rating in open air: 905 A
  • Permissible current rating when buried: 696 A
  • Voltage drop, 3 conductors: 0.15 V/A.km



1x70

Nexans ref. 21070BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 70 mm²
  • Approximate weight: 750 kg/km
  • Nominal outer diameter: 16.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 225 A
  • Permissible current rating when buried: 192 A
  • Voltage drop, 3 conductors: 0.6 V/A.km



1x95

Nexans ref. 21095BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 95 mm²
  • Approximate weight: 1030 kg/km
  • Nominal outer diameter: 18.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 275 A
  • Permissible current rating when buried: 230 A
  • Voltage drop, 3 conductors: 0.46 V/A.km



24x1.5

Nexans ref. 2I002BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 24
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 980 kg/km
  • Nominal outer diameter: 24.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 19 A
  • Voltage drop, 3 conductors: 22.6 V/A.km



24x2.5

Nexans ref. 2I003BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 24
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 1300 kg/km
  • Nominal outer diameter: 27.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 24 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



2x1.5

Nexans ref. 22002BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 180 kg/km
  • Nominal outer diameter: 11.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 19 A
  • Voltage drop, 3 conductors: 22.6 V/A.km



2x10

Nexans ref. 22010BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 10 mm²
  • Approximate weight: 500 kg/km
  • Nominal outer diameter: 17.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 60 A
  • Permissible current rating when buried: 54 A
  • Voltage drop, 3 conductors: 3.5 V/A.km



2x120

Nexans ref. 22120BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 120 mm²
  • Approximate weight: 3630 kg/km
  • Nominal outer diameter: 39.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 276 A
  • Permissible current rating when buried: 220 A
  • Voltage drop, 3 conductors: 0.37 V/A.km



2x150

Nexans ref. 22150BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 150 mm²
  • Approximate weight: 4490 kg/km
  • Nominal outer diameter: 43.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 319 A
  • Permissible current rating when buried: 246 A
  • Voltage drop, 3 conductors: 0.31 V/A.km



2x16

Nexans ref. 22016BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 16 mm²
  • Approximate weight: 670 kg/km
  • Nominal outer diameter: 19.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 80 A
  • Permissible current rating when buried: 70 A
  • Voltage drop, 3 conductors: 2.2 V/A.km



2x185

Nexans ref. 22185BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 185 mm²
  • Approximate weight: 5540 kg/km
  • Nominal outer diameter: 48.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 364 A
  • Permissible current rating when buried: 278 A
  • Voltage drop, 3 conductors: 0.27 V/A.km



2x2.5

Nexans ref. 22003BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 220 kg/km
  • Nominal outer diameter: 12.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 24 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



2x25

Nexans ref. 22025BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 25 mm²
  • Approximate weight: 975 kg/km
  • Nominal outer diameter: 22.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 101 A
  • Permissible current rating when buried: 92 A
  • Voltage drop, 3 conductors: 1.5 V/A.km



2x35

Nexans ref. 22035BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 35 mm²
  • Approximate weight: 1230 kg/km
  • Nominal outer diameter: 24.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 126 A
  • Permissible current rating when buried: 110 A
  • Voltage drop, 3 conductors: 1.1 V/A.km



2x4

Nexans ref. 22004BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 4 mm²
  • Approximate weight: 300 kg/km
  • Nominal outer diameter: 14.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 34 A
  • Permissible current rating when buried: 33 A
  • Voltage drop, 3 conductors: 8.7 V/A.km



2x50

Nexans ref. 22050BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 50 mm²
  • Approximate weight: 1620 kg/km
  • Nominal outer diameter: 27.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 153 A
  • Permissible current rating when buried: 130 A
  • Voltage drop, 3 conductors: 0.81 V/A.km



2x6

Nexans ref. 22006BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 6 mm²
  • Approximate weight: 370 kg/km
  • Nominal outer diameter: 15.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 43 A
  • Permissible current rating when buried: 41 A
  • Voltage drop, 3 conductors: 5.9 V/A.km



2x70

Nexans ref. 22070BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 70 mm²
  • Approximate weight: 2220 kg/km
  • Nominal outer diameter: 31.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 196 A
  • Permissible current rating when buried: 162 A
  • Voltage drop, 3 conductors: 0.58 V/A.km



2x95

Nexans ref. 22095BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 95 mm²
  • Approximate weight: 2990 kg/km
  • Nominal outer diameter: 36.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 238 A
  • Permissible current rating when buried: 193 A
  • Voltage drop, 3 conductors: 0.44 V/A.km



37x1.5

Nexans ref. 2M002BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 37
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 1320 kg/km
  • Nominal outer diameter: 27.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 19 A
  • Voltage drop, 3 conductors: 22.6 V/A.km



37x2.5

Nexans ref. 2M003BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 37
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 1770 kg/km
  • Nominal outer diameter: 30.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 24 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



3x1.5

Nexans ref. 23002BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 220 kg/km
  • Nominal outer diameter: 12.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 19 A
  • Voltage drop, 3 conductors: 22.6 V/A.km



3x10

Nexans ref. 23010BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 10 mm²
  • Approximate weight: 560 kg/km
  • Nominal outer diameter: 17.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 60 A
  • Permissible current rating when buried: 54 A
  • Voltage drop, 3 conductors: 3.5 V/A.km



3x120

Nexans ref. 23120BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 120 mm²
  • Approximate weight: 3850 kg/km
  • Nominal outer diameter: 35.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 276 A
  • Permissible current rating when buried: 220 A
  • Voltage drop, 3 conductors: 0.37 V/A.km



3x120+70

Nexans ref. 27120BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 120 mm²
  • Approximate weight: 4020 kg/km
  • Nominal outer diameter: 41.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 276 A
  • Permissible current rating when buried: 220 A
  • Voltage drop, 3 conductors: 0.37 V/A.km



3x150

Nexans ref. 23150BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 150 mm²
  • Approximate weight: 4720 kg/km
  • Nominal outer diameter: 39.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 319 A
  • Permissible current rating when buried: 246 A
  • Voltage drop, 3 conductors: 0.31 V/A.km



3x150+70

Nexans ref. 27150BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 150 mm²
  • Approximate weight: 4930 kg/km
  • Nominal outer diameter: 45.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 319 A
  • Permissible current rating when buried: 246 A
  • Voltage drop, 3 conductors: 0.31 V/A.km



3x16

Nexans ref. 23016BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 16 mm²
  • Approximate weight: 785 kg/km
  • Nominal outer diameter: 19.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 80 A
  • Permissible current rating when buried: 70 A
  • Voltage drop, 3 conductors: 2.2 V/A.km



3x185

Nexans ref. 23185BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 185 mm²
  • Approximate weight: 5860 kg/km
  • Nominal outer diameter: 43.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 364 A
  • Permissible current rating when buried: 278 A
  • Voltage drop, 3 conductors: 0.27 V/A.km



3x185+95

Nexans ref. 27185BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 185 mm²
  • Approximate weight: 6060 kg/km
  • Nominal outer diameter: 49.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 364 A
  • Permissible current rating when buried: 278 A
  • Voltage drop, 3 conductors: 0.27 V/A.km



3x2.5

Nexans ref. 23003BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 260 kg/km
  • Nominal outer diameter: 13.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 24 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



3x240

Nexans ref. 23240BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 240 mm²
  • Approximate weight: 7410 kg/km
  • Nominal outer diameter: 49.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 430 A
  • Permissible current rating when buried: 320 A
  • Voltage drop, 3 conductors: 0.23 V/A.km



3x240+120

Nexans ref. 27240BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 240 mm²
  • Approximate weight: 7830 kg/km
  • Nominal outer diameter: 55.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 430 A
  • Permissible current rating when buried: 320 A
  • Voltage drop, 3 conductors: 0.23 V/A.km



3x25

Nexans ref. 23025BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 25 mm²
  • Approximate weight: 1230 kg/km
  • Nominal outer diameter: 24.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 101 A
  • Permissible current rating when buried: 92 A
  • Voltage drop, 3 conductors: 1.5 V/A.km



3x25+16

Nexans ref. 27025BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 25 mm²
  • Approximate weight: 1310 kg/km
  • Nominal outer diameter: 26.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 101 A
  • Permissible current rating when buried: 92 A
  • Voltage drop, 3 conductors: 1.5 V/A.km



3x300

Nexans ref. 23300BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 300 mm²
  • Approximate weight: 9390 kg/km
  • Nominal outer diameter: 54.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Permissible current rating in open air: 497 A
  • Permissible current rating when buried: 359 A
  • Voltage drop, 3 conductors: 0.2 V/A.km



3x300+150

Nexans ref. 27300BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 300 mm²
  • Approximate weight: 9680 kg/km
  • Nominal outer diameter: 62.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Permissible current rating in open air: 497 A
  • Permissible current rating when buried: 359 A
  • Voltage drop, 3 conductors: 0.2 V/A.km



3x35

Nexans ref. 23035BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 35 mm²
  • Approximate weight: 1575 kg/km
  • Nominal outer diameter: 26.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 126 A
  • Permissible current rating when buried: 110 A
  • Voltage drop, 3 conductors: 1.1 V/A.km



3x35+16

Nexans ref. 27035BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 35 mm²
  • Approximate weight: 1660 kg/km
  • Nominal outer diameter: 28.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 126 A
  • Permissible current rating when buried: 110 A
  • Voltage drop, 3 conductors: 1.1 V/A.km



3x4

Nexans ref. 23004BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 4 mm²
  • Approximate weight: 320 kg/km
  • Nominal outer diameter: 14.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 34 A
  • Permissible current rating when buried: 33 A
  • Voltage drop, 3 conductors: 8.7 V/A.km



3x50

Nexans ref. 23050BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 50 mm²
  • Approximate weight: 1640 kg/km
  • Nominal outer diameter: 25.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 153 A
  • Permissible current rating when buried: 130 A
  • Voltage drop, 3 conductors: 0.81 V/A.km



3x50+25

Nexans ref. 27050BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 50 mm²
  • Approximate weight: 1700 kg/km
  • Nominal outer diameter: 28.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 153 A
  • Permissible current rating when buried: 130 A
  • Voltage drop, 3 conductors: 0.81 V/A.km



3x6

Nexans ref. 23006BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 6 mm²
  • Approximate weight: 400 kg/km
  • Nominal outer diameter: 15.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 43 A
  • Permissible current rating when buried: 41 A
  • Voltage drop, 3 conductors: 5.9 V/A.km



3x70

Nexans ref. 23070BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 70 mm²
  • Approximate weight: 2280 kg/km
  • Nominal outer diameter: 28.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 196 A
  • Permissible current rating when buried: 162 A
  • Voltage drop, 3 conductors: 0.58 V/A.km



3x70+35

Nexans ref. 27070BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 70 mm²
  • Approximate weight: 2370 kg/km
  • Nominal outer diameter: 31.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 196 A
  • Permissible current rating when buried: 162 A
  • Voltage drop, 3 conductors: 0.58 V/A.km



3x95

Nexans ref. 23095BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 95 mm²
  • Approximate weight: 3110 kg/km
  • Nominal outer diameter: 32.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 238 A
  • Permissible current rating when buried: 193 A
  • Voltage drop, 3 conductors: 0.44 V/A.km



3x95+50

Nexans ref. 27095BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 95 mm²
  • Approximate weight: 3200 kg/km
  • Nominal outer diameter: 35.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 238 A
  • Permissible current rating when buried: 193 A
  • Voltage drop, 3 conductors: 0.44 V/A.km



4x1.5

Nexans ref. 24002BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 250 kg/km
  • Nominal outer diameter: 13.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 19 A
  • Voltage drop, 3 conductors: 22.6 V/A.km



4x10

Nexans ref. 24010BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 10 mm²
  • Approximate weight: 600 kg/km
  • Nominal outer diameter: 20.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 60 A
  • Permissible current rating when buried: 54 A
  • Voltage drop, 3 conductors: 3.5 V/A.km



4x120

Nexans ref. 24120BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 120 mm²
  • Approximate weight: 5010 kg/km
  • Nominal outer diameter: 39.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 276 A
  • Permissible current rating when buried: 220 A
  • Voltage drop, 3 conductors: 0.37 V/A.km



4x150

Nexans ref. 24150BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 150 mm²
  • Approximate weight: 6170 kg/km
  • Nominal outer diameter: 43.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 319 A
  • Permissible current rating when buried: 246 A
  • Voltage drop, 3 conductors: 0.31 V/A.km



4x16

Nexans ref. 24016BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 16 mm²
  • Approximate weight: 1040 kg/km
  • Nominal outer diameter: 22.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 80 A
  • Permissible current rating when buried: 70 A
  • Voltage drop, 3 conductors: 2.2 V/A.km



4x185

Nexans ref. 24185BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 185 mm²
  • Approximate weight: 7690 kg/km
  • Nominal outer diameter: 48.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 364 A
  • Permissible current rating when buried: 278 A
  • Voltage drop, 3 conductors: 0.27 V/A.km



4x2.5

Nexans ref. 24003BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 310 kg/km
  • Nominal outer diameter: 14.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 24 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



4x240

Nexans ref. 24240BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 240 mm²
  • Approximate weight: 9990 kg/km
  • Nominal outer diameter: 54.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 430 A
  • Permissible current rating when buried: 320 A
  • Voltage drop, 3 conductors: 0.23 V/A.km



4x25

Nexans ref. 24025BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 25 mm²
  • Approximate weight: 1530 kg/km
  • Nominal outer diameter: 26.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 101 A
  • Permissible current rating when buried: 92 A
  • Voltage drop, 3 conductors: 1.5 V/A.km



4x300

Nexans ref. 24300BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 300 mm²
  • Approximate weight: 12540 kg/km
  • Nominal outer diameter: 61.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Permissible current rating in open air: 497 A
  • Permissible current rating when buried: 359 A
  • Voltage drop, 3 conductors: 0.2 V/A.km



4x35

Nexans ref. 24035BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 35 mm²
  • Approximate weight: 1960 kg/km
  • Nominal outer diameter: 28.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 126 A
  • Permissible current rating when buried: 110 A
  • Voltage drop, 3 conductors: 1.1 V/A.km



4x4

Nexans ref. 24004BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 4 mm²
  • Approximate weight: 430 kg/km
  • Nominal outer diameter: 16.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 34 A
  • Permissible current rating when buried: 33 A
  • Voltage drop, 3 conductors: 8.7 V/A.km



4x50

Nexans ref. 24050BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 50 mm²
  • Approximate weight: 2120 kg/km
  • Nominal outer diameter: 27.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 153 A
  • Permissible current rating when buried: 130 A
  • Voltage drop, 3 conductors: 0.81 V/A.km



4x6

Nexans ref. 24006BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 6 mm²
  • Approximate weight: 540 kg/km
  • Nominal outer diameter: 18.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 43 A
  • Permissible current rating when buried: 41 A
  • Voltage drop, 3 conductors: 5.9 V/A.km



4x70

Nexans ref. 24070BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 70 mm²
  • Approximate weight: 2960 kg/km
  • Nominal outer diameter: 31.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 196 A
  • Permissible current rating when buried: 162 A
  • Voltage drop, 3 conductors: 0.58 V/A.km



4x95

Nexans ref. 24095BVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 95 mm²
  • Approximate weight: 4035 kg/km
  • Nominal outer diameter: 36.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 238 A
  • Permissible current rating when buried: 193 A
  • Voltage drop, 3 conductors: 0.44 V/A.km



5x1.5

Nexans ref. 25002BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 290 kg/km
  • Nominal outer diameter: 14.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 19 A
  • Voltage drop, 3 conductors: 22.6 V/A.km



5x10

Nexans ref. 25010BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 10 mm²
  • Approximate weight: 910 kg/km
  • Nominal outer diameter: 21.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 60 A
  • Permissible current rating when buried: 54 A
  • Voltage drop, 3 conductors: 3.5 V/A.km



5x16

Nexans ref. 25016BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 16 mm²
  • Approximate weight: 1270 kg/km
  • Nominal outer diameter: 24.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 80 A
  • Permissible current rating when buried: 70 A
  • Voltage drop, 3 conductors: 2.2 V/A.km



5x2.5

Nexans ref. 25003BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 360 kg/km
  • Nominal outer diameter: 15.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 24 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



5x25

Nexans ref. 25025BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 25 mm²
  • Approximate weight: 1880 kg/km
  • Nominal outer diameter: 28.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 101 A
  • Permissible current rating when buried: 92 A
  • Voltage drop, 3 conductors: 1.5 V/A.km



5x35

Nexans ref. 25035BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 35 mm²
  • Approximate weight: 2470 kg/km
  • Nominal outer diameter: 32.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 126 A
  • Permissible current rating when buried: 110 A
  • Voltage drop, 3 conductors: 1.1 V/A.km



5x4

Nexans ref. 25004BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 4 mm²
  • Approximate weight: 520 kg/km
  • Nominal outer diameter: 18.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 34 A
  • Permissible current rating when buried: 33 A
  • Voltage drop, 3 conductors: 8.7 V/A.km



5x50

Nexans ref. 25050BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 50 mm²
  • Approximate weight: 2840 kg/km
  • Nominal outer diameter: 36.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 153 A
  • Permissible current rating when buried: 130 A
  • Voltage drop, 3 conductors: 0.81 V/A.km



5x6

Nexans ref. 25006BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 6 mm²
  • Approximate weight: 655 kg/km
  • Nominal outer diameter: 19.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 43 A
  • Permissible current rating when buried: 41 A
  • Voltage drop, 3 conductors: 5.9 V/A.km



5x70

Nexans ref. 25070BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 70 mm²
  • Approximate weight: 3890 kg/km
  • Nominal outer diameter: 41.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 196 A
  • Permissible current rating when buried: 162 A
  • Voltage drop, 3 conductors: 0.58 V/A.km



7x1.5

Nexans ref. 2C002BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 7
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 390 kg/km
  • Nominal outer diameter: 16.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 19 A
  • Voltage drop, 3 conductors: 22.6 V/A.km



7x2.5

Nexans ref. 2C003BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 7
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 450 kg/km
  • Nominal outer diameter: 17.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 24 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



9x1.5

Nexans ref. 2K002BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 9
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 470 kg/km
  • Nominal outer diameter: 17.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 19 A
  • Voltage drop, 3 conductors: 22.6 V/A.km



9x2.5

Nexans ref. 2K003BVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 9
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 605 kg/km
  • Nominal outer diameter: 19.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 24 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



Description

Description

Standards

  • International
    IEC 60332-1; IEC 60502-1
  • National
    MEW - LV Kuwait

Application


These power cables are used for electricity supply in low voltage installation systems.

They are well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plant…)



Design



  1. Conductor
    Stranded bare copper class 2 acc. to IEC 60228

  2. Insulation
    Polyvinyl chloride "PVC"

  1. Outer Sheath
    Polyvinyl Chloride "PVC"

       Option:

       - Flame retardant, Option "CAT A, CAT B, CAT C" to IEC60332 or equivalent.

       - Ozone resistant.

       - Oil resistant.

       - Anti termite.



 Installation Conditions:

  1. Air Temperature : 30 Deg.
  2. Ground Temperature: 20 Deg.
  3. Soil Thermal Resistivity : 2.5 k.m/w
  4. Depth of lay : 0.7 m

 All dimensions have tolerance +- 7 %



Marking

no. of cores x conductor sizes mm2 Cu / PVC / PVC 600/1000 V  IEC 60502-1  MADE IN QATAR QICC-Nexans Year Meters

Custom marking available

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Insulation
PVC compound
Armour type
Unarmoured
Outer sheath
PVC
Colour
Black
Conductor flexibility
Stranded class 2
Halogen free
No

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0.6/1 kV

Usage characteristics

Usage characteristics

Max. conductor temperature in service
70 °C
Short-circuit max. conductor temperature
160 °C
Flame retardant
Yes
Bending factor when laying
15 (xD)
Bending factor when installed
8 (xD)

Resources

Resources

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
