IEC MV, XLPE Insulation, CTS, STA, PE - AD

IEC MV, XLPE Insulation, CTS, STA, PE - AD

IEC MV, XLPE Insulation, CTS, STA, PE - AD

Multi-core XLPE-insulated cables with PVC sheath

Read more
Contact us

Products

Actions
Filters

  • products

3x120

Nexans ref. 23120AXTMTM00DZ0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 5750 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x120

Nexans ref. 23120AXTMTM00FZ0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 6130 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x120

Nexans ref. 23120AXTMTM00GZ0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 6640 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x120

Nexans ref. 23120AXTMTM00PZ0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 7110 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x120

Nexans ref. 23120AXTMTM00KZ0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 9500 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x150

Nexans ref. 23150AXTMTM00DZ0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 6605 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x150

Nexans ref. 23150AXTMTM00FZ0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 7010 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x150

Nexans ref. 23150AXTMTM00GZ0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 7560 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x150

Nexans ref. 23150AXTMTM00PZ0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 8760 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x150

Nexans ref. 23150AXTMTM00KZ0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 10510 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x185

Nexans ref. 23185AXTMTM00DZ0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 7630 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x185

Nexans ref. 23185AXTMTM00FZ0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 8040 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x185

Nexans ref. 23185AXTMTM00GZ0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 9330 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x185

Nexans ref. 23185AXTMTM00PZ0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 9870 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x185

Nexans ref. 23185AXTMTM00KZ0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 11710 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x240

Nexans ref. 23240AXTMTM00DZ0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 9160 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x240

Nexans ref. 23240AXTMTM00FZ0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 10330 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x240

Nexans ref. 23240AXTMTM00GZ0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 10930 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x240

Nexans ref. 23240AXTMTM00PZ0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 11480 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x240

Nexans ref. 23240AXTMTM00KZ0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 13385 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x25

Nexans ref. 23025AXTMTM00DZ0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 2390 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x25

Nexans ref. 23025AXTMTM00FZ0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 2960 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x25

Nexans ref. 23025AXTMTM00GZ0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 3420 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x300

Nexans ref. 23300AXTMTM00DZ0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 11980 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x300

Nexans ref. 23300AXTMTM00FZ0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 12360 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x300

Nexans ref. 23300AXTMTM00GZ0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 12950 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x300

Nexans ref. 23300AXTMTM00PZ0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 13420 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x300

Nexans ref. 23300AXTMTM00KZ0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 14325 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x35

Nexans ref. 23035AXTMTM00DZ0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 2730 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x35

Nexans ref. 23035AXTMTM00FZ0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 3380 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x35

Nexans ref. 23035AXTMTM00GZ0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 3750 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x35

Nexans ref. 23035AXTMTM00PZ0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 4200 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x400

Nexans ref. 23400AXTMTM00DZ0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 14320 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x400

Nexans ref. 23400AXTMTM00FZ0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 14560 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x400

Nexans ref. 23400AXTMTM00GZ0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 15075 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x400

Nexans ref. 23400AXTMTM00PZ0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 15550 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x400

Nexans ref. 23400AXTMTM00KZ0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 17530 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x50

Nexans ref. 23050AXTMTM00DZ0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 3480 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x50

Nexans ref. 23050AXTMTM00FZ0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 3825 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x50

Nexans ref. 23050AXTMTM00GZ0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 4210 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x50

Nexans ref. 23050AXTMTM00PZ0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 4685 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x50

Nexans ref. 23050AXTMTM00KZ0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 6705 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x70

Nexans ref. 23070AXTMTM00DZ0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 4210 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x70

Nexans ref. 23070AXTMTM00FZ0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 4555 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x70

Nexans ref. 23070AXTMTM00GZ0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 5040 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x70

Nexans ref. 23070AXTMTM00PZ0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 5455 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x70

Nexans ref. 23070AXTMTM00KZ0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 7730 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x95

Nexans ref. 23095AXTMTM00DZ0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 4995 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x95

Nexans ref. 23095AXTMTM00FZ0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 5405 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x95

Nexans ref. 23095AXTMTM00GZ0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 5870 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x95

Nexans ref. 23095AXTMTM00PZ0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 6350 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x95

Nexans ref. 23095AXTMTM00KZ0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 8640 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



Description

Description

Standards

  • International
    IEC 60332-1; IEC 60502-2
  • National
    ADWEA-MV-UAE

Application

These power cables are used for electricity supply in medium voltage installation system. They are well adapted to underground use in industrial application where chemical and mechanical protections are needed. This group is complying with IEC and ADWEA specs.

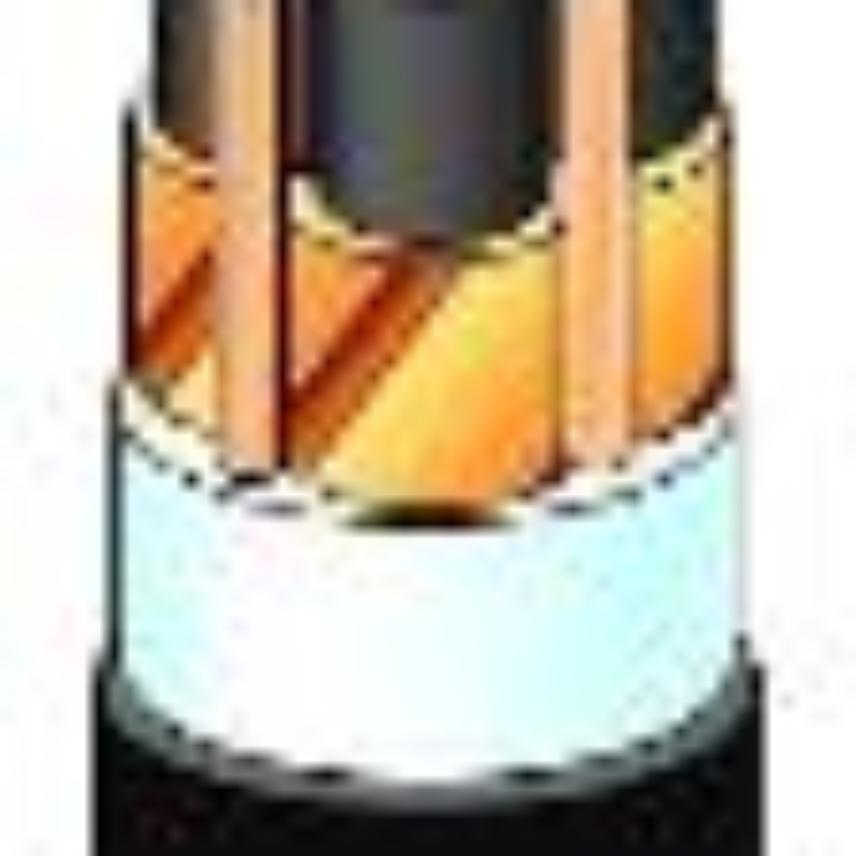

Design

1. Conductor

Stranded bare copper class 2 acc. to IEC 60228 or equivalent

2. Insulation

Triple extruded Inner semi conductive layer  - Cross Linked Polyethylene 'XLPE' - Outer semi conductive layer

3. Metalic Screen

Copper tape screen + Interstice thee copper conductor assembled with the main cores

4. Inner Sheathing or Bedding

Extruded PE

5. Armour

Galvanized Steel Tape Armour "STA"

6. Outer Sheath

Extruded Polyethylene '"PE' with outer semi conductive layer


Installation Conditions:

1.Air Temperature : 30 Deg.

2.Ground Temperature : 20 Deg

3.Soil Thermal Resistivity : 1.5 km/w

4.Depth of lay : 0.8 m

 All dimensions have tolerance +-7 %

Marking

 no. of cores x  conductor size mm2  Cu/XLPE/STA/PVC  Voltage grade V  Standard  MADE IN QATAR  QICC - Nexans  Year  Meters

Custom marking available

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Stranded class 2
Conductor shape
Circular compacted
Material of the inner semi-conductor
Semi-conducting compound
Insulation
XLPE (Cross-linked Polyethylene)
Material of the external semi-conductor
Semi-conducting compound
Screen
Copper tape
Inner sheath
Polyethylene
Armour type
Galvanized steel tapes
Outer sheath
PE
Sheath colour
Black

Dimensional characteristics

Dimensional characteristics

Number of cores
3

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
Flame retardant
IEC 60332-1
Bending factor when laying
30 (xD)
Bending factor when installed
15 (xD)
Short-circuit max. conductor temperature
250 °C

Resources

Resources

Selling & delivery Information


Note: On request we are delivering three single core laid up cables on one drum

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
