IEC MV, XLPE Insulation, CTS, Lead, PVC (3C)

Products

3x120

Nexans ref. 23120CXTVUB09DO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 7890 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x120

Nexans ref. 23120CXTVUB09EO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 8405 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x120

Nexans ref. 23120CXTVUB09GO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 9125 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x120

Nexans ref. 23120CXTVUB09HO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 9740 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x120

Nexans ref. 23120CXTVUB09JO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 12420 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x150

Nexans ref. 23150CXTVUB09DO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 9055 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x150

Nexans ref. 23150CXTVUB09EO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 9605 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x150

Nexans ref. 23150CXTVUB09GO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 10245 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x150

Nexans ref. 23150CXTVUB09HO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 12005 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x150

Nexans ref. 23150CXTVUB09JO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 13720 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x185

Nexans ref. 23185CXTVUB09DO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 10460 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x185

Nexans ref. 23185CXTVUB09EO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 11045 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x185

Nexans ref. 23185CXTVUB09GO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 12790 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x185

Nexans ref. 23185CXTVUB09HO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 13545 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x185

Nexans ref. 23185CXTVUB09JO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 15260 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x240

Nexans ref. 23240CXTVUB09DO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 12620 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x240

Nexans ref. 23240CXTVUB09EO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 14235 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x240

Nexans ref. 23240CXTVUB09GO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 15055 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x240

Nexans ref. 23240CXTVUB09HO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 15845 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x240

Nexans ref. 23240CXTVUB09JO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 17585 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x25

Nexans ref. 23025CXTVUB09DO0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 3260 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x25

Nexans ref. 23025CXTVUB09EO0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 3980 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x25

Nexans ref. 23025CXTVUB09GO0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 4600 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x300

Nexans ref. 23300CXTVUB09DO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 16530 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x300

Nexans ref. 23300CXTVUB09EO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 17045 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x300

Nexans ref. 23300CXTVUB09GO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 17870 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x300

Nexans ref. 23300CXTVUB09HO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 18520 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x300

Nexans ref. 23300CXTVUB09JO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 20135 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x35

Nexans ref. 23035CXTVUB09DO0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 3705 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x35

Nexans ref. 23035CXTVUB09EO0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 4600 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x35

Nexans ref. 23035CXTVUB09GO0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 5080 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x35

Nexans ref. 23035CXTVUB09HO0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 5695 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x400

Nexans ref. 23400CXTVUB09DO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 19755 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x400

Nexans ref. 23400CXTVUB09EO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 20100 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x400

Nexans ref. 23400CXTVUB09GO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 20785 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x400

Nexans ref. 23400CXTVUB09HO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 21435 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x400

Nexans ref. 23400CXTVUB09JO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 23015 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x50

Nexans ref. 23050CXTVUB09DO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 4720 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x50

Nexans ref. 23050CXTVUB09EO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 5145 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x50

Nexans ref. 23050CXTVUB09GO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 5695 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x50

Nexans ref. 23050CXTVUB09HO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 6310 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x50

Nexans ref. 23050CXTVUB09JO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 8610 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x70

Nexans ref. 23070CXTVUB09DO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 5695 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x70

Nexans ref. 23070CXTVUB09EO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 6175 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x70

Nexans ref. 23070CXTVUB09GO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 6825 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x70

Nexans ref. 23070CXTVUB09HO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 7375 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x70

Nexans ref. 23070CXTVUB09JO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 9945 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x95

Nexans ref. 23095CXTVUB09DO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 6860 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x95

Nexans ref. 23095CXTVUB09EO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 7410 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x95

Nexans ref. 23095CXTVUB09GO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 8030 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x95

Nexans ref. 23095CXTVUB09HO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 8715 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x95

Nexans ref. 23095CXTVUB09JO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 11275 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



Description

Description

Standards

  • International
    IEC 60332-1; IEC 60502-2

Application

These power cables are used for electricity supply in medium voltage installation system. They are well adapted to underground use in industrial application where chemical and mechanical protections are needed.  This group is complying with IEC 60502-2.

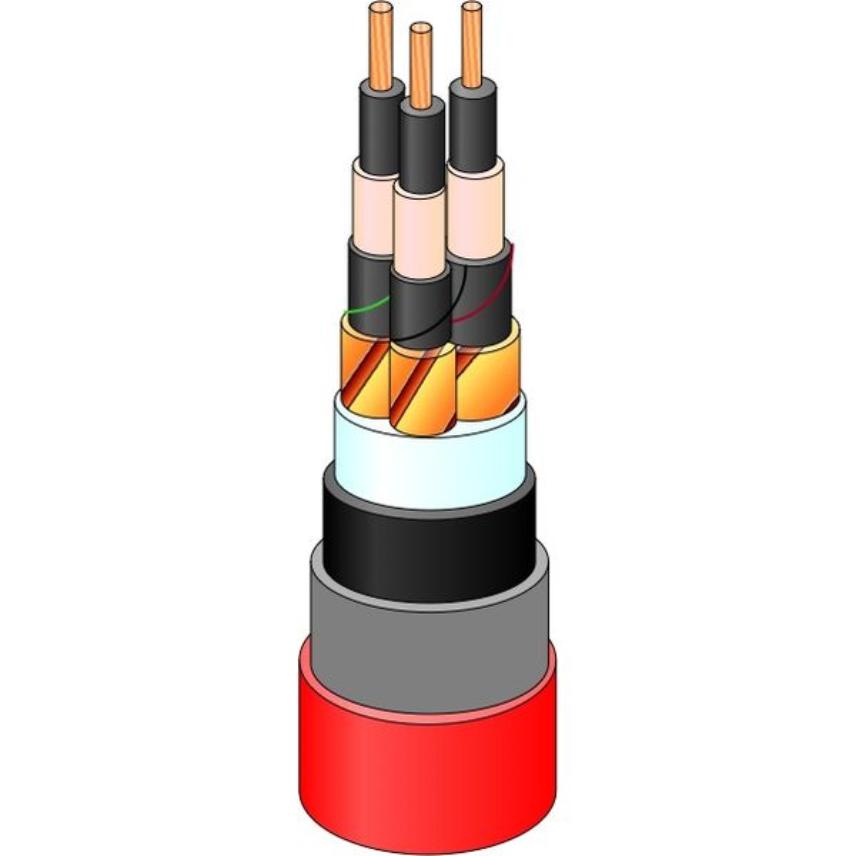

Design

1. Conductor

Stranded bare copper class 2 acc. to IEC 60228 or equivalent

2. Insulation

Triple extruded Inner semi conductive layer  - Cross Linked Polyethylene 'XLPE' - Outer semi conductive layer

3. Metalic Screen

Copper tape screen

4. Metal Sheath

Extruded Lead

5. Outer Sheath

Polyvinyl Chloride 'PVC'

 Options :

      - Flame retardant : 'CAT A, CAT B, CATC' to IEC60332 or equivalent.

      - Ozone resistant.

      - Oil resistant.

      - Anti termite.

Sheathing layers can be Halogen Free Flame Retardant "HFFR", or Polyethylene '"PE'


Installation Conditions:

1.Air Temperature : 30 Deg.

2.Ground Temperature : 20 Deg

3.Soil Thermal Resistivity : 1.5 km/w

4.Depth of lay : 0.8 m

 All dimensions have tolerance +-7 %

Marking

 no. of cores x  conductor size mm2  Cu/XLPE/LS/PVC  Voltage grade V  Standard  MADE IN QATAR  QICC - Nexans  Year  Meters

Custom marking available

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Stranded class 2
Conductor shape
Circular compacted
Material of the inner semi-conductor
Semi-conducting compound
Insulation
XLPE (Cross-linked Polyethylene)
Material of the external semi-conductor
Semi-conducting compound
Screen
Copper tape
Inner sheath
PVC
Lead Sheath
Yes
Armour type
Unarmoured
Outer sheath
PVC compound
Sheath colour
Black

Dimensional characteristics

Dimensional characteristics

Number of cores
3

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Flame retardant
IEC 60332-1
Bending factor when laying
40 (xD)
Bending factor when installed
20 (xD)

Resources

Resources

Selling & delivery Information


Note: On request we are delivering three single core laid up cables on one drum
