IEC MV, XLPE Insulation, CWS, Lead, STA, PVC (3C)

IEC MV, XLPE Insulation, CWS, Lead, STA, PVC (3C)

IEC MV, XLPE Insulation, CWS, Lead, STA, PVC (3C)

Multi-core XLPE-insulated cables with PVC sheath

Read more
Contact us

Products

Actions
Filters

  • products

3x120

Nexans ref. 23120CXCVTB09DO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 11300 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x120

Nexans ref. 23120CXCVTB09EO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 12000 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x120

Nexans ref. 23120CXCVTB09GO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 13200 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x120

Nexans ref. 23120CXCVTB09HO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 14300 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x120

Nexans ref. 23120CXCVTB09JO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 19200 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x150

Nexans ref. 23150CXCVTB09DO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 12915 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x150

Nexans ref. 23150CXCVTB09EO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 13720 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x150

Nexans ref. 23150CXCVTB09GO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 14800 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x150

Nexans ref. 23150CXCVTB09HO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 17140 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x150

Nexans ref. 23150CXCVTB09JO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 20565 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x185

Nexans ref. 23185CXCVTB09DO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 13200 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x185

Nexans ref. 23185CXCVTB09EO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 14500 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x185

Nexans ref. 23185CXCVTB09GO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 15220 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x185

Nexans ref. 23185CXCVTB09HO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 17800 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x185

Nexans ref. 23185CXCVTB09JO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 21000 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x240

Nexans ref. 23240CXCVTB09DO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 14940 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x240

Nexans ref. 23240CXCVTB09EO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 16840 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x240

Nexans ref. 23240CXCVTB09GO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 17820 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x240

Nexans ref. 23240CXCVTB09HO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 18730 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x240

Nexans ref. 23240CXCVTB09JO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 21820 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x25

Nexans ref. 23025CXCVTB09DO0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 5200 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x25

Nexans ref. 23025CXCVTB09EO0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 6440 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x25

Nexans ref. 23025CXCVTB09GO0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 7440 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x300

Nexans ref. 23300CXCVTB09DO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 19545 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x300

Nexans ref. 23300CXCVTB09EO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 20160 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x300

Nexans ref. 23300CXCVTB09GO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 21120 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x300

Nexans ref. 23300CXCVTB09HO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 21885 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x300

Nexans ref. 23300CXCVTB09JO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 24985 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x35

Nexans ref. 23035CXCVTB09DO0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 5940 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x35

Nexans ref. 23035CXCVTB09EO0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 7360 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x35

Nexans ref. 23035CXCVTB09GO0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 8160 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x35

Nexans ref. 23035CXCVTB09HO0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 9140 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x400

Nexans ref. 23400CXCVTB09DO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 23365 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x400

Nexans ref. 23400CXCVTB09EO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 23745 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x400

Nexans ref. 23400CXCVTB09GO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 24580 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x400

Nexans ref. 23400CXCVTB09HO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 25350 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x400

Nexans ref. 23400CXCVTB09JO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 28575 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x50

Nexans ref. 23050CXCVTB09DO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 7580 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x50

Nexans ref. 23050CXCVTB09EO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 8320 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x50

Nexans ref. 23050CXCVTB09GO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 9160 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x50

Nexans ref. 23050CXCVTB09HO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 10190 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x50

Nexans ref. 23050CXCVTB09JO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 14580 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x70

Nexans ref. 23070CXCVTB09DO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 9170 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x70

Nexans ref. 23070CXCVTB09EO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 9900 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x70

Nexans ref. 23070CXCVTB09GO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 10960 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x70

Nexans ref. 23070CXCVTB09HO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 11860 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x70

Nexans ref. 23070CXCVTB09JO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 16800 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x95

Nexans ref. 23095CXCVTB09DO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 10860 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x95

Nexans ref. 23095CXCVTB09EO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 11760 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x95

Nexans ref. 23095CXCVTB09GO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 12760 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x95

Nexans ref. 23095CXCVTB09HO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 13800 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x95

Nexans ref. 23095CXCVTB09JO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 18780 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



Description

Description

Standards

  • International
    IEC 60332-1; IEC 60502-2

Application

These power cables are used for electricity supply in medium voltage installation system. They are well adapted to underground use in industrial application where chemical and mechanical protections are needed.  This group is complying with IEC 60502-2.

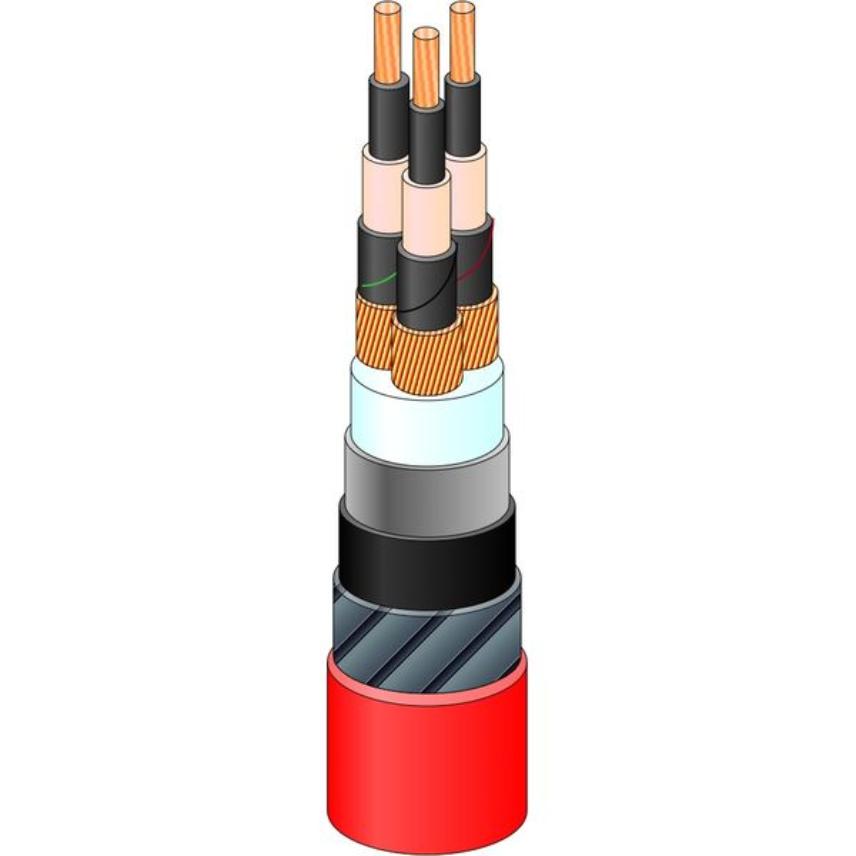

Design

1. Conductor

Stranded bare copper class 2 acc. to IEC 60228 or equivalent

2. Insulation

Triple extruded Inner semi conductive layer  - Cross Linked Polyethylene 'XLPE' - Outer semi conductive layer

3. Metalic Screen

Copper wire screen with open helix copper tape

4. Metalic Sheathing

Extruded Lead

5. Armour

Galvanized Steel Tape Armour "STA"

6. Outer Sheath

Polyvinyl Chloride 'PVC'

 Options :

      - Flame retardant : 'CAT A, CAT B, CATC' to IEC60332 or equivalent.

      - Ozone resistant.

      - Oil resistant.

      - Anti termite.

Sheathing layers can be Halogen Free Flame Retardant "HFFR", or Polyethylene '"PE'


Installation Conditions:

1.Air Temperature : 30 Deg.

2.Ground Temperature : 20 Deg

3.Soil Thermal Resistivity : 1.5 km/w

4.Depth of lay : 0.8 m

 All dimensions have tolerance +-7 %

Marking

 no. of cores x  conductor size mm2  Cu/XLPE/LS/STA/PVC  Voltage grade V  Standard  MADE IN QATAR  QICC - Nexans  Year  Meters

Custom marking available

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Stranded class 2
Conductor shape
Circular compacted
Material of the inner semi-conductor
Semi-conducting compound
Insulation
XLPE (Cross-linked Polyethylene)
Material of the external semi-conductor
Semi-conducting compound
Screen
Copper wire + copper tape
Inner sheath
PVC
Lead Sheath
Yes
Separator
Tape or sheath
Armour type
Galvanized steel tapes
Outer sheath
PVC compound
Sheath colour
Black

Dimensional characteristics

Dimensional characteristics

Number of cores
3

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Flame retardant
IEC 60332-1
Bending factor when laying
30 (xD)
Bending factor when installed
15 (xD)

Resources

Resources

Selling & delivery Information


Note: On request we are delivering three single core laid up cables on one drum

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
