IEC MV, XLPE Insulation, CTS, Lead, SWA, PVC (3C)

IEC MV, XLPE Insulation, CTS, Lead, SWA, PVC (3C)

IEC MV, XLPE Insulation, CTS, Lead, SWA, PVC (3C)

Multi-core XLPE-insulated cables with PVC sheath

Read more
Contact us

Products

Actions
Filters

  • products

3x120

Nexans ref. 23120CXTVSB09DO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 11265 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x120

Nexans ref. 23120CXTVSB09EO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 12000 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x120

Nexans ref. 23120CXTVSB09GO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 13010 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x120

Nexans ref. 23120CXTVSB09HO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 13930 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x120

Nexans ref. 23120CXTVSB09JO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 17730 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x150

Nexans ref. 23150CXTVSB09DO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 12925 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x150

Nexans ref. 23150CXTVSB09EO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 13715 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x150

Nexans ref. 23150CXTVSB09GO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 14640 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x150

Nexans ref. 23150CXTVSB09HO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 17140 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x150

Nexans ref. 23150CXTVSB09JO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 19595 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x185

Nexans ref. 23185CXTVSB09DO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 14935 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x185

Nexans ref. 23185CXTVSB09EO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 15735 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x185

Nexans ref. 23185CXTVSB09GO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 18270 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x185

Nexans ref. 23185CXTVSB09HO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 19330 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x185

Nexans ref. 23185CXTVSB09JO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 21830 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x240

Nexans ref. 23240CXTVSB09DO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 18055 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x240

Nexans ref. 23240CXTVSB09EO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 20350 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x240

Nexans ref. 23240CXTVSB09GO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 21540 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x240

Nexans ref. 23240CXTVSB09HO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 22645 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x240

Nexans ref. 23240CXTVSB09JO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 25125 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x25

Nexans ref. 23025CXTVSB09DO0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 4645 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x25

Nexans ref. 23025CXTVSB09EO0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 5685 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x25

Nexans ref. 23025CXTVSB09GO0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 6570 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x300

Nexans ref. 23300CXTVSB09DO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 23630 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x300

Nexans ref. 23300CXTVSB09EO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 24370 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x300

Nexans ref. 23300CXTVSB09GO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 25530 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x300

Nexans ref. 23300CXTVSB09HO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 26455 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x300

Nexans ref. 23300CXTVSB09JO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 28765 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x35

Nexans ref. 23035CXTVSB09DO0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 5295 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x35

Nexans ref. 23035CXTVSB09EO0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 6565 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x35

Nexans ref. 23035CXTVSB09GO0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 7250 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x35

Nexans ref. 23035CXTVSB09HO0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 8110 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x400

Nexans ref. 23400CXTVSB09DO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 28245 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x400

Nexans ref. 23400CXTVSB09EO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 28705 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x400

Nexans ref. 23400CXTVSB09GO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 29705 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x400

Nexans ref. 23400CXTVSB09HO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 30650 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x400

Nexans ref. 23400CXTVSB09JO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 32900 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x50

Nexans ref. 23050CXTVSB09DO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 6740 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x50

Nexans ref. 23050CXTVSB09EO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 7390 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x50

Nexans ref. 23050CXTVSB09GO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 8145 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x50

Nexans ref. 23050CXTVSB09HO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 9020 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x50

Nexans ref. 23050CXTVSB09JO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 12300 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x70

Nexans ref. 23070CXTVSB09DO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 8145 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x70

Nexans ref. 23070CXTVSB09EO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 8795 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x70

Nexans ref. 23070CXTVSB09GO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 9755 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x70

Nexans ref. 23070CXTVSB09HO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 10535 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x70

Nexans ref. 23070CXTVSB09JO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 14210 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x95

Nexans ref. 23095CXTVSB09DO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 9770 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x95

Nexans ref. 23095CXTVSB09EO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 10590 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x95

Nexans ref. 23095CXTVSB09GO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 11485 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x95

Nexans ref. 23095CXTVSB09HO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 12445 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x95

Nexans ref. 23095CXTVSB09JO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 16105 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



Description

Description

Standards

  • Product
    IEC 60502-2
  • Test
    IEC 60332-1

Application

These power cables are used for electricity supply in medium voltage installation system. They are well adapted to underground use in industrial application where chemical and mechanical protections are needed.  This group is complying with IEC 60502-2.

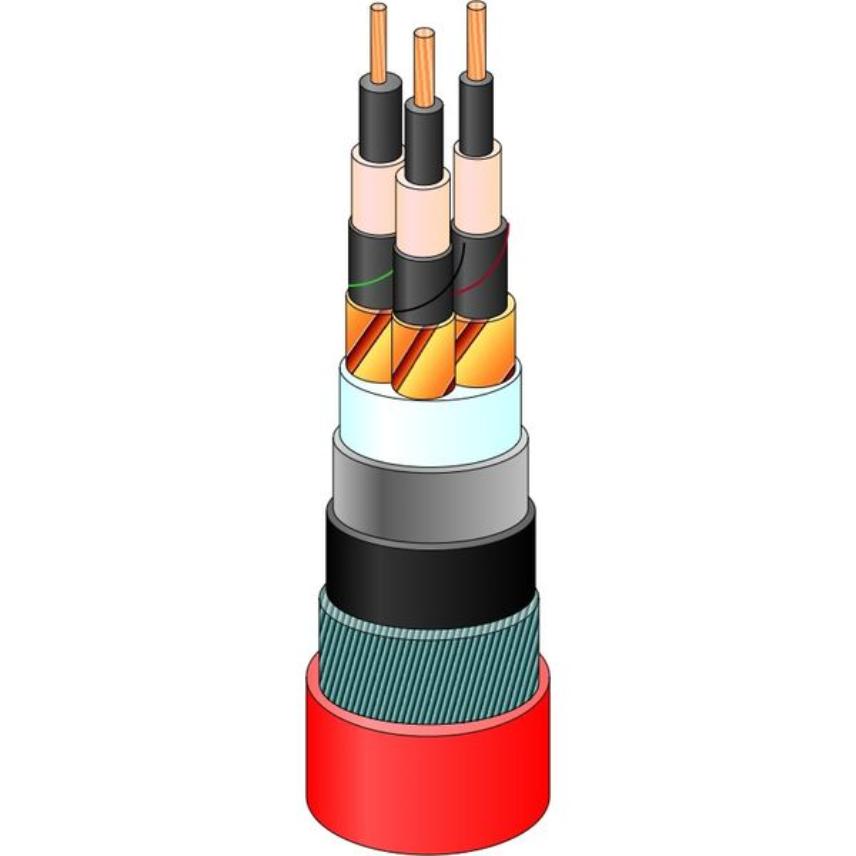

Design

1. Conductor

Stranded bare copper class 2 acc. to IEC 60228 or equivalent

2. Insulation

Triple extruded Inner semi conductive layer  - Cross Linked Polyethylene 'XLPE' - Outer semi conductive layer

3. Metalic Screen

Copper tape screen

4. Metal Sheath

Extruded Lead

5. Armour

Galvanized Steel Wire Armour "SWA"

6. Outer Sheath

Polyvinyl Chloride 'PVC'

 Options :

      - Flame retardant : 'CAT A, CAT B, CATC' to IEC60332 or equivalent.

      - Ozone resistant.

      - Oil resistant.

      - Anti termite.

Sheathing layers can be Halogen Free Flame Retardant "HFFR", or Polyethylene '"PE'


Installation Conditions:

1.Air Temperature : 30 Deg.

2.Ground Temperature : 20 Deg

3.Soil Thermal Resistivity : 1.5 km/w

4.Depth of lay : 0.8 m

 All dimensions have tolerance +-7 %

Marking

 no. of cores x  conductor size mm2  Cu/XLPE/LS/SWA/PVC  Voltage grade V  Standard  MADE IN QATAR  QICC - Nexans  Year  Meters

Custom marking available

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Stranded class 2
Conductor shape
Circular compacted
Material of the inner semi-conductor
Semi-conducting compound
Insulation
XLPE (Cross-linked Polyethylene)
Material of the external semi-conductor
Semi-conducting compound
Screen
Copper tape
Inner sheath
PVC
Lead Sheath
Yes
Separator
Tape or sheath
Armour type
Galvanized steel wires
Outer sheath
PVC compound
Sheath colour
Black

Dimensional characteristics

Dimensional characteristics

Number of cores
3

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Flame retardant
IEC 60332-1
Bending factor when laying
40 (xD)
Bending factor when installed
20 (xD)

Resources

Resources

Selling & delivery Information


Note: On request we are delivering three single core laid up cables on one drum

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
