IEC MV, XLPE Insulation, CWS, ATA, PVC (1C)

Products

3x120

Nexans ref. 23120CXCVTB09DD0

  • Conductor cross-section: 120 mm²
  • Screen section: 16 mm²
  • Approximate weight: 6255 kg/km



3x120

Nexans ref. 23120CXCVTB09ED0

  • Conductor cross-section: 120 mm²
  • Screen section: 16 mm²
  • Approximate weight: 6665 kg/km



3x120

Nexans ref. 23120CXCVTB09GD0

  • Conductor cross-section: 120 mm²
  • Screen section: 16 mm²
  • Approximate weight: 7220 kg/km



3x120

Nexans ref. 23120CXCVTB09HD0

  • Conductor cross-section: 120 mm²
  • Screen section: 16 mm²
  • Approximate weight: 7730 kg/km



3x120

Nexans ref. 23120CXCVTB09JD0

  • Conductor cross-section: 120 mm²
  • Screen section: 16 mm²
  • Approximate weight: 10330 kg/km



3x150

Nexans ref. 23150CXCVTB09DD0

  • Conductor cross-section: 150 mm²
  • Screen section: 25 mm²
  • Approximate weight: 7175 kg/km



3x150

Nexans ref. 23150CXCVTB09ED0

  • Conductor cross-section: 150 mm²
  • Screen section: 25 mm²
  • Approximate weight: 7620 kg/km



3x150

Nexans ref. 23150CXCVTB09GD0

  • Conductor cross-section: 150 mm²
  • Screen section: 25 mm²
  • Approximate weight: 8220 kg/km



3x150

Nexans ref. 23150CXCVTB09HD0

  • Conductor cross-section: 150 mm²
  • Screen section: 25 mm²
  • Approximate weight: 9520 kg/km



3x150

Nexans ref. 23150CXCVTB09JD0

  • Conductor cross-section: 150 mm²
  • Screen section: 25 mm²
  • Approximate weight: 11425 kg/km



3x185

Nexans ref. 23185CXCVTB09DD0

  • Conductor cross-section: 185 mm²
  • Screen section: 25 mm²
  • Approximate weight: 8290 kg/km



3x185

Nexans ref. 23185CXCVTB09ED0

  • Conductor cross-section: 185 mm²
  • Screen section: 25 mm²
  • Approximate weight: 8740 kg/km



3x185

Nexans ref. 23185CXCVTB09GD0

  • Conductor cross-section: 185 mm²
  • Screen section: 25 mm²
  • Approximate weight: 10145 kg/km



3x185

Nexans ref. 23185CXCVTB09HD0

  • Conductor cross-section: 185 mm²
  • Screen section: 25 mm²
  • Approximate weight: 10730 kg/km



3x185

Nexans ref. 23185CXCVTB09JD0

  • Conductor cross-section: 185 mm²
  • Screen section: 25 mm²
  • Approximate weight: 12730 kg/km



3x240

Nexans ref. 23240CXCVTB09DD0

  • Conductor cross-section: 240 mm²
  • Screen section: 25 mm²
  • Approximate weight: 9960 kg/km



3x240

Nexans ref. 23240CXCVTB09ED0

  • Conductor cross-section: 240 mm²
  • Screen section: 25 mm²
  • Approximate weight: 11225 kg/km



3x240

Nexans ref. 23240CXCVTB09GD0

  • Conductor cross-section: 240 mm²
  • Screen section: 25 mm²
  • Approximate weight: 11880 kg/km



3x240

Nexans ref. 23240CXCVTB09HD0

  • Conductor cross-section: 240 mm²
  • Screen section: 25 mm²
  • Approximate weight: 12485 kg/km



3x240

Nexans ref. 23240CXCVTB09JD0

  • Conductor cross-section: 240 mm²
  • Screen section: 25 mm²
  • Approximate weight: 14545 kg/km



3x25

Nexans ref. 23025CXCVTB09DD0

  • Conductor cross-section: 25 mm²
  • Screen section: 16 mm²
  • Approximate weight: 2600 kg/km



3x25

Nexans ref. 23025CXCVTB09ED0

  • Conductor cross-section: 25 mm²
  • Screen section: 16 mm²
  • Approximate weight: 3220 kg/km



3x25

Nexans ref. 23025CXCVTB09GD0

  • Conductor cross-section: 25 mm²
  • Screen section: 16 mm²
  • Approximate weight: 3720 kg/km



3x300

Nexans ref. 23300CXCVTB09DD0

  • Conductor cross-section: 300 mm²
  • Screen section: 25 mm²
  • Approximate weight: 13030 kg/km



3x300

Nexans ref. 23300CXCVTB09ED0

  • Conductor cross-section: 300 mm²
  • Screen section: 25 mm²
  • Approximate weight: 13440 kg/km



3x300

Nexans ref. 23300CXCVTB09GD0

  • Conductor cross-section: 300 mm²
  • Screen section: 25 mm²
  • Approximate weight: 14080 kg/km



3x300

Nexans ref. 23300CXCVTB09HD0

  • Conductor cross-section: 300 mm²
  • Screen section: 25 mm²
  • Approximate weight: 14590 kg/km



3x300

Nexans ref. 23300CXCVTB09JD0

  • Conductor cross-section: 300 mm²
  • Screen section: 25 mm²
  • Approximate weight: 16655 kg/km



3x35

Nexans ref. 23035CXCVTB09DD0

  • Conductor cross-section: 35 mm²
  • Screen section: 16 mm²
  • Approximate weight: 2970 kg/km



3x35

Nexans ref. 23035CXCVTB09ED0

  • Conductor cross-section: 35 mm²
  • Screen section: 16 mm²
  • Approximate weight: 3680 kg/km



3x35

Nexans ref. 23035CXCVTB09GD0

  • Conductor cross-section: 35 mm²
  • Screen section: 16 mm²
  • Approximate weight: 4080 kg/km



3x35

Nexans ref. 23035CXCVTB09HD0

  • Conductor cross-section: 35 mm²
  • Screen section: 16 mm²
  • Approximate weight: 4570 kg/km



3x400

Nexans ref. 23400CXCVTB09DD0

  • Conductor cross-section: 400 mm²
  • Screen section: 35 mm²
  • Approximate weight: 15575 kg/km



3x400

Nexans ref. 23400CXCVTB09ED0

  • Conductor cross-section: 400 mm²
  • Screen section: 35 mm²
  • Approximate weight: 15830 kg/km



3x400

Nexans ref. 23400CXCVTB09GD0

  • Conductor cross-section: 400 mm²
  • Screen section: 35 mm²
  • Approximate weight: 16385 kg/km



3x400

Nexans ref. 23400CXCVTB09HD0

  • Conductor cross-section: 400 mm²
  • Screen section: 35 mm²
  • Approximate weight: 16900 kg/km



3x400

Nexans ref. 23400CXCVTB09JD0

  • Conductor cross-section: 400 mm²
  • Screen section: 35 mm²
  • Approximate weight: 19050 kg/km



3x50

Nexans ref. 23050CXCVTB09DD0

  • Conductor cross-section: 50 mm²
  • Screen section: 16 mm²
  • Approximate weight: 3790 kg/km



3x50

Nexans ref. 23050CXCVTB09ED0

  • Conductor cross-section: 50 mm²
  • Screen section: 16 mm²
  • Approximate weight: 4160 kg/km



3x50

Nexans ref. 23050CXCVTB09GD0

  • Conductor cross-section: 50 mm²
  • Screen section: 16 mm²
  • Approximate weight: 4580 kg/km



3x50

Nexans ref. 23050CXCVTB09HD0

  • Conductor cross-section: 50 mm²
  • Screen section: 16 mm²
  • Approximate weight: 5095 kg/km



3x50

Nexans ref. 23050CXCVTB09JD0

  • Conductor cross-section: 50 mm²
  • Screen section: 16 mm²
  • Approximate weight: 7290 kg/km



3x70

Nexans ref. 23070CXCVTB09DD0

  • Conductor cross-section: 70 mm²
  • Screen section: 16 mm²
  • Approximate weight: 4585 kg/km



3x70

Nexans ref. 23070CXCVTB09ED0

  • Conductor cross-section: 70 mm²
  • Screen section: 16 mm²
  • Approximate weight: 4950 kg/km



3x70

Nexans ref. 23070CXCVTB09GD0

  • Conductor cross-section: 70 mm²
  • Screen section: 16 mm²
  • Approximate weight: 5480 kg/km



3x70

Nexans ref. 23070CXCVTB09HD0

  • Conductor cross-section: 70 mm²
  • Screen section: 16 mm²
  • Approximate weight: 5930 kg/km



3x70

Nexans ref. 23070CXCVTB09JD0

  • Conductor cross-section: 70 mm²
  • Screen section: 16 mm²
  • Approximate weight: 8400 kg/km



3x95

Nexans ref. 23095CXCVTB09DD0

  • Conductor cross-section: 95 mm²
  • Screen section: 16 mm²
  • Approximate weight: 5430 kg/km



3x95

Nexans ref. 23095CXCVTB09ED0

  • Conductor cross-section: 95 mm²
  • Screen section: 16 mm²
  • Approximate weight: 5880 kg/km



3x95

Nexans ref. 23095CXCVTB09GD0

  • Conductor cross-section: 95 mm²
  • Screen section: 16 mm²
  • Approximate weight: 6380 kg/km



3x95

Nexans ref. 23095CXCVTB09HD0

  • Conductor cross-section: 95 mm²
  • Screen section: 16 mm²
  • Approximate weight: 6900 kg/km



3x95

Nexans ref. 23095CXCVTB09JD0

  • Conductor cross-section: 95 mm²
  • Screen section: 16 mm²
  • Approximate weight: 9390 kg/km



Description

Description

Standards

  • Product
    IEC 60502-2
  • Test
    IEC 60332-1

Application

These power cables are used for electricity supply in medium voltage installation system. They are well adapted to underground use in industrial application where chemical and mechanical protections are needed.  This group is complying with IEC 60502-2 .

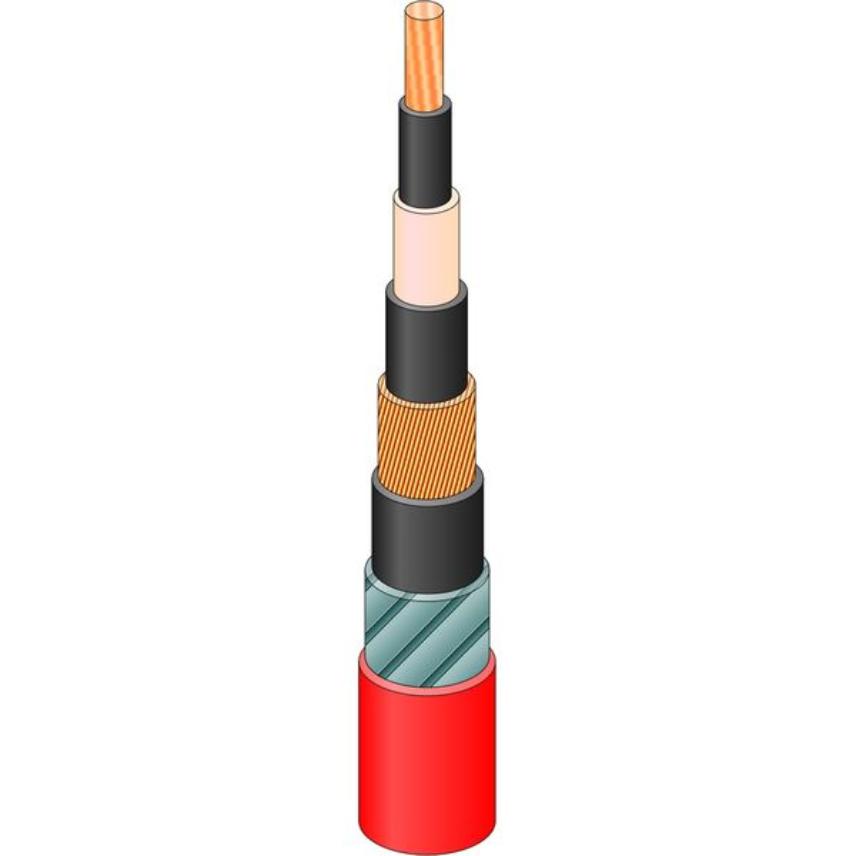

Design

1. Conductor

Stranded bare copper class 2 acc. to IEC 60228 or equivalent

2. Insulation

Triple extruded Inner semi conductive layer  - Cross Linked Polyethylene 'XLPE' - Outer semi conductive layer

3. Metalic Screen

Copper wire screen with open helix copper tape

4. Inner Sheathing or Bedding

Extruded PVC

5. Armour

Galvanized Steel Tape Armour "STA"

6. Outer Sheath

Polyvinyl Chloride 'PVC'

 Options :

      - Flame retardant : 'CAT A, CAT B, CATC' to IEC60332 or equivalent.

      - Ozone resistant.

      - Oil resistant.

      - Anti termite.

Sheathing layers can be Halogen Free Flame Retardant "HFFR", or Polyethylene '"PE'


Installation Conditions:

1.Air Temperature : 30 Deg.

2.Ground Temperature : 20 Deg

3.Soil Thermal Resistivity : 1.5 km/w

4.Depth of lay : 0.8 m

 All dimensions have tolerance +-7 %

Marking

 no. of cores x  conductor size mm2  Cu/XLPE/STA/PVC  Voltage grade V  Standard  MADE IN QATAR  QICC - Nexans  Year  Meters

Custom marking available

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Stranded class 2
Conductor shape
Circular compacted
Material of the inner semi-conductor
Semi-conducting compound
Insulation
XLPE (Cross-linked Polyethylene)
Material of the external semi-conductor
Semi-conducting compound
Screen
Copper wire + copper tape
Inner sheath
PVC
Armour type
Galvanized steel tapes
Outer sheath
PVC compound
Sheath colour
Black

Dimensional characteristics

Dimensional characteristics

Number of cores
3

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
Flame retardant
IEC 60332-1
Bending factor when laying
30 (xD)
Bending factor when installed
15 (xD)
Short-circuit max. conductor temperature
250 °C

Resources

Resources

Selling & delivery Information


Note: On request we are delivering three single core laid up cables on one drum
