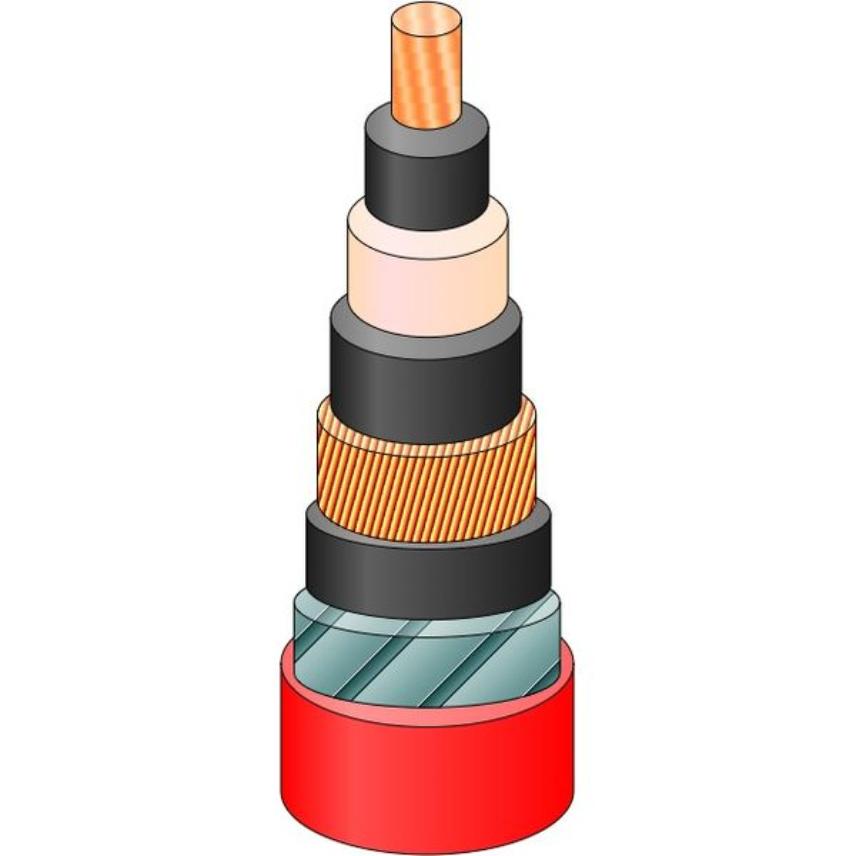

IEC MV, XLPE Insulation, CWS, ATA, PVC (1C)

Products

1x120

Nexans ref. 21120CXCVEB09DD0

  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 31.0 mm
  • Approximate weight: 1950 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x120

Nexans ref. 21120CXCVEB09ED0

  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 32.0 mm
  • Approximate weight: 2065 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x120

Nexans ref. 21120CXCVEB09GD0

  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 35.0 mm
  • Approximate weight: 2170 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x120

Nexans ref. 21120CXCVEB09HD0

  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 37.0 mm
  • Approximate weight: 2290 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x120

Nexans ref. 21120CXCVEB09JD0

  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 40.0 mm
  • Approximate weight: 2565 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x150

Nexans ref. 21150CXCVEB09DD0

  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 32.0 mm
  • Approximate weight: 2320 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x150

Nexans ref. 21150CXCVEB09ED0

  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 33.0 mm
  • Approximate weight: 2435 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x150

Nexans ref. 21150CXCVEB09GD0

  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 36.0 mm
  • Approximate weight: 2530 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x150

Nexans ref. 21150CXCVEB09HD0

  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 38.0 mm
  • Approximate weight: 2700 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x150

Nexans ref. 21150CXCVEB09JD0

  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 41.0 mm
  • Approximate weight: 2950 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x185

Nexans ref. 21185CXCVEB09DD0

  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 34.0 mm
  • Approximate weight: 2680 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x185

Nexans ref. 21185CXCVEB09ED0

  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 35.0 mm
  • Approximate weight: 2865 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x185

Nexans ref. 21185CXCVEB09GD0

  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 38.0 mm
  • Approximate weight: 2910 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x185

Nexans ref. 21185CXCVEB09HD0

  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 40.0 mm
  • Approximate weight: 3070 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x185

Nexans ref. 21185CXCVEB09JD0

  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 44.0 mm
  • Approximate weight: 3555 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x240

Nexans ref. 21240CXCVEB09DD0

  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 37.0 mm
  • Approximate weight: 3300 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x240

Nexans ref. 21240CXCVEB09ED0

  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 38.0 mm
  • Approximate weight: 3420 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x240

Nexans ref. 21240CXCVEB09GD0

  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 40.0 mm
  • Approximate weight: 3460 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x240

Nexans ref. 21240CXCVEB09HD0

  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 43.0 mm
  • Approximate weight: 3630 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x240

Nexans ref. 21240CXCVEB09JD0

  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 47.0 mm
  • Approximate weight: 4070 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x25

Nexans ref. 21025CXCVEB09DD0

  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 23.0 mm
  • Approximate weight: 880 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x25

Nexans ref. 21025CXCVEB09ED0

  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 24.0 mm
  • Approximate weight: 950 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x25

Nexans ref. 21025CXCVEB09GD0

  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 26.0 mm
  • Approximate weight: 1035 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x300

Nexans ref. 21300CXCVEB09DD0

  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 41.0 mm
  • Approximate weight: 3980 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x300

Nexans ref. 21300CXCVEB09ED0

  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 41.0 mm
  • Approximate weight: 4045 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x300

Nexans ref. 21300CXCVEB09GD0

  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 43.0 mm
  • Approximate weight: 4115 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x300

Nexans ref. 21300CXCVEB09HD0

  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 46.0 mm
  • Approximate weight: 4420 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x300

Nexans ref. 21300CXCVEB09JD0

  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 50.0 mm
  • Approximate weight: 4760 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x35

Nexans ref. 21035CXCVEB09DD0

  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 24.0 mm
  • Approximate weight: 1010 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x35

Nexans ref. 21035CXCVEB09ED0

  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 25.0 mm
  • Approximate weight: 1075 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x35

Nexans ref. 21035CXCVEB09GD0

  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 28.0 mm
  • Approximate weight: 1175 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x35

Nexans ref. 21035CXCVEB09HD0

  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 30.0 mm
  • Approximate weight: 1270 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x400

Nexans ref. 21400CXCVEB09DD0

  • Conductor cross-section: 400 mm²
  • Nominal outer diameter: 45.0 mm
  • Approximate weight: 4960 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x400

Nexans ref. 21400CXCVEB09ED0

  • Conductor cross-section: 400 mm²
  • Nominal outer diameter: 44.0 mm
  • Approximate weight: 4885 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x400

Nexans ref. 21400CXCVEB09GD0

  • Conductor cross-section: 400 mm²
  • Nominal outer diameter: 49.0 mm
  • Approximate weight: 5255 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x400

Nexans ref. 21400CXCVEB09HD0

  • Conductor cross-section: 400 mm²
  • Nominal outer diameter: 50.0 mm
  • Approximate weight: 5440 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x400

Nexans ref. 21400CXCVEB09JD0

  • Conductor cross-section: 400 mm²
  • Nominal outer diameter: 53.0 mm
  • Approximate weight: 5640 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x50

Nexans ref. 21050CXCVEB09DD0

  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 26.0 mm
  • Approximate weight: 1160 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x50

Nexans ref. 21050CXCVEB09ED0

  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 27.0 mm
  • Approximate weight: 1235 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x50

Nexans ref. 21050CXCVEB09GD0

  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 29.0 mm
  • Approximate weight: 1330 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x50

Nexans ref. 21050CXCVEB09HD0

  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 31.0 mm
  • Approximate weight: 1440 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x50

Nexans ref. 21050CXCVEB09JD0

  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 34.0 mm
  • Approximate weight: 1800 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x500

Nexans ref. 21500CXCVEB09DD0

  • Conductor cross-section: 500 mm²
  • Nominal outer diameter: 49.0 mm
  • Approximate weight: 6250 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x500

Nexans ref. 21500CXCVEB09ED0

  • Conductor cross-section: 500 mm²
  • Nominal outer diameter: 49.0 mm
  • Approximate weight: 6210 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x500

Nexans ref. 21500CXCVEB09GD0

  • Conductor cross-section: 500 mm²
  • Nominal outer diameter: 51.0 mm
  • Approximate weight: 6300 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x500

Nexans ref. 21500CXCVEB09HD0

  • Conductor cross-section: 500 mm²
  • Nominal outer diameter: 53.0 mm
  • Approximate weight: 6510 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x500

Nexans ref. 21500CXCVEB09JD0

  • Conductor cross-section: 500 mm²
  • Nominal outer diameter: 57.0 mm
  • Approximate weight: 6795 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x630

Nexans ref. 21630CXCVEB09DD0

  • Conductor cross-section: 630 mm²
  • Nominal outer diameter: 53.0 mm
  • Approximate weight: 7570 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x630

Nexans ref. 21630CXCVEB09ED0

  • Conductor cross-section: 630 mm²
  • Nominal outer diameter: 53.0 mm
  • Approximate weight: 7520 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x630

Nexans ref. 21630CXCVEB09GD0

  • Conductor cross-section: 630 mm²
  • Nominal outer diameter: 55.0 mm
  • Approximate weight: 7610 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x630

Nexans ref. 21630CXCVEB09HD0

  • Conductor cross-section: 630 mm²
  • Nominal outer diameter: 57.0 mm
  • Approximate weight: 7810 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x630

Nexans ref. 21630CXCVEB09JD0

  • Conductor cross-section: 630 mm²
  • Nominal outer diameter: 60.0 mm
  • Approximate weight: 8145 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x70

Nexans ref. 21070CXCVEB09DD0

  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 28.0 mm
  • Approximate weight: 1400 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x70

Nexans ref. 21070CXCVEB09ED0

  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 28.0 mm
  • Approximate weight: 1500 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x70

Nexans ref. 21070CXCVEB09GD0

  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 31.0 mm
  • Approximate weight: 1590 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x70

Nexans ref. 21070CXCVEB09HD0

  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 33.0 mm
  • Approximate weight: 1700 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x70

Nexans ref. 21070CXCVEB09JD0

  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 36.0 mm
  • Approximate weight: 1980 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x800

Nexans ref. 21800CXCVEB09DD0

  • Conductor cross-section: 800 mm²
  • Nominal outer diameter: 58.0 mm
  • Approximate weight: 9300 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x800

Nexans ref. 21800CXCVEB09ED0

  • Conductor cross-section: 800 mm²
  • Nominal outer diameter: 57.0 mm
  • Approximate weight: 9220 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x800

Nexans ref. 21800CXCVEB09GD0

  • Conductor cross-section: 800 mm²
  • Nominal outer diameter: 60.0 mm
  • Approximate weight: 9400 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x800

Nexans ref. 21800CXCVEB09HD0

  • Conductor cross-section: 800 mm²
  • Nominal outer diameter: 62.0 mm
  • Approximate weight: 9605 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x800

Nexans ref. 21800CXCVEB09JD0

  • Conductor cross-section: 800 mm²
  • Nominal outer diameter: 65.0 mm
  • Approximate weight: 9810 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x95

Nexans ref. 21095CXCVEB09DD0

  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 29.0 mm
  • Approximate weight: 1700 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x95

Nexans ref. 21095CXCVEB09ED0

  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 30.0 mm
  • Approximate weight: 1800 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x95

Nexans ref. 21095CXCVEB09GD0

  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 33.0 mm
  • Approximate weight: 1870 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x95

Nexans ref. 21095CXCVEB09HD0

  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 35.0 mm
  • Approximate weight: 2035 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x95

Nexans ref. 21095CXCVEB09JD0

  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 38.0 mm
  • Approximate weight: 2340 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



Description

Description

Standards

  • Product
    IEC 60502-2
  • Test
    IEC 60332-1

Application

These power cables are used for electricity supply in medium voltage installation system. They are well adapted to underground use in industrial application where chemical and mechanical protections are needed.  This group is complying with IEC 60502-2 .


Design

1. Conductor

Stranded bare copper class 2 acc. to IEC 60228 or equivalent

2. Insulation

Triple extruded Inner semi conductive layer  - Cross Linked Polyethylene 'XLPE' - Outer semi conductive layer

3. Metalic Screen

Copper wire screen with open helix copper tape

4. Inner Sheathing or Bedding

Extruded PVC

5. Armour

Aluminum Tape Armour "ATA"

6. Outer Sheath

Polyvinyl Chloride 'PVC'

 Options :

      - Flame retardant : 'CAT A, CAT B, CATC' to IEC60332 or equivalent.

      - Ozone resistant.

      - Oil resistant.

      - Anti termite.

Sheathing layers can be Halogen Free Flame Retardant "HFFR", or Polyethylene '"PE'


Installation Conditions:

1.Air Temperature : 30 Deg.

2.Ground Temperature : 20 Deg

3.Soil Thermal Resistivity : 1.5 km/w

4.Depth of lay : 0.8 m

 All dimensions have tolerance +-7 %

Marking

 no. of cores x  conductor size mm2  Cu/XLPE/ATA/PVC  Voltage grade V  Standard  MADE IN QATAR  QICC - Nexans  Year  Meters

Custom marking available

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Stranded class 2
Conductor shape
Circular compacted
Material of the inner semi-conductor
Semi-conducting compound
Insulation
XLPE (Cross-linked Polyethylene)
Material of the external semi-conductor
Semi-conducting compound
Screen
Copper wire + copper tape
Inner sheath
PVC
Armour type
Aluminium tape
Outer sheath
PVC compound
Sheath colour
Black

Dimensional characteristics

Dimensional characteristics

Number of cores
1

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
Flame retardant
IEC 60332-1
Bending factor when laying
30 (xD)
Bending factor when installed
15 (xD)

Resources

Resources

Selling & delivery Information


Note: On request we are delivering three single core laid up cables on one drum

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
