IEC/BS MV, XLPE Insulation, CWS, SWA, PE - DW

IEC/BS MV, XLPE Insulation, CWS, SWA, PE - DW

IEC/BS MV, XLPE Insulation, CWS, SWA, PE - DW

Multi-core XLPE-insulated cables with PVC sheath

Read more
Contact us

Products

Actions
Filters

  • products

3x120

Nexans ref. 23120KXCVSM00DZ0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 7920 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x120

Nexans ref. 23120KXCVSM00EZ0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 8430 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x120

Nexans ref. 23120KXCVSM00GZ0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 9130 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x120

Nexans ref. 23120KXCVSM00HZ0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 9770 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x120

Nexans ref. 23120KXCVSM00JZ0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 12400 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x150

Nexans ref. 23150KXCVSM00DZ0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 9070 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x150

Nexans ref. 23150KXCVSM00EZ0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 9620 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x150

Nexans ref. 23150KXCVSM00GZ0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 10260 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x150

Nexans ref. 23150KXCVSM00HZ0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 11995 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x150

Nexans ref. 23150KXCVSM00JZ0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 13700 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x185

Nexans ref. 23185KXCVSM00DZ0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 10465 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x185

Nexans ref. 23185KXCVSM00EZ0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 11020 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x185

Nexans ref. 23185KXCVSM00GZ0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 12780 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x185

Nexans ref. 23185KXCVSM00HZ0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 13515 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x185

Nexans ref. 23185KXCVSM00JZ0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 15250 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x240

Nexans ref. 23240KXCVSM00DZ0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 12545 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x240

Nexans ref. 23240KXCVSM00EZ0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 14130 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x240

Nexans ref. 23240KXCVSM00GZ0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 14950 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x240

Nexans ref. 23240KXCVSM00HZ0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 15710 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x240

Nexans ref. 23240KXCVSM00JZ0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 17420 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x25

Nexans ref. 23025KXCVSM00DZ0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 3370 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x25

Nexans ref. 23025KXCVSM00EZ0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 4130 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x25

Nexans ref. 23025KXCVSM00GZ0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 4750 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x300

Nexans ref. 23300KXCVSM00DZ0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 16390 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x300

Nexans ref. 23300KXCVSM00EZ0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 16900 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x300

Nexans ref. 23300KXCVSM00GZ0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 17700 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x300

Nexans ref. 23300KXCVSM00HZ0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 18340 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x300

Nexans ref. 23300KXCVSM00JZ0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 19930 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x35

Nexans ref. 23035KXCVSM00DZ0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 3810 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x35

Nexans ref. 23035KXCVSM00EZ0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 4700 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x35

Nexans ref. 23035KXCVSM00GZ0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 5200 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x35

Nexans ref. 23035KXCVSM00HZ0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 5810 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x400

Nexans ref. 23400KXCVSM00DZ0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 19570 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x400

Nexans ref. 23400KXCVSM00EZ0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 19890 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x400

Nexans ref. 23400KXCVSM00GZ0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 20580 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x400

Nexans ref. 23400KXCVSM00HZ0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 21230 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x50

Nexans ref. 23050KXCVSM00DZ0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 4840 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x50

Nexans ref. 23050KXCVSM00EZ0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 5300 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x50

Nexans ref. 23050KXCVSM00GZ0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 5830 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x50

Nexans ref. 23050KXCVSM00HZ0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 6460 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x50

Nexans ref. 23050KXCVSM00JZ0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 8780 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x70

Nexans ref. 23070KXCVSM00DZ0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 5830 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x70

Nexans ref. 23070KXCVSM00EZ0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 6280 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x70

Nexans ref. 23070KXCVSM00GZ0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 6950 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x70

Nexans ref. 23070KXCVSM00HZ0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 7515 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x70

Nexans ref. 23070KXCVSM00JZ0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 10100 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x95

Nexans ref. 23095KXCVSM00DZ0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 6880 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x95

Nexans ref. 23095KXCVSM00EZ0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 7450 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x95

Nexans ref. 23095KXCVSM00GZ0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 8070 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x95

Nexans ref. 23095KXCVSM00HZ0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 8720 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x95

Nexans ref. 23095KXCVSM00JZ0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 11280 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



Description

Description

Standards

  • Product
    BS 6622; IEC 60502-2
  • Test
    IEC 60332-1
  • National
    DEWA-MV-UAE

Application

These power cables are used for electricity supply in medium voltage installation system. They are well adapted to underground use in industrial application where chemical and mechanical protections are needed.  This group is complying with IEC , BS and DEWA specs.

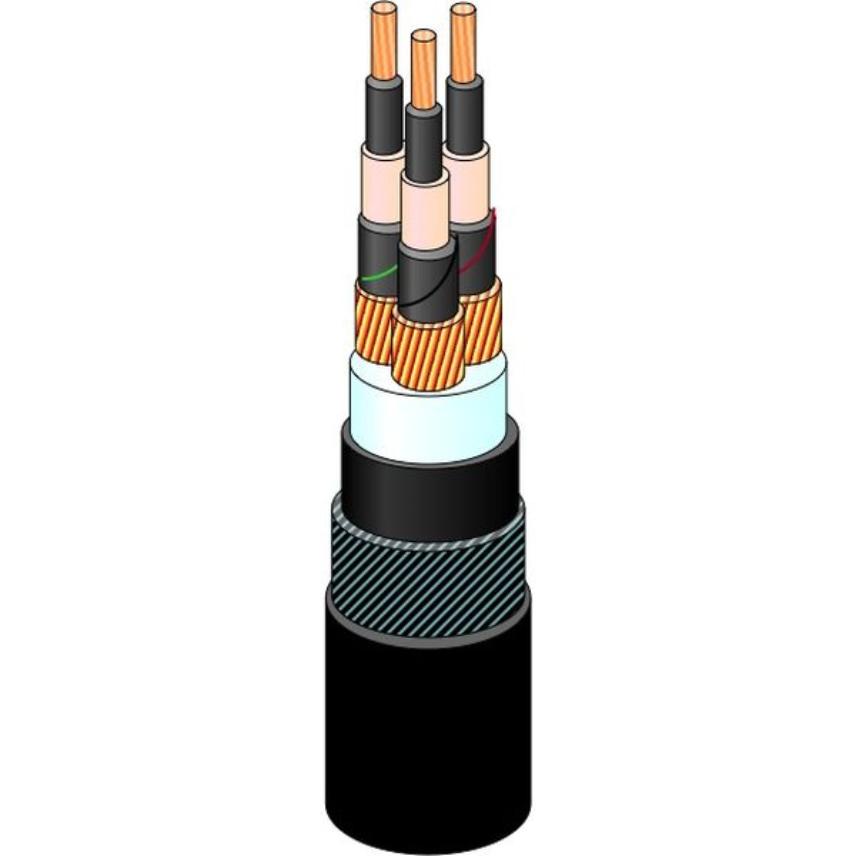

Design

1. Conductor

Stranded bare copper class 2 acc. to IEC 60228 or equivalent

2. Insulation

Triple extruded Inner semi conductive layer  - Cross Linked Polyethylene 'XLPE' - Outer semi conductive layer

3. Metalic Screen

Copper wire screen + Swelling layer in between the screen layer + Aluminum polymer laminated tape

4. First Sheathing

Extruded Polyethylene armound the core

5. Inner Sheath or Bedding

Extruded PVC

5. Armour

Galvanized Steel Wire Armour "SWA"

6. Outer Sheath

Extruded Polyethylene with outer semi conductive layer



Installation Conditions:

1.Air Temperature : 30 Deg.

2.Ground Temperature : 20 Deg

3.Soil Thermal Resistivity : 1.5 km/w

4.Depth of lay : 0.8 m

 All dimensions have tolerance +-7 %

Marking

 no. of cores x  conductor size mm2  Cu/XLPE/SWA/PVC  Voltage grade V  Standard  MADE IN QATAR  QICC - Nexans  Year  Meters

Custom marking available

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Stranded class 2
Conductor shape
Circular compacted
Material of the inner semi-conductor
Semi-conducting compound
Insulation
XLPE (Cross-linked Polyethylene)
Material of the external semi-conductor
Semi-conducting compound
Screen
Copper wire
Longitudinally watertight
Yes
Inner sheath
PVC
Armour type
Galvanized steel wires
Outer sheath
Polyethylene
Sheath colour
Black

Dimensional characteristics

Dimensional characteristics

Number of cores
3

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
Flame retardant
IEC 60332-1
Bending factor when laying
40 (xD)
Bending factor when installed
20 (xD)
Short-circuit max. conductor temperature
250 °C

Resources

Resources

Selling & delivery Information


Note: On request we are delivering three single core laid up cables on one drum

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
