IEC/BS MV, XLPE Insulation, CWS, PVC (3C)

Products

3x120

Nexans ref. 23120CXCVUB09DD0

  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 56.0 mm
  • Approximate weight: 5180 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x120

Nexans ref. 23120CXCVUB09ED0

  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 60.0 mm
  • Approximate weight: 5515 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x120

Nexans ref. 23120CXCVUB09GD0

  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 63.0 mm
  • Approximate weight: 5970 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x120

Nexans ref. 23120CXCVUB09HD0

  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 68.0 mm
  • Approximate weight: 6395 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x120

Nexans ref. 23120CXCVUB09JD0

  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 79.0 mm
  • Approximate weight: 8135 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x150

Nexans ref. 23150CXCVUB09DD0

  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 59.0 mm
  • Approximate weight: 6110 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x150

Nexans ref. 23150CXCVUB09ED0

  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 62.0 mm
  • Approximate weight: 6495 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x150

Nexans ref. 23150CXCVUB09GD0

  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 66.0 mm
  • Approximate weight: 6945 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x150

Nexans ref. 23150CXCVUB09HD0

  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 72.0 mm
  • Approximate weight: 8115 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x150

Nexans ref. 23150CXCVUB09JD0

  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 80.0 mm
  • Approximate weight: 9275 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x185

Nexans ref. 23185CXCVUB09DD0

  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 62.0 mm
  • Approximate weight: 7380 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x185

Nexans ref. 23185CXCVUB09ED0

  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 66.0 mm
  • Approximate weight: 7775 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x185

Nexans ref. 23185CXCVUB09GD0

  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 72.0 mm
  • Approximate weight: 9020 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x185

Nexans ref. 23185CXCVUB09HD0

  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 76.0 mm
  • Approximate weight: 9550 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x185

Nexans ref. 23185CXCVUB09JD0

  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 84.0 mm
  • Approximate weight: 10800 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x240

Nexans ref. 23240CXCVUB09DD0

  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 67.0 mm
  • Approximate weight: 8850 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x240

Nexans ref. 23240CXCVUB09ED0

  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 72.0 mm
  • Approximate weight: 9990 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x240

Nexans ref. 23240CXCVUB09GD0

  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 77.0 mm
  • Approximate weight: 10580 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x240

Nexans ref. 23240CXCVUB09HD0

  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 79.0 mm
  • Approximate weight: 11105 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x240

Nexans ref. 23240CXCVUB09JD0

  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 89.0 mm
  • Approximate weight: 12325 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x25

Nexans ref. 23025CXCVUB09DD0

  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 40.0 mm
  • Approximate weight: 1755 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x25

Nexans ref. 23025CXCVUB09ED0

  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 45.0 mm
  • Approximate weight: 2180 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x25

Nexans ref. 23025CXCVUB09GD0

  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 49.0 mm
  • Approximate weight: 2510 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x300

Nexans ref. 23300CXCVUB09DD0

  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 77.0 mm
  • Approximate weight: 11595 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x300

Nexans ref. 23300CXCVUB09ED0

  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 79.0 mm
  • Approximate weight: 11955 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x300

Nexans ref. 23300CXCVUB09GD0

  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 83.0 mm
  • Approximate weight: 12520 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x300

Nexans ref. 23300CXCVUB09HD0

  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 86.0 mm
  • Approximate weight: 1295 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x300

Nexans ref. 23300CXCVUB09JD0

  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 97.0 mm
  • Approximate weight: 14305 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x35

Nexans ref. 23035CXCVUB09DD0

  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 43.0 mm
  • Approximate weight: 2005 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x35

Nexans ref. 23035CXCVUB09ED0

  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 47.0 mm
  • Approximate weight: 2480 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x35

Nexans ref. 23035CXCVUB09GD0

  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 52.0 mm
  • Approximate weight: 2750 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x35

Nexans ref. 23035CXCVUB09HD0

  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 55.0 mm
  • Approximate weight: 3075 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x400

Nexans ref. 23400CXCVUB09DD0

  • Conductor cross-section: 400 mm²
  • Nominal outer diameter: 82.0 mm
  • Approximate weight: 14170 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x400

Nexans ref. 23400CXCVUB09ED0

  • Conductor cross-section: 400 mm²
  • Nominal outer diameter: 84.0 mm
  • Approximate weight: 14375 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x400

Nexans ref. 23400CXCVUB09GD0

  • Conductor cross-section: 400 mm²
  • Nominal outer diameter: 88.0 mm
  • Approximate weight: 14870 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x400

Nexans ref. 23400CXCVUB09HD0

  • Conductor cross-section: 400 mm²
  • Nominal outer diameter: 92.0 mm
  • Approximate weight: 15340 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x400

Nexans ref. 23400CXCVUB09JD0

  • Conductor cross-section: 400 mm²
  • Nominal outer diameter: 101.0 mm
  • Approximate weight: 16465 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x50

Nexans ref. 23050CXCVUB09DD0

  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 45.0 mm
  • Approximate weight: 2555 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x50

Nexans ref. 23050CXCVUB09ED0

  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 49.0 mm
  • Approximate weight: 2805 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x50

Nexans ref. 23050CXCVUB09GD0

  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 53.0 mm
  • Approximate weight: 3085 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x50

Nexans ref. 23050CXCVUB09HD0

  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 58.0 mm
  • Approximate weight: 3430 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x50

Nexans ref. 23050CXCVUB09JD0

  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 69.0 mm
  • Approximate weight: 4675 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x70

Nexans ref. 23070CXCVUB09DD0

  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 50.0 mm
  • Approximate weight: 3410 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x70

Nexans ref. 23070CXCVUB09ED0

  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 53.0 mm
  • Approximate weight: 3685 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x70

Nexans ref. 23070CXCVUB09GD0

  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 58.0 mm
  • Approximate weight: 4075 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x70

Nexans ref. 23070CXCVUB09HD0

  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 61.0 mm
  • Approximate weight: 4410 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x70

Nexans ref. 23070CXCVUB09JD0

  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 72.0 mm
  • Approximate weight: 5950 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x95

Nexans ref. 23095CXCVUB09DD0

  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 52.0 mm
  • Approximate weight: 4035 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



3x95

Nexans ref. 23095CXCVUB09ED0

  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 57.0 mm
  • Approximate weight: 4070 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x95

Nexans ref. 23095CXCVUB09GD0

  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 61.0 mm
  • Approximate weight: 4740 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



3x95

Nexans ref. 23095CXCVUB09HD0

  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 64.0 mm
  • Approximate weight: 2125 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x95

Nexans ref. 23095CXCVUB09JD0

  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 76.0 mm
  • Approximate weight: 6650 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



Description

Description

Standards

  • International
    IEC 60332-1; IEC 60502-2
  • National
    BS 6622

Application

These power cables are used for electricity supply in medium voltage installation system. They are well adapted to underground use in industrial application where chemical and mechanical protections are needed.  This group is complying with IEC 60502-2 or BS 6622.

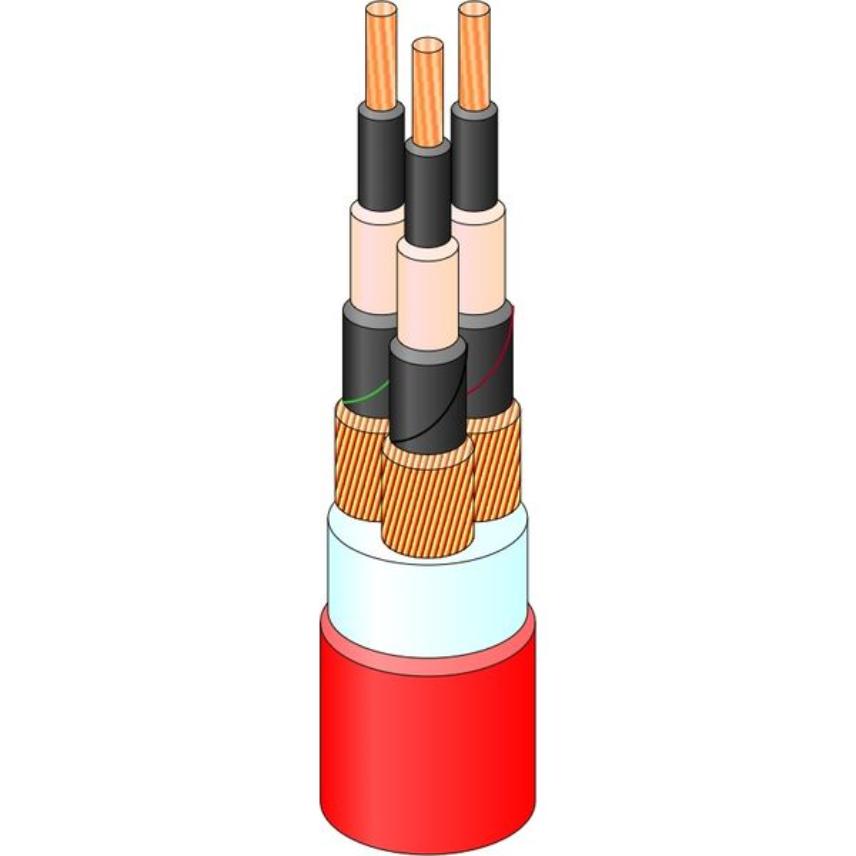

Design

1. Conductor

Stranded bare copper class 2 acc. to IEC 60228 or equivalent

2. Insulation

Triple extruded Inner semi conductive layer  - Cross Linked Polyethylene 'XLPE' - Outer semi conductive layer

3. Metalic Screen

Copper wire screen with open helix copper tape

4. Inner Sheathing or Bedding

Extruded PVC

5. Outer Sheath

Polyvinyl Chloride 'PVC'

 Options :

      - Flame retardant : 'CAT A, CAT B, CATC' to IEC60332 or equivalent.

      - Ozone resistant.

      - Oil resistant.

      - Anti termite.

Sheathing layers can be Halogen Free Flame Retardant "HFFR", or Polyethylene '"PE'


Installation Conditions:

1.Air Temperature : 30 Deg.

2.Ground Temperature : 20 Deg

3.Soil Thermal Resistivity : 1.5 km/w

4.Depth of lay : 0.8 m

 All dimensions have tolerance +-7 %

Marking

 no. of cores x  conductor size mm2  Cu/XLPE/PVC  Voltage grade V  Standard  MADE IN QATAR  QICC - Nexans  Year  Meters

Custom marking available

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Stranded class 2
Conductor shape
Circular compacted
Material of the inner semi-conductor
Semi-conducting compound
Insulation
XLPE (Cross-linked Polyethylene)
Material of the external semi-conductor
Semi-conducting compound
Screen
Copper wire + copper tape
Inner sheath
PVC
Armour type
Unarmoured
Outer sheath
PVC compound
Sheath colour
Black

Dimensional characteristics

Dimensional characteristics

Number of cores
-

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
Flame retardant
IEC 60332-1
Bending factor when laying
30 (xD)
Bending factor when installed
15 (xD)
Short-circuit max. conductor temperature
250 °C

Resources

Resources

Selling & delivery Information


Note: On request we are delivering three single core laid up cables on one drum

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
