Products

IEC/BS MV, XLPE Insulation, CTS, PVC (1C)

IEC/BS MV, XLPE Insulation, CTS, PVC (1C)

IEC/BS MV, XLPE Insulation, CTS, PVC (1C)

Single-core XLPE-insulated cables with PVC sheath

Read more
Contact us

Products

Actions
Filters

  • products

1x120

Nexans ref. 21120CXTOUB09DD0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 1550 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x120

Nexans ref. 21120CXTOUB09ED0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 1645 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x120

Nexans ref. 21120CXTOUB09GD0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 1770 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x120

Nexans ref. 21120CXTOUB09HD0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 1870 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x120

Nexans ref. 21120CXTOUB09JD0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 2170 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x150

Nexans ref. 21150CXTOUB09DD0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 1850 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x150

Nexans ref. 21150CXTOUB09ED0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 1930 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x150

Nexans ref. 21150CXTOUB09GD0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 2070 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x150

Nexans ref. 21150CXTOUB09HD0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 2185 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x150

Nexans ref. 21150CXTOUB09JD0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 2500 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x185

Nexans ref. 21185CXTOUB09DD0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 2150 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x185

Nexans ref. 21185CXTOUB09ED0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 2275 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x185

Nexans ref. 21185CXTOUB09GD0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 2390 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x185

Nexans ref. 21185CXTOUB09HD0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 2510 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x185

Nexans ref. 21185CXTOUB09JD0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 3005 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x240

Nexans ref. 21240CXTOUB09DD0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 2630 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x240

Nexans ref. 21240CXTOUB09ED0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 2720 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x240

Nexans ref. 21240CXTOUB09GD0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 2830 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x240

Nexans ref. 21240CXTOUB09HD0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 2970 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x240

Nexans ref. 21240CXTOUB09JD0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 3430 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x25

Nexans ref. 21025CXTOUB09DD0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 500 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x25

Nexans ref. 21025CXTOUB09ED0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 550 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x25

Nexans ref. 21025CXTOUB09GD0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 610 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x300

Nexans ref. 21300CXTOUB09DD0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 3165 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x300

Nexans ref. 21300CXTOUB09ED0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 3390 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x300

Nexans ref. 21300CXTOUB09GD0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 3530 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x300

Nexans ref. 21300CXTOUB09HD0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 3790 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x300

Nexans ref. 21300CXTOUB09JD0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 4220 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x35

Nexans ref. 21035CXTOUB09DD0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 580 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x35

Nexans ref. 21035CXTOUB09ED0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 620 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x35

Nexans ref. 21035CXTOUB09GD0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 890 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x35

Nexans ref. 21035CXTOUB09HD0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 750 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x400

Nexans ref. 21400CXTOUB09DD0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 4170 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x400

Nexans ref. 21400CXTOUB09ED0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 4150 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x400

Nexans ref. 21400CXTOUB09GD0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 4520 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x400

Nexans ref. 21400CXTOUB09HD0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 4680 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x400

Nexans ref. 21400CXTOUB09JD0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 5010 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x50

Nexans ref. 21050CXTOUB09DD0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 670 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x50

Nexans ref. 21050CXTOUB09ED0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 715 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x50

Nexans ref. 21050CXTOUB09GD0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 790 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x50

Nexans ref. 21050CXTOUB09HD0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 855 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x50

Nexans ref. 21050CXTOUB09JD0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 1095 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x500

Nexans ref. 21500CXTOUB09DD0

  • Conductor cross-section: 500 mm²
  • Approximate weight: 5240 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x500

Nexans ref. 21500CXTOUB09ED0

  • Conductor cross-section: 500 mm²
  • Approximate weight: 5440 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x500

Nexans ref. 21500CXTOUB09GD0

  • Conductor cross-section: 500 mm²
  • Approximate weight: 5580 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x500

Nexans ref. 21500CXTOUB09HD0

  • Conductor cross-section: 500 mm²
  • Approximate weight: 5770 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x500

Nexans ref. 21500CXTOUB09JD0

  • Conductor cross-section: 500 mm²
  • Approximate weight: 6215 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x630

Nexans ref. 21630CXTOUB09DD0

  • Conductor cross-section: 630 mm²
  • Approximate weight: 6550 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x630

Nexans ref. 21630CXTOUB09ED0

  • Conductor cross-section: 630 mm²
  • Approximate weight: 6590 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x630

Nexans ref. 21630CXTOUB09GD0

  • Conductor cross-section: 630 mm²
  • Approximate weight: 6740 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x630

Nexans ref. 21630CXTOUB09HD0

  • Conductor cross-section: 630 mm²
  • Approximate weight: 6920 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x630

Nexans ref. 21630CXTOUB09JD0

  • Conductor cross-section: 630 mm²
  • Approximate weight: 7455 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x70

Nexans ref. 21070CXTOUB09DD0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 920 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x70

Nexans ref. 21070CXTOUB09ED0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 990 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x70

Nexans ref. 21070CXTOUB09GD0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 1070 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x70

Nexans ref. 21070CXTOUB09HD0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 1150 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x70

Nexans ref. 21070CXTOUB09JD0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 1380 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x800

Nexans ref. 21800CXTOUB09DD0

  • Conductor cross-section: 800 mm²
  • Approximate weight: 8430 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x800

Nexans ref. 21800CXTOUB09ED0

  • Conductor cross-section: 800 mm²
  • Approximate weight: 8480 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x800

Nexans ref. 21800CXTOUB09GD0

  • Conductor cross-section: 800 mm²
  • Approximate weight: 8715 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x800

Nexans ref. 21800CXTOUB09HD0

  • Conductor cross-section: 800 mm²
  • Approximate weight: 8915 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x800

Nexans ref. 21800CXTOUB09JD0

  • Conductor cross-section: 800 mm²
  • Approximate weight: 9410 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x95

Nexans ref. 21095CXTOUB09DD0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 1110 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x95

Nexans ref. 21095CXTOUB09ED0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 1430 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x95

Nexans ref. 21095CXTOUB09GD0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 1530 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x95

Nexans ref. 21095CXTOUB09HD0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 1665 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x95

Nexans ref. 21095CXTOUB09JD0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 1980 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



Description

Description

Standards

  • International
    IEC 60332-1; IEC 60502-2
  • National
    BS 6622

Application

These power cables are used for electricity supply in medium voltage installation system. They are well adapted to underground use in industrial application where chemical and mechanical protections are needed.  This group is complying with IEC 60502-2 or BS 6622.

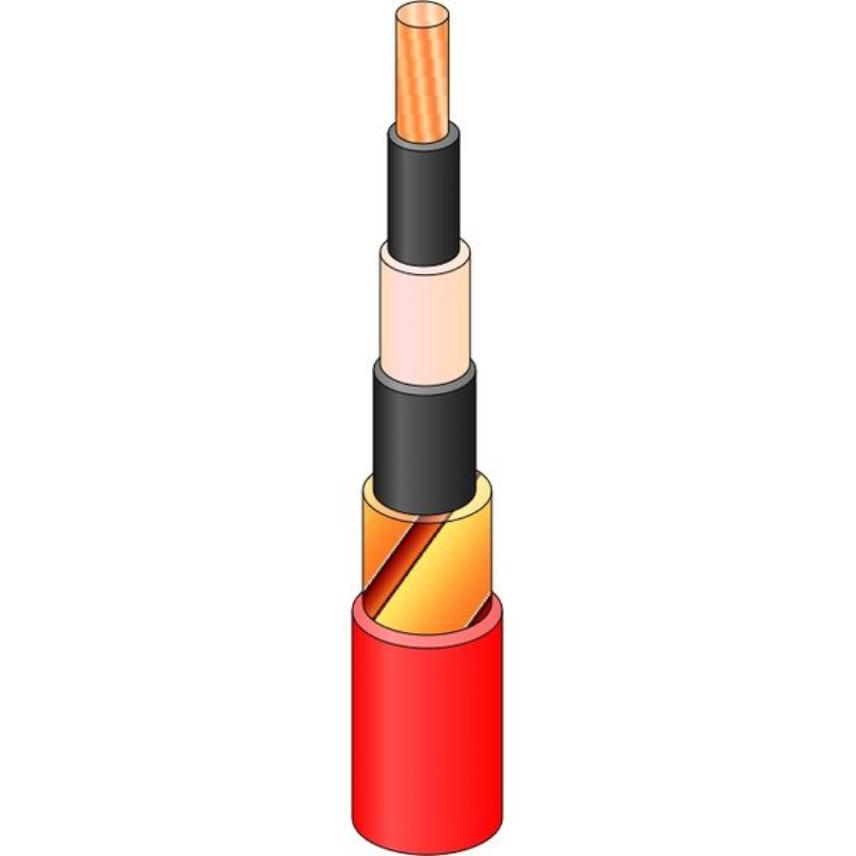

Design

1. Conductor

Stranded bare copper class 2 acc. to IEC 60228 or equivalent

2. Insulation

Triple extruded Inner semi conductive layer  - Cross Linked Polyethylene 'XLPE' - Outer semi conductive layer

3. Metalic Screen

Copper tape screen

4. Outer Sheath

Polyvinyl Chloride 'PVC'

 Options :

      - Flame retardant : 'CAT A, CAT B, CATC' to IEC60332 or equivalent.

      - Ozone resistant.

      - Oil resistant.

      - Anti termite.

Sheathing layers can be Halogen Free Flame Retardant "HFFR", or Polyethylene '"PE'


Installation Conditions:

1.Air Temperature : 30 Deg.

2.Ground Temperature : 20 Deg

3.Soil Thermal Resistivity : 1.5 km/w

4.Depth of lay : 0.8 m

 All dimensions have tolerance +-7 %

Marking

 no. of cores x  conductor size mm2  Cu/XLPE/PVC  Voltage grade V  Standard  MADE IN QATAR  QICC - Nexans  Year  Meters

Custom marking available

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Stranded class 2
Conductor shape
Circular compacted
Material of the inner semi-conductor
Semi-conducting compound
Insulation
XLPE (Cross-linked Polyethylene)
Material of the external semi-conductor
Semi-conducting compound
Screen
Copper tape
Inner sheath
PVC
Armour type
Unarmoured
Outer sheath
PVC compound
Sheath colour
Black

Dimensional characteristics

Dimensional characteristics

Number of cores
1

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Flame retardant
IEC 60332-1
Bending factor when laying
30 (xD)
Bending factor when installed
15 (xD)

Resources

Resources

Selling & delivery Information


Note: On request we are delivering three single core laid up cables on one drum

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
