IEC 60502-2 / NF C 33-220 12/20 (24) kV

Products

IEC 60502-2 / NF C 33-220 12/20 kV Cu 1x240

Nexans ref. 10191269 - Country ref. 01272168

  • Packaging: Cut to length (m)
  • Conductor cross-section: 240 mm²



IEC 60502-2 / NF C 33-220 12/20 kV Cu 1x35

Nexans ref. 10191267 - Country ref. 01272166

  • Packaging: Cut to length (m)
  • Conductor cross-section: 35 mm²



IEC 60502-2 / NF C 33-220 12/20 kV Cu 1x50

Nexans ref. 10191268 - Country ref. 01272167

  • Packaging: Cut to length (m)
  • Conductor cross-section: 50 mm²



Description

Description

Standards

  • International
    IEC 60502-2
  • National
    NF C 33-220; NF C 33-220

Usage

IEC 60502-2 or NF C 33-220 cables are for public power distribution network 12/20 kV.



Design

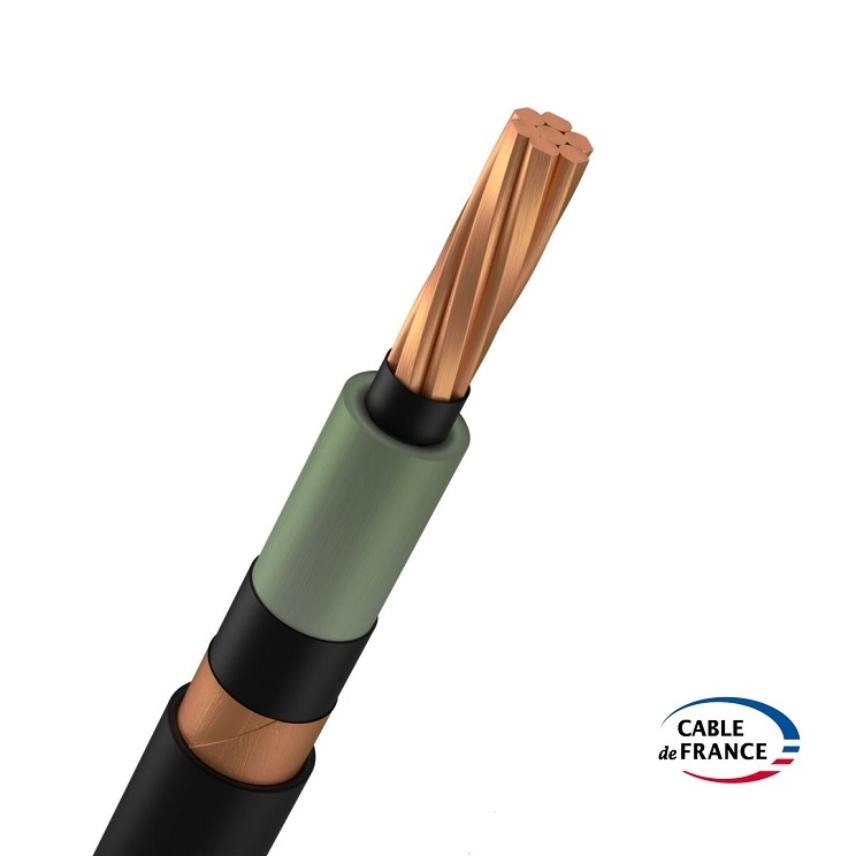

The cable is made of not armoured 1 core. A semi conductive tape is layed beneath copper screen.



Insulation

The polyethylene cross-linking process ensures:

  • Excellent heat resistance (90 °C)
  • Good mechanical strength
  • Excellent behaviour under short circuit conditions (250 °C)
  • Extremely good resistance to low temperatures

Drumming

All drum types, lagged or not, up to a diameter of 3.00 m and a total weight of 12 t.







Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor shape
Circular
Conductor flexibility
Stranded class 2
Material of the inner semi-conductor
Extruded
Insulation
XLPE (chemical)
Material of the external semi-conductor
Extruded strippable
Screen
Copper tape
Material used for longitudinal water tightness
None
Outer sheath
PE-HD
Sheath colour
Black

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
12/20 kV
Thermal resistivity of insulation
3.5 °K.m/W
Insulation Relative dielectric coefficient
2.5
Dielectric loss factor (tand maxi =)
40E-04

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good
Cable flexibility
Rigid

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Weather resistance
Good

Resources

Resources

Selling & delivery Information

Contact us for any other cable options.

Calculation assumptions (temperate countries):

  • Air temperature : 30°C
  • Soil temperature : 20°C
  • Thermal resistivity of soil : 0.85 °K.m/W
  • Burying depth : 0.80 m
