BS LV, XLPE Insulation, AWA, PVC 0.6/1 kV

Products

1x120

Nexans ref. 21120FXZVAB09BD0

  • Packaging: Drum (m)
  • Conductor cross-section: 120 mm²
  • Approximate weight: 1490 kg/km
  • Nominal outer diameter: 24.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 400 A
  • Permissible current rating when buried: 257 A
  • Voltage drop, single phase: 0.39 V/A.km



1x150

Nexans ref. 21150FXZVAB09BD0

  • Packaging: Drum (m)
  • Conductor cross-section: 150 mm²
  • Approximate weight: 1800 kg/km
  • Nominal outer diameter: 25.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 464 A
  • Permissible current rating when buried: 287 A
  • Voltage drop, single phase: 0.34 V/A.km



1x185

Nexans ref. 21185FXZVAB09BD0

  • Packaging: Drum (m)
  • Conductor cross-section: 185 mm²
  • Approximate weight: 2220 kg/km
  • Nominal outer diameter: 27.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 533 A
  • Permissible current rating when buried: 324 A
  • Voltage drop, single phase: 0.29 V/A.km



1x240

Nexans ref. 21240FXZVAB09BD0

  • Packaging: Drum (m)
  • Conductor cross-section: 240 mm²
  • Approximate weight: 2800 kg/km
  • Nominal outer diameter: 29.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 634 A
  • Permissible current rating when buried: 375 A
  • Voltage drop, single phase: 0.25 V/A.km



1x300

Nexans ref. 21300FXZVAB09BD0

  • Packaging: Drum (m)
  • Conductor cross-section: 300 mm²
  • Approximate weight: 3420 kg/km
  • Nominal outer diameter: 31.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Permissible current rating in open air: 736 A
  • Permissible current rating when buried: 419 A
  • Voltage drop, single phase: 0.22 V/A.km



1x400

Nexans ref. 21400FXZVAB09BD0

  • Packaging: Drum (m)
  • Conductor cross-section: 400 mm²
  • Approximate weight: 4300 kg/km
  • Nominal outer diameter: 35.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • Permissible current rating in open air: 868 A
  • Permissible current rating when buried: 717 A
  • Voltage drop, single phase: 0.19 V/A.km



1x50

Nexans ref. 21050FXZVAB09BD0

  • Packaging: Drum (m)
  • Conductor cross-section: 50 mm²
  • Approximate weight: 700 kg/km
  • Nominal outer diameter: 18.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 216 A
  • Permissible current rating when buried: 153 A
  • Voltage drop, single phase: 0.84 V/A.km



1x500

Nexans ref. 21500FXZVAB09BD0

  • Packaging: Drum (m)
  • Conductor cross-section: 500 mm²
  • Approximate weight: 5490 kg/km
  • Nominal outer diameter: 41.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.037 Ohm/km
  • Permissible current rating in open air: 998 A
  • Permissible current rating when buried: 791 A
  • Voltage drop, single phase: 0.17 V/A.km



1x630

Nexans ref. 21630FXZVAB09BD0

  • Packaging: Drum (m)
  • Conductor cross-section: 630 mm²
  • Approximate weight: 6850 kg/km
  • Nominal outer diameter: 44.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.028 Ohm/km
  • Permissible current rating in open air: 1151 A
  • Permissible current rating when buried: 861 A
  • Voltage drop, single phase: 0.16 V/A.km



1x70

Nexans ref. 21070FXZVAB09BD0

  • Packaging: Drum (m)
  • Conductor cross-section: 70 mm²
  • Approximate weight: 950 kg/km
  • Nominal outer diameter: 20.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 278 A
  • Permissible current rating when buried: 188 A
  • Voltage drop, single phase: 0.61 V/A.km



1x800

Nexans ref. 21800FXZVAB09BD0

  • Packaging: Drum (m)
  • Conductor cross-section: 800 mm²
  • Approximate weight: 8700 kg/km
  • Nominal outer diameter: 48.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.022 Ohm/km
  • Permissible current rating in open air: 1246 A
  • Permissible current rating when buried: 904 A
  • Voltage drop, single phase: 0.15 V/A.km



1x95

Nexans ref. 21095FXZVAB09BD0

  • Packaging: Drum (m)
  • Conductor cross-section: 95 mm²
  • Approximate weight: 1230 kg/km
  • Nominal outer diameter: 22.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 342 A
  • Permissible current rating when buried: 226 A
  • Voltage drop, single phase: 0.47 V/A.km



Description

Description

Standards

  • International
    IEC 60332-1
  • National
    BS 5467

Application


These power cables are used for electricity supply in low voltage installation systems.

They are well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plant…)

This family is fully compling with DEWA, FEWA and SEWA specifications from UAE.

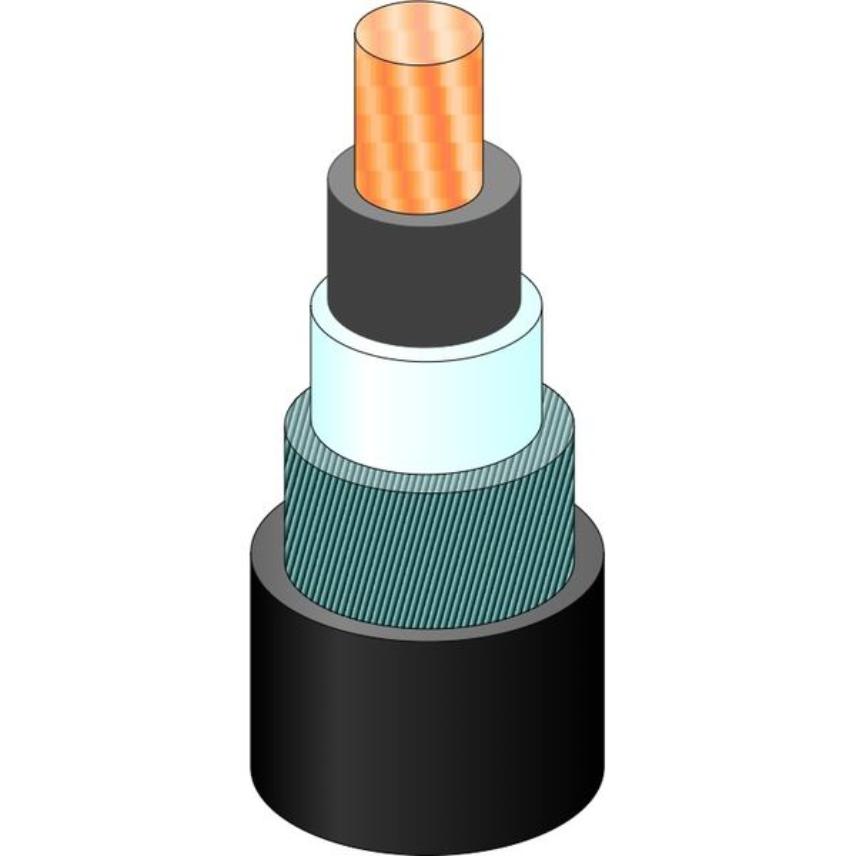

Design



  1. Conductor
    Stranded bare copper class 2 acc. to BS EN 60228

  2. Insulation
    Cross Linked Polyethylene "XLPE"

  3. Inner Sheath or Bedding
    Extruded PVC

  4. Armour
    Aluminium wire armour "AWA"

  5. Outer Sheath
    Extruded Polyvinyl Chlorid "PVC"

     Option:

   - Flame retardant, Cat A, Cat B or Cat C to BS 4066 or equivalent.

   - Ozone resistant.

   - Oil resistant.

   - Anti termite.

 Installation Conditions:

  1. Air Temperature : 30 Deg.
  2. Ground Temperature: 20 Deg.
  3. Soil Thermal Resistivity : 2.5 k.m/w
  4. Depth of lay : 0.7 m

 All dimensions have tolerance +- 7 %

Marking

no. of cores x conductor sizes mm2 Cu / XLPE / AWA / PVC 600/1000 V Standard BASEC MADE IN QATAR QICC-Nexans Year Meters

Custom marking available

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor shape
Circular
Insulation
XLPE (Cross-linked Polyethylene)
Inner sheath
PVC
Armour type
Aluminium Wire
Outer sheath
PVC
Colour
Black
Conductor flexibility
Stranded class 2
Halogen free
No

Dimensional characteristics

Dimensional characteristics

Number of cores
1

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0.6/1 kV

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Flame retardant
Yes
Bending factor when laying
15 (xD)
Bending factor when installed
8 (xD)
