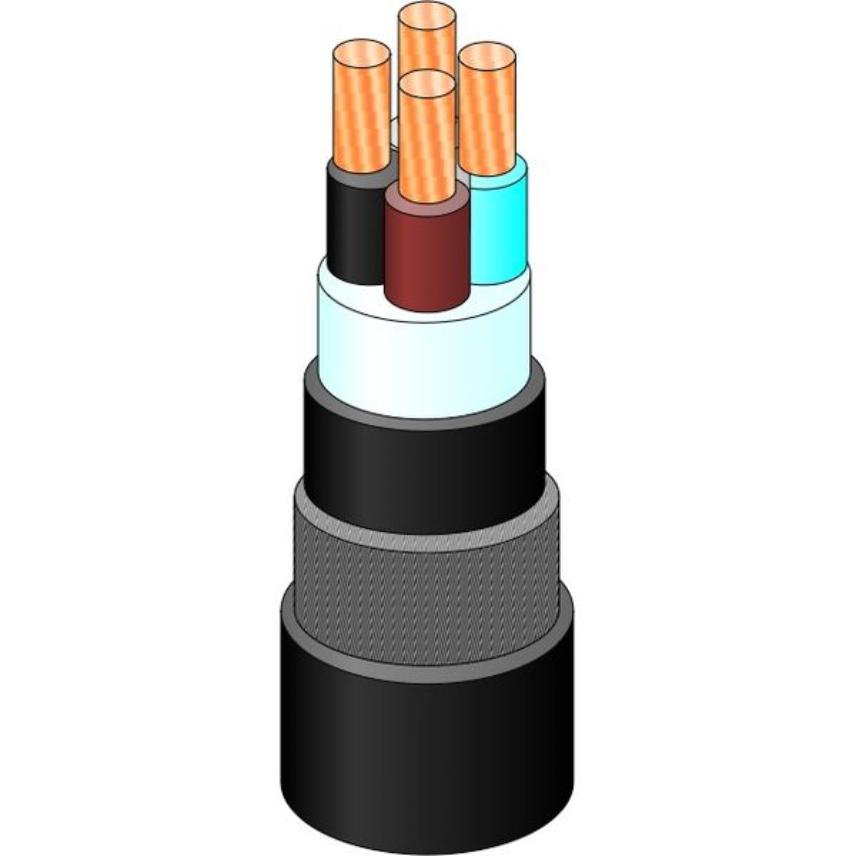

BS LV, XLPE Insulation, SWA, PVC 0.6/1KV

Products

2x1.5

Nexans ref. 22002FXZVSB09BD0

  • Packaging: Drum (m)
  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 260 kg/km
  • Nominal outer diameter: 12.0 mm



2x10

Nexans ref. 22010FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 10 mm²
  • Approximate weight: 610 kg/km
  • Nominal outer diameter: 17.0 mm



2x120

Nexans ref. 22120FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 120 mm²
  • Approximate weight: 3020 kg/km
  • Nominal outer diameter: 34.0 mm



2x150

Nexans ref. 22150FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 150 mm²
  • Approximate weight: 3590 kg/km
  • Nominal outer diameter: 37.0 mm



2x16

Nexans ref. 22016FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 16 mm²
  • Approximate weight: 910 kg/km
  • Nominal outer diameter: 20.0 mm



2x185

Nexans ref. 22185FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 185 mm²
  • Approximate weight: 4660 kg/km
  • Nominal outer diameter: 42.0 mm



2x2.5

Nexans ref. 22003FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 330 kg/km
  • Nominal outer diameter: 13.0 mm



2x25

Nexans ref. 22025FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 25 mm²
  • Approximate weight: 950 kg/km
  • Nominal outer diameter: 19.0 mm



2x35

Nexans ref. 22035FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 35 mm²
  • Approximate weight: 1320 kg/km
  • Nominal outer diameter: 22.0 mm



2x4

Nexans ref. 22004FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 4 mm²
  • Approximate weight: 390 kg/km
  • Nominal outer diameter: 14.0 mm



2x50

Nexans ref. 22050FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 50 mm²
  • Approximate weight: 1660 kg/km
  • Nominal outer diameter: 25.0 mm



2x6

Nexans ref. 22006FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 6 mm²
  • Approximate weight: 475 kg/km
  • Nominal outer diameter: 15.0 mm



2x70

Nexans ref. 22070FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 70 mm²
  • Approximate weight: 1860 kg/km
  • Nominal outer diameter: 28.0 mm



2x95

Nexans ref. 22095FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 95 mm²
  • Approximate weight: 2530 kg/km
  • Nominal outer diameter: 31.0 mm



3x1.5

Nexans ref. 23002FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 280 kg/km
  • Nominal outer diameter: 12.0 mm



3x10

Nexans ref. 23010FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 10 mm²
  • Approximate weight: 810 kg/km
  • Nominal outer diameter: 19.0 mm



3x120

Nexans ref. 23120FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 120 mm²
  • Approximate weight: 4160 kg/km
  • Nominal outer diameter: 39.0 mm



3x150

Nexans ref. 23150FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 150 mm²
  • Approximate weight: 5310 kg/km
  • Nominal outer diameter: 44.0 mm



3x16

Nexans ref. 23016FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 16 mm²
  • Approximate weight: 1080 kg/km
  • Nominal outer diameter: 21.0 mm



3x185

Nexans ref. 23185FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 185 mm²
  • Approximate weight: 6380 kg/km
  • Nominal outer diameter: 48.0 mm



3x2.5

Nexans ref. 23003FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 360 kg/km
  • Nominal outer diameter: 14.0 mm



3x240

Nexans ref. 23240FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 240 mm²
  • Approximate weight: 7980 kg/km
  • Nominal outer diameter: 52.0 mm



3x25

Nexans ref. 23025FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 25 mm²
  • Approximate weight: 1440 kg/km
  • Nominal outer diameter: 23.0 mm



3x300

Nexans ref. 23300FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 300 mm²
  • Approximate weight: 9620 kg/km
  • Nominal outer diameter: 57.0 mm



3x35

Nexans ref. 23035FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 35 mm²
  • Approximate weight: 1770 kg/km
  • Nominal outer diameter: 26.0 mm



3x4

Nexans ref. 23004FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 4 mm²
  • Approximate weight: 450 kg/km
  • Nominal outer diameter: 15.0 mm



3x400

Nexans ref. 23400FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 400 mm²
  • Approximate weight: 12030 kg/km
  • Nominal outer diameter: 64.0 mm



3x50

Nexans ref. 23050FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 50 mm²
  • Approximate weight: 2200 kg/km
  • Nominal outer diameter: 28.0 mm



3x6

Nexans ref. 23006FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 6 mm²
  • Approximate weight: 530 kg/km
  • Nominal outer diameter: 16.0 mm



3x70

Nexans ref. 23070FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 70 mm²
  • Approximate weight: 2500 kg/km
  • Nominal outer diameter: 31.0 mm



3x95

Nexans ref. 23095FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 95 mm²
  • Approximate weight: 3440 kg/km
  • Nominal outer diameter: 36.0 mm



4x1.5

Nexans ref. 24002FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 320 kg/km
  • Nominal outer diameter: 13.0 mm



4x10

Nexans ref. 24010FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 10 mm²
  • Approximate weight: 960 kg/km
  • Nominal outer diameter: 20.0 mm



4x120

Nexans ref. 24120FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 120 mm²
  • Approximate weight: 5640 kg/km
  • Nominal outer diameter: 45.0 mm



4x150

Nexans ref. 24150FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 150 mm²
  • Approximate weight: 6670 kg/km
  • Nominal outer diameter: 48.0 mm



4x16

Nexans ref. 24016FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 16 mm²
  • Approximate weight: 1240 kg/km
  • Nominal outer diameter: 23.0 mm



4x185

Nexans ref. 24185FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 185 mm²
  • Approximate weight: 8080 kg/km
  • Nominal outer diameter: 53.0 mm



4x2.5

Nexans ref. 24003FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 410 kg/km
  • Nominal outer diameter: 15.0 mm



4x240

Nexans ref. 24240FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 240 mm²
  • Approximate weight: 10200 kg/km
  • Nominal outer diameter: 59.0 mm



4x25

Nexans ref. 24025FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 25 mm²
  • Approximate weight: 1720 kg/km
  • Nominal outer diameter: 25.0 mm



4x300

Nexans ref. 24300FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 300 mm²
  • Approximate weight: 12360 kg/km
  • Nominal outer diameter: 64.0 mm



4x35

Nexans ref. 24035FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 35 mm²
  • Approximate weight: 2160 kg/km
  • Nominal outer diameter: 28.0 mm



4x4

Nexans ref. 24004FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 4 mm²
  • Approximate weight: 510 kg/km
  • Nominal outer diameter: 16.0 mm



4x400

Nexans ref. 24400FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 400 mm²
  • Approximate weight: 16170 kg/km
  • Nominal outer diameter: 73.0 mm



4x50

Nexans ref. 24050FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 50 mm²
  • Approximate weight: 2750 kg/km
  • Nominal outer diameter: 31.0 mm



4x6

Nexans ref. 24006FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 6 mm²
  • Approximate weight: 720 kg/km
  • Nominal outer diameter: 18.0 mm



4x70

Nexans ref. 24070FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 70 mm²
  • Approximate weight: 3400 kg/km
  • Nominal outer diameter: 36.0 mm



4x95

Nexans ref. 24095FXZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 95 mm²
  • Approximate weight: 4310 kg/km
  • Nominal outer diameter: 40.0 mm



5x1.5

Nexans ref. 25002FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 370 kg/km
  • Nominal outer diameter: 14.0 mm



5x10

Nexans ref. 25010FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 10 mm²
  • Approximate weight: 1110 kg/km
  • Nominal outer diameter: 22.0 mm



5x16

Nexans ref. 25016FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 16 mm²
  • Approximate weight: 1660 kg/km
  • Nominal outer diameter: 26.0 mm



5x2.5

Nexans ref. 25003FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 460 kg/km
  • Nominal outer diameter: 16.0 mm



5x25

Nexans ref. 25025FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 25 mm²
  • Approximate weight: 2220 kg/km
  • Nominal outer diameter: 29.0 mm



5x35

Nexans ref. 25035FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 35 mm²
  • Approximate weight: 2770 kg/km
  • Nominal outer diameter: 32.0 mm



5x4

Nexans ref. 25004FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 4 mm²
  • Approximate weight: 590 kg/km
  • Nominal outer diameter: 17.0 mm



5x50

Nexans ref. 25050FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 50 mm²
  • Approximate weight: 3840 kg/km
  • Nominal outer diameter: 37.0 mm



5x6

Nexans ref. 25006FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 6 mm²
  • Approximate weight: 830 kg/km
  • Nominal outer diameter: 19.0 mm



5x70

Nexans ref. 25070FXZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 70 mm²
  • Approximate weight: 4350 kg/km
  • Nominal outer diameter: 42.0 mm



Description

Description

Standards

  • Product
    BS 5467
  • Test
    IEC 60332-1

Application

These power cables are used for electricity supply in low voltage installation systems.

They are well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plant…)

This family is fully compling with BS 5467.



Design



  1. Conductor
    Stranded bare copper class 2 acc. to BS 6360 and IEC 60228

  2. Insulation
    Cross Linked Polyethylene "XLPE"

  3. Inner Sheath or Bedding
    Extruded PVC

  4. Armour
    Galvanized Steel Wire Armour "SWA"
  1. Outer Sheath
    Polyvinyl Chloride "PVC", Flame retardant to BS 4066 or equivalent



Installation Conditions:

  1. Air Temperature : 30 Deg.
  2. Ground Temperature: 20 Deg.
  3. Soil Thermal Resistivity : 2.5 k.m/w
  4. Depth of lay : 0.7 m

 All dimensions have tolerance +- 7 %

Marking

no. of cores x conductor sizes mm2 Cu / XLPE / SWA / PVC 600/1000 V BS 5467 BASEC MADE IN QATAR QICC-Nexans Year Meters

Custom marking available



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Insulation
XLPE (chemical)
Inner sheath
PVC
Armour type
Galvanized steel wires
Outer sheath
PVC
Colour
Black
Halogen free
No

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Bending factor when laying
15 (xD)
Bending factor when installed
8 (xD)

Resources

Resources

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
