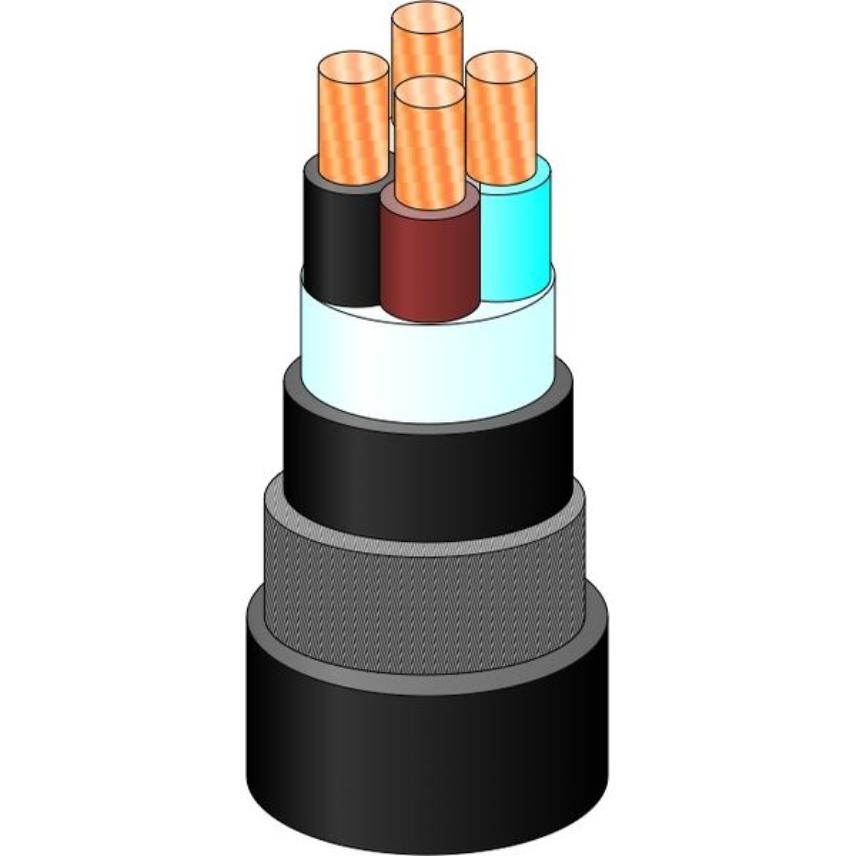

BS LV, PVC Insulation, SWA, PVC 0.6/1KV

Products

2x1.5

Nexans ref. 22002GVZVSB09BD0

  • Packaging: Drum (m)
  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 300 kg/km
  • Nominal outer diameter: 12.0 mm



2x10

Nexans ref. 22010GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 10 mm²
  • Approximate weight: 830 kg/km
  • Nominal outer diameter: 18.0 mm



2x120

Nexans ref. 22120GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 120 mm²
  • Approximate weight: 4780 kg/km
  • Nominal outer diameter: 40.0 mm



2x150

Nexans ref. 22150GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 150 mm²
  • Approximate weight: 6070 kg/km
  • Nominal outer diameter: 45.0 mm



2x16

Nexans ref. 22016GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 16 mm²
  • Approximate weight: 990 kg/km
  • Nominal outer diameter: 20.0 mm



2x185

Nexans ref. 22185GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 185 mm²
  • Approximate weight: 7300 kg/km
  • Nominal outer diameter: 49.0 mm



2x2.5

Nexans ref. 22003GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 350 kg/km
  • Nominal outer diameter: 13.0 mm



2x25

Nexans ref. 22025GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 25 mm²
  • Approximate weight: 1470 kg/km
  • Nominal outer diameter: 23.0 mm



2x35

Nexans ref. 22035GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 35 mm²
  • Approximate weight: 1775 kg/km
  • Nominal outer diameter: 25.0 mm



2x4

Nexans ref. 22004GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 4 mm²
  • Approximate weight: 540 kg/km
  • Nominal outer diameter: 15.0 mm



2x50

Nexans ref. 22050GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 50 mm²
  • Approximate weight: 2260 kg/km
  • Nominal outer diameter: 28.0 mm



2x6

Nexans ref. 22006GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 6 mm²
  • Approximate weight: 620 kg/km
  • Nominal outer diameter: 16.0 mm



2x70

Nexans ref. 22070GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 70 mm²
  • Approximate weight: 3160 kg/km
  • Nominal outer diameter: 33.0 mm



2x95

Nexans ref. 22095GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 95 mm²
  • Approximate weight: 4030 kg/km
  • Nominal outer diameter: 37.0 mm



3x1.5

Nexans ref. 23002GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 340 kg/km
  • Nominal outer diameter: 13.0 mm



3x10

Nexans ref. 23010GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 10 mm²
  • Approximate weight: 940 kg/km
  • Nominal outer diameter: 19.0 mm



3x120

Nexans ref. 23120GVZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 120 mm²
  • Approximate weight: 5095 kg/km
  • Nominal outer diameter: 38.0 mm



3x150

Nexans ref. 23150GVZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 150 mm²
  • Approximate weight: 6450 kg/km
  • Nominal outer diameter: 43.0 mm



3x16

Nexans ref. 23016GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 16 mm²
  • Approximate weight: 1300 kg/km
  • Nominal outer diameter: 21.0 mm



3x185

Nexans ref. 23185GVZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 185 mm²
  • Approximate weight: 7730 kg/km
  • Nominal outer diameter: 47.0 mm



3x2.5

Nexans ref. 23003GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 390 kg/km
  • Nominal outer diameter: 13.0 mm



3x240

Nexans ref. 23240GVZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 240 mm²
  • Approximate weight: 9580 kg/km
  • Nominal outer diameter: 52.0 mm



3x25

Nexans ref. 23025GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 25 mm²
  • Approximate weight: 1770 kg/km
  • Nominal outer diameter: 25.0 mm



3x300

Nexans ref. 23300GVZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 300 mm²
  • Approximate weight: 11760 kg/km
  • Nominal outer diameter: 57.0 mm



3x35

Nexans ref. 23035GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 35 mm²
  • Approximate weight: 2170 kg/km
  • Nominal outer diameter: 27.0 mm



3x4

Nexans ref. 23004GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 4 mm²
  • Approximate weight: 620 kg/km
  • Nominal outer diameter: 16.0 mm



3x50

Nexans ref. 23050GVZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 50 mm²
  • Approximate weight: 2370 kg/km
  • Nominal outer diameter: 28.0 mm



3x6

Nexans ref. 23006GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 6 mm²
  • Approximate weight: 720 kg/km
  • Nominal outer diameter: 17.0 mm



3x70

Nexans ref. 23070GVZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 70 mm²
  • Approximate weight: 3300 kg/km
  • Nominal outer diameter: 32.0 mm



3x95

Nexans ref. 23095GVZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 95 mm²
  • Approximate weight: 4285 kg/km
  • Nominal outer diameter: 36.0 mm



4x1.5

Nexans ref. 24002GVZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 310 kg/km
  • Nominal outer diameter: 13.0 mm



4x10

Nexans ref. 24010GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 10 mm²
  • Approximate weight: 1250 kg/km
  • Nominal outer diameter: 22.0 mm



4x120

Nexans ref. 24120GVZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 120 mm²
  • Approximate weight: 6710 kg/km
  • Nominal outer diameter: 43.0 mm



4x150

Nexans ref. 24150GVZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 150 mm²
  • Approximate weight: 7560 kg/km
  • Nominal outer diameter: 45.0 mm



4x16

Nexans ref. 24016GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 16 mm²
  • Approximate weight: 1530 kg/km
  • Nominal outer diameter: 23.0 mm



4x185

Nexans ref. 24185GVZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 185 mm²
  • Approximate weight: 9770 kg/km
  • Nominal outer diameter: 52.0 mm



4x2.5

Nexans ref. 24003GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 370 kg/km
  • Nominal outer diameter: 14.0 mm



4x240

Nexans ref. 24240GVZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 240 mm²
  • Approximate weight: 12290 kg/km
  • Nominal outer diameter: 58.0 mm



4x25

Nexans ref. 24025GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 25 mm²
  • Approximate weight: 2120 kg/km
  • Nominal outer diameter: 27.0 mm



4x300

Nexans ref. 24300GVZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 300 mm²
  • Approximate weight: 14950 kg/km
  • Nominal outer diameter: 64.0 mm



4x35

Nexans ref. 24035GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 35 mm²
  • Approximate weight: 2620 kg/km
  • Nominal outer diameter: 29.0 mm



4x4

Nexans ref. 24004GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 4 mm²
  • Approximate weight: 460 kg/km
  • Nominal outer diameter: 15.0 mm



4x50

Nexans ref. 24050GVZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 50 mm²
  • Approximate weight: 3120 kg/km
  • Nominal outer diameter: 31.0 mm



4x6

Nexans ref. 24006GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 6 mm²
  • Approximate weight: 650 kg/km
  • Nominal outer diameter: 17.0 mm



4x70

Nexans ref. 24070GVZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 70 mm²
  • Approximate weight: 4050 kg/km
  • Nominal outer diameter: 34.0 mm



4x95

Nexans ref. 24095GVZVSB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 95 mm²
  • Approximate weight: 5595 kg/km
  • Nominal outer diameter: 40.0 mm



5x1.5

Nexans ref. 25002GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 400 kg/km
  • Nominal outer diameter: 14.0 mm



5x10

Nexans ref. 25010GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 10 mm²
  • Approximate weight: 1240 kg/km
  • Nominal outer diameter: 21.0 mm



5x16

Nexans ref. 25016GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 16 mm²
  • Approximate weight: 1810 kg/km
  • Nominal outer diameter: 25.0 mm



5x2.5

Nexans ref. 25003GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 570 kg/km
  • Nominal outer diameter: 16.0 mm



5x25

Nexans ref. 25025GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 25 mm²
  • Approximate weight: 2540 kg/km
  • Nominal outer diameter: 29.0 mm



5x35

Nexans ref. 25035GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 35 mm²
  • Approximate weight: 3420 kg/km
  • Nominal outer diameter: 33.0 mm



5x4

Nexans ref. 25004GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 4 mm²
  • Approximate weight: 820 kg/km
  • Nominal outer diameter: 18.0 mm



5x50

Nexans ref. 25050GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 50 mm²
  • Approximate weight: 3900 kg/km
  • Nominal outer diameter: 37.0 mm



5x6

Nexans ref. 25006GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 6 mm²
  • Approximate weight: 980 kg/km
  • Nominal outer diameter: 20.0 mm



5x70

Nexans ref. 25070GVZVSB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 70 mm²
  • Approximate weight: 5080 kg/km
  • Nominal outer diameter: 42.0 mm



Description

Description

Standards

  • International
    IEC 60332-1
  • National
    BS 6346

Application




These power cables are used for electricity supply in low voltage installation systems.

They are well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plant…)



Design





  1. Conductor
    Stranded bare copper class 2 acc. to BS 6360 and IEC 60228

  2. Insulation
    Polyvinyl chloride "PVC"

  3. Inner Sheath or Bedding
    Extruded PVC

  4. Armour
    Galvanized Steel Wire Armour "SWA"
  1. Outer Sheath
    Polyvinyl Chloride "PVC", Flame retardant to BS 4066 or equivalent



 Installation Conditions:

  1. Air Temperature : 30 Deg.
  2. Ground Temperature: 20 Deg.
  3. Soil Thermal Resistivity : 2.5 k.m/w
  4. Depth of lay : 0.7 m

 All dimensions have tolerance +- 7 %



Marking



no. of cores x conductor sizes mm2 Cu / XLPE / SWA / PVC 600/1000 V Standard MADE IN QATAR QICC-Nexans Year Meters

Custom marking available





Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Insulation
PVC compound
Inner sheath
PVC
Armour type
Galvanized steel wires
Outer sheath
PVC compound
Colour
Black
Conductor flexibility
Stranded class 2
Halogen free
No

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0.6/1 kV

Usage characteristics

Usage characteristics

Max. conductor temperature in service
70 °C
Short-circuit max. conductor temperature
160 °C
Flame retardant
Yes
Bending factor when laying
15 (xD)
Bending factor when installed
8 (xD)

Resources

Resources

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
