BS LV, PVC Insulation, PVC 0.6/1KV

Products

1x 50

Nexans ref. 21050GVZOUB09BD0

  • Packaging: Drum (m)
  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 50 mm²
  • Approximate weight: 525 kg/km
  • Nominal outer diameter: 13.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 174 A
  • Permissible current rating when buried: 156 A
  • Voltage drop, 3 conductors: 0.83 V/A.km



1x120

Nexans ref. 21120GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 120 mm²
  • Approximate weight: 1200 kg/km
  • Nominal outer diameter: 18.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 321 A
  • Permissible current rating when buried: 261 A
  • Voltage drop, 3 conductors: 0.38 V/A.km



1x150

Nexans ref. 21150GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 150 mm²
  • Approximate weight: 1480 kg/km
  • Nominal outer diameter: 20.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 372 A
  • Permissible current rating when buried: 293 A
  • Voltage drop, 3 conductors: 0.33 V/A.km



1x185

Nexans ref. 21185GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 185 mm²
  • Approximate weight: 1840 kg/km
  • Nominal outer diameter: 22.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 427 A
  • Permissible current rating when buried: 331 A
  • Voltage drop, 3 conductors: 0.28 V/A.km



1x240

Nexans ref. 21240GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 240 mm²
  • Approximate weight: 2350 kg/km
  • Nominal outer diameter: 24.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 507 A
  • Permissible current rating when buried: 382 A
  • Voltage drop, 3 conductors: 0.24 V/A.km



1x300

Nexans ref. 21300GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 300 mm²
  • Approximate weight: 2920 kg/km
  • Nominal outer diameter: 27.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Permissible current rating in open air: 587 A
  • Permissible current rating when buried: 427 A
  • Voltage drop, 3 conductors: 0.21 V/A.km



1x400

Nexans ref. 21400GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 400 mm²
  • Approximate weight: 3730 kg/km
  • Nominal outer diameter: 30.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • Permissible current rating in open air: 689 A
  • Permissible current rating when buried: 492 A
  • Voltage drop, 3 conductors: 0.18 V/A.km



1x500

Nexans ref. 21500GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 500 mm²
  • Approximate weight: 4790 kg/km
  • Nominal outer diameter: 34.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km
  • Permissible current rating in open air: 789 A
  • Permissible current rating when buried: 564 A
  • Voltage drop, 3 conductors: 0.16 V/A.km



1x630

Nexans ref. 21630GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 630 mm²
  • Approximate weight: 6010 kg/km
  • Nominal outer diameter: 37.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km
  • Permissible current rating in open air: 905 A
  • Permissible current rating when buried: 646 A
  • Voltage drop, 3 conductors: 0.15 V/A.km



1x70

Nexans ref. 21070GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 70 mm²
  • Approximate weight: 710 kg/km
  • Nominal outer diameter: 15.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 225 A
  • Permissible current rating when buried: 192 A
  • Voltage drop, 3 conductors: 0.6 V/A.km



1x95

Nexans ref. 21095GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 1
  • Conductor cross-section: 95 mm²
  • Approximate weight: 985 kg/km
  • Nominal outer diameter: 16.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 275 A
  • Permissible current rating when buried: 230 A
  • Voltage drop, 3 conductors: 0.46 V/A.km



2x1.5

Nexans ref. 22002GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 170 kg/km
  • Nominal outer diameter: 11.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 19 A
  • Voltage drop, 3 conductors: 22.6 V/A.km



2x10

Nexans ref. 22010GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 10 mm²
  • Approximate weight: 470 kg/km
  • Nominal outer diameter: 16.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 60 A
  • Permissible current rating when buried: 54 A
  • Voltage drop, 3 conductors: 3.5 V/A.km



2x120

Nexans ref. 22120GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 120 mm²
  • Approximate weight: 3455 kg/km
  • Nominal outer diameter: 36.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 276 A
  • Permissible current rating when buried: 220 A
  • Voltage drop, 3 conductors: 0.37 V/A.km



2x150

Nexans ref. 22150GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 150 mm²
  • Approximate weight: 4260 kg/km
  • Nominal outer diameter: 40.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 319 A
  • Permissible current rating when buried: 246 A
  • Voltage drop, 3 conductors: 0.31 V/A.km



2x16

Nexans ref. 22016GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 16 mm²
  • Approximate weight: 630 kg/km
  • Nominal outer diameter: 17.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 80 A
  • Permissible current rating when buried: 70 A
  • Voltage drop, 3 conductors: 2.2 V/A.km



2x185

Nexans ref. 22185GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 185 mm²
  • Approximate weight: 5260 kg/km
  • Nominal outer diameter: 44.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 364 A
  • Permissible current rating when buried: 278 A
  • Voltage drop, 3 conductors: 0.27 V/A.km



2x2.5

Nexans ref. 22003GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 215 kg/km
  • Nominal outer diameter: 11.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 24 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



2x25

Nexans ref. 22025GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 25 mm²
  • Approximate weight: 920 kg/km
  • Nominal outer diameter: 20.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 101 A
  • Permissible current rating when buried: 92 A
  • Voltage drop, 3 conductors: 1.5 V/A.km



2x35

Nexans ref. 22035GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 35 mm²
  • Approximate weight: 1160 kg/km
  • Nominal outer diameter: 22.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 126 A
  • Permissible current rating when buried: 110 A
  • Voltage drop, 3 conductors: 1.1 V/A.km



2x4

Nexans ref. 22004GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 4 mm²
  • Approximate weight: 290 kg/km
  • Nominal outer diameter: 13.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 34 A
  • Permissible current rating when buried: 33 A
  • Voltage drop, 3 conductors: 8.7 V/A.km



2x50

Nexans ref. 22050GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 50 mm²
  • Approximate weight: 1540 kg/km
  • Nominal outer diameter: 25.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 153 A
  • Permissible current rating when buried: 130 A
  • Voltage drop, 3 conductors: 0.81 V/A.km



2x6

Nexans ref. 22006GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 6 mm²
  • Approximate weight: 350 kg/km
  • Nominal outer diameter: 14.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 43 A
  • Permissible current rating when buried: 41 A
  • Voltage drop, 3 conductors: 5.9 V/A.km



2x70

Nexans ref. 22070GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 70 mm²
  • Approximate weight: 2115 kg/km
  • Nominal outer diameter: 29.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 196 A
  • Permissible current rating when buried: 162 A
  • Voltage drop, 3 conductors: 0.58 V/A.km



2x95

Nexans ref. 22095GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 95 mm²
  • Approximate weight: 2840 kg/km
  • Nominal outer diameter: 33.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 238 A
  • Permissible current rating when buried: 193 A
  • Voltage drop, 3 conductors: 0.44 V/A.km



3x1.5

Nexans ref. 23002GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 200 kg/km
  • Nominal outer diameter: 11.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 19 A
  • Voltage drop, 3 conductors: 22.6 V/A.km



3x10

Nexans ref. 23010GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 10 mm²
  • Approximate weight: 540 kg/km
  • Nominal outer diameter: 16.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 60 A
  • Permissible current rating when buried: 54 A
  • Voltage drop, 3 conductors: 3.5 V/A.km



3x120

Nexans ref. 23120GVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 120 mm²
  • Approximate weight: 3650 kg/km
  • Nominal outer diameter: 33.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 276 A
  • Permissible current rating when buried: 220 A
  • Voltage drop, 3 conductors: 0.37 V/A.km



3x150

Nexans ref. 23150GVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 150 mm²
  • Approximate weight: 4490 kg/km
  • Nominal outer diameter: 36.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 319 A
  • Permissible current rating when buried: 246 A
  • Voltage drop, 3 conductors: 0.31 V/A.km



3x16

Nexans ref. 23016GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 16 mm²
  • Approximate weight: 740 kg/km
  • Nominal outer diameter: 17.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 80 A
  • Permissible current rating when buried: 70 A
  • Voltage drop, 3 conductors: 2.2 V/A.km



3x185

Nexans ref. 23185GVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 185 mm²
  • Approximate weight: 5570 kg/km
  • Nominal outer diameter: 40.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 364 A
  • Permissible current rating when buried: 278 A
  • Voltage drop, 3 conductors: 0.27 V/A.km



3x2.5

Nexans ref. 23003GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 250 kg/km
  • Nominal outer diameter: 12.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 24 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



3x240

Nexans ref. 23240GVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 240 mm²
  • Approximate weight: 7040 kg/km
  • Nominal outer diameter: 45.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 430 A
  • Permissible current rating when buried: 320 A
  • Voltage drop, 3 conductors: 0.23 V/A.km



3x25

Nexans ref. 23025GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 25 mm²
  • Approximate weight: 1170 kg/km
  • Nominal outer diameter: 22.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 101 A
  • Permissible current rating when buried: 92 A
  • Voltage drop, 3 conductors: 1.5 V/A.km



3x300

Nexans ref. 23300GVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 300 mm²
  • Approximate weight: 8920 kg/km
  • Nominal outer diameter: 50.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Permissible current rating in open air: 497 A
  • Permissible current rating when buried: 359 A
  • Voltage drop, 3 conductors: 0.2 V/A.km



3x35

Nexans ref. 23035GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 35 mm²
  • Approximate weight: 1490 kg/km
  • Nominal outer diameter: 24.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 126 A
  • Permissible current rating when buried: 110 A
  • Voltage drop, 3 conductors: 1.1 V/A.km



3x4

Nexans ref. 23004GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 4 mm²
  • Approximate weight: 300 kg/km
  • Nominal outer diameter: 13.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 34 A
  • Permissible current rating when buried: 33 A
  • Voltage drop, 3 conductors: 8.7 V/A.km



3x50

Nexans ref. 23050GVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 50 mm²
  • Approximate weight: 1560 kg/km
  • Nominal outer diameter: 23.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 153 A
  • Permissible current rating when buried: 130 A
  • Voltage drop, 3 conductors: 0.81 V/A.km



3x6

Nexans ref. 23006GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 6 mm²
  • Approximate weight: 380 kg/km
  • Nominal outer diameter: 14.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 43 A
  • Permissible current rating when buried: 41 A
  • Voltage drop, 3 conductors: 5.9 V/A.km



3x70

Nexans ref. 23070GVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 70 mm²
  • Approximate weight: 2170 kg/km
  • Nominal outer diameter: 26.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 196 A
  • Permissible current rating when buried: 162 A
  • Voltage drop, 3 conductors: 0.58 V/A.km



3x95

Nexans ref. 23095GVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 95 mm²
  • Approximate weight: 2960 kg/km
  • Nominal outer diameter: 30.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 238 A
  • Permissible current rating when buried: 193 A
  • Voltage drop, 3 conductors: 0.44 V/A.km



4x1.5

Nexans ref. 24002GVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 240 kg/km
  • Nominal outer diameter: 12.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 19 A
  • Voltage drop, 3 conductors: 22.6 V/A.km



4x10

Nexans ref. 24010GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 10 mm²
  • Approximate weight: 570 kg/km
  • Nominal outer diameter: 19.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 60 A
  • Permissible current rating when buried: 54 A
  • Voltage drop, 3 conductors: 3.5 V/A.km



4x120

Nexans ref. 24120GVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 120 mm²
  • Approximate weight: 4760 kg/km
  • Nominal outer diameter: 36.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 276 A
  • Permissible current rating when buried: 220 A
  • Voltage drop, 3 conductors: 0.37 V/A.km



4x150

Nexans ref. 24150GVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 150 mm²
  • Approximate weight: 5860 kg/km
  • Nominal outer diameter: 40.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 319 A
  • Permissible current rating when buried: 246 A
  • Voltage drop, 3 conductors: 0.31 V/A.km



4x16

Nexans ref. 24016GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 16 mm²
  • Approximate weight: 995 kg/km
  • Nominal outer diameter: 20.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 80 A
  • Permissible current rating when buried: 70 A
  • Voltage drop, 3 conductors: 2.2 V/A.km



4x185

Nexans ref. 24185GVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 185 mm²
  • Approximate weight: 7300 kg/km
  • Nominal outer diameter: 45.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 364 A
  • Permissible current rating when buried: 278 A
  • Voltage drop, 3 conductors: 0.27 V/A.km



4x2.5

Nexans ref. 24003GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 295 kg/km
  • Nominal outer diameter: 13.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 24 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



4x240

Nexans ref. 24240GVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 240 mm²
  • Approximate weight: 9490 kg/km
  • Nominal outer diameter: 50.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 430 A
  • Permissible current rating when buried: 320 A
  • Voltage drop, 3 conductors: 0.23 V/A.km



4x25

Nexans ref. 24025GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 25 mm²
  • Approximate weight: 1450 kg/km
  • Nominal outer diameter: 24.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 101 A
  • Permissible current rating when buried: 92 A
  • Voltage drop, 3 conductors: 1.5 V/A.km



4x300

Nexans ref. 24300GVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 300 mm²
  • Approximate weight: 11910 kg/km
  • Nominal outer diameter: 57.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Permissible current rating in open air: 497 A
  • Permissible current rating when buried: 359 A
  • Voltage drop, 3 conductors: 0.2 V/A.km



4x35

Nexans ref. 24035GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 35 mm²
  • Approximate weight: 1860 kg/km
  • Nominal outer diameter: 26.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 126 A
  • Permissible current rating when buried: 110 A
  • Voltage drop, 3 conductors: 1.1 V/A.km



4x4

Nexans ref. 24004GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 4 mm²
  • Approximate weight: 410 kg/km
  • Nominal outer diameter: 15.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 34 A
  • Permissible current rating when buried: 33 A
  • Voltage drop, 3 conductors: 8.7 V/A.km



4x50

Nexans ref. 24050GVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 50 mm²
  • Approximate weight: 2020 kg/km
  • Nominal outer diameter: 25.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 153 A
  • Permissible current rating when buried: 130 A
  • Voltage drop, 3 conductors: 0.81 V/A.km



4x6

Nexans ref. 24006GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 6 mm²
  • Approximate weight: 510 kg/km
  • Nominal outer diameter: 16.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 43 A
  • Permissible current rating when buried: 41 A
  • Voltage drop, 3 conductors: 5.9 V/A.km



4x70

Nexans ref. 24070GVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 70 mm²
  • Approximate weight: 2810 kg/km
  • Nominal outer diameter: 29.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 196 A
  • Permissible current rating when buried: 162 A
  • Voltage drop, 3 conductors: 0.58 V/A.km



4x95

Nexans ref. 24095GVZOUB09BD0

  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 95 mm²
  • Approximate weight: 3830 kg/km
  • Nominal outer diameter: 33.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 238 A
  • Permissible current rating when buried: 193 A
  • Voltage drop, 3 conductors: 0.44 V/A.km



5x1.5

Nexans ref. 25002GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 270 kg/km
  • Nominal outer diameter: 13.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 19 A
  • Voltage drop, 3 conductors: 22.6 V/A.km



5x10

Nexans ref. 25010GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 10 mm²
  • Approximate weight: 870 kg/km
  • Nominal outer diameter: 20.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 60 A
  • Permissible current rating when buried: 54 A
  • Voltage drop, 3 conductors: 3.5 V/A.km



5x16

Nexans ref. 25016GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 16 mm²
  • Approximate weight: 1210 kg/km
  • Nominal outer diameter: 22.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 80 A
  • Permissible current rating when buried: 70 A
  • Voltage drop, 3 conductors: 2.2 V/A.km



5x2.5

Nexans ref. 25003GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 350 kg/km
  • Nominal outer diameter: 14.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 24 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



5x25

Nexans ref. 25025GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 25 mm²
  • Approximate weight: 1780 kg/km
  • Nominal outer diameter: 26.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 101 A
  • Permissible current rating when buried: 92 A
  • Voltage drop, 3 conductors: 1.5 V/A.km



5x35

Nexans ref. 25035GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 35 mm²
  • Approximate weight: 2340 kg/km
  • Nominal outer diameter: 29.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 126 A
  • Permissible current rating when buried: 110 A
  • Voltage drop, 3 conductors: 1.1 V/A.km



5x4

Nexans ref. 25004GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 4 mm²
  • Approximate weight: 490 kg/km
  • Nominal outer diameter: 16.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 34 A
  • Permissible current rating when buried: 33 A
  • Voltage drop, 3 conductors: 8.7 V/A.km



5x50

Nexans ref. 25050GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 50 mm²
  • Approximate weight: 2700 kg/km
  • Nominal outer diameter: 33.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 153 A
  • Permissible current rating when buried: 130 A
  • Voltage drop, 3 conductors: 0.81 V/A.km



5x6

Nexans ref. 25006GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 6 mm²
  • Approximate weight: 620 kg/km
  • Nominal outer diameter: 18.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 43 A
  • Permissible current rating when buried: 41 A
  • Voltage drop, 3 conductors: 5.9 V/A.km



5x70

Nexans ref. 25070GVZOUB09BD0

  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 70 mm²
  • Approximate weight: 3700 kg/km
  • Nominal outer diameter: 38.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 196 A
  • Permissible current rating when buried: 162 A
  • Voltage drop, 3 conductors: 0.58 V/A.km



Description

Description

Standards

  • International
    IEC 60332-1
  • National
    BS 6346

Application


These power cables are used for electricity supply in low voltage installation systems.

They are well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plant…)



Design

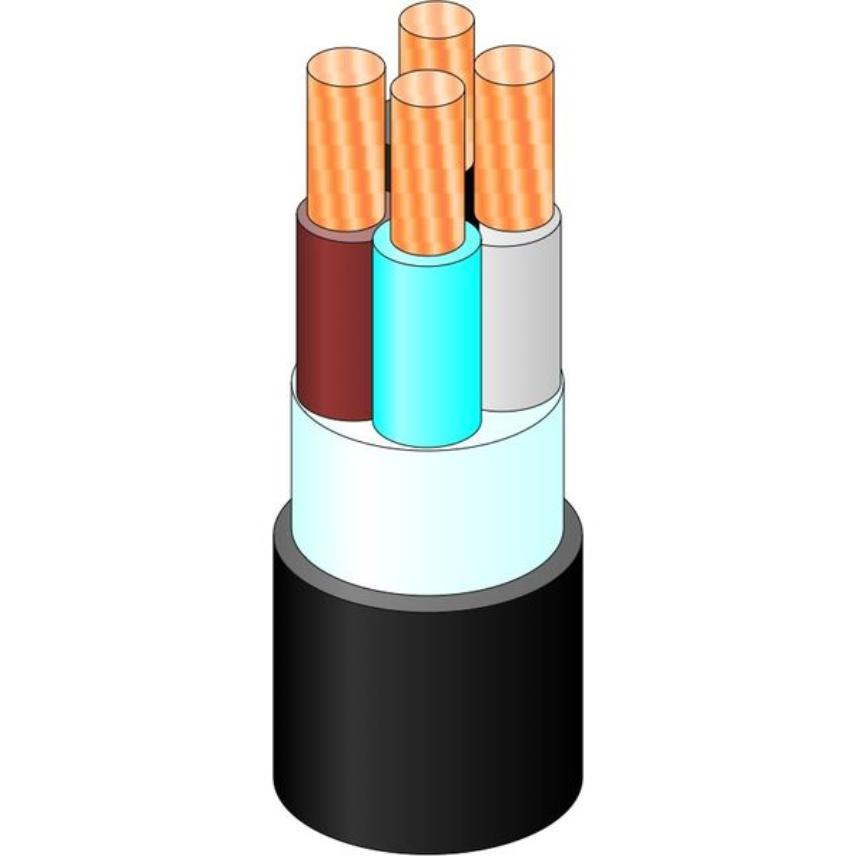

  1. Conductor
    Stranded bare copper class 2 acc. to BS EN 60228

  2. Insulation
    Polyvinyl chloride "PVC"

  3. OuterSheath
    Polyvinyl chloride "PVC"

    Option:

    - Flame retardant, Cat A, Cat B or Cat C to BS 4066 or equivalent.

    - Ozone resistant.

    - Oil resistant.

    - Anti termite.



 Installation Conditions:

  1. Air Temperature : 30 Deg.
  2. Ground Temperature: 20 Deg.
  3. Soil Thermal Resistivity : 2.5 k.m/w
  4. Depth of lay : 0.7 m

 All dimensions have tolerance +- 7 %

Marking

no. of cores x conductor sizes mm2 Cu / PVC / PVC 600/1000 V Standard MADE IN QATAR QICC-Nexans Year Meters

Custom marking available

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Insulation
PVC compound
Armour type
Unarmoured
Outer sheath
PVC
Colour
Black
Conductor flexibility
Stranded class 2
Halogen free
No

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0.6/1 kV

Usage characteristics

Usage characteristics

Max. conductor temperature in service
70 °C
Short-circuit max. conductor temperature
160 °C
Flame retardant
Yes
Bending factor when laying
15 (xD)
Bending factor when installed
8 (xD)

Resources

Resources

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
