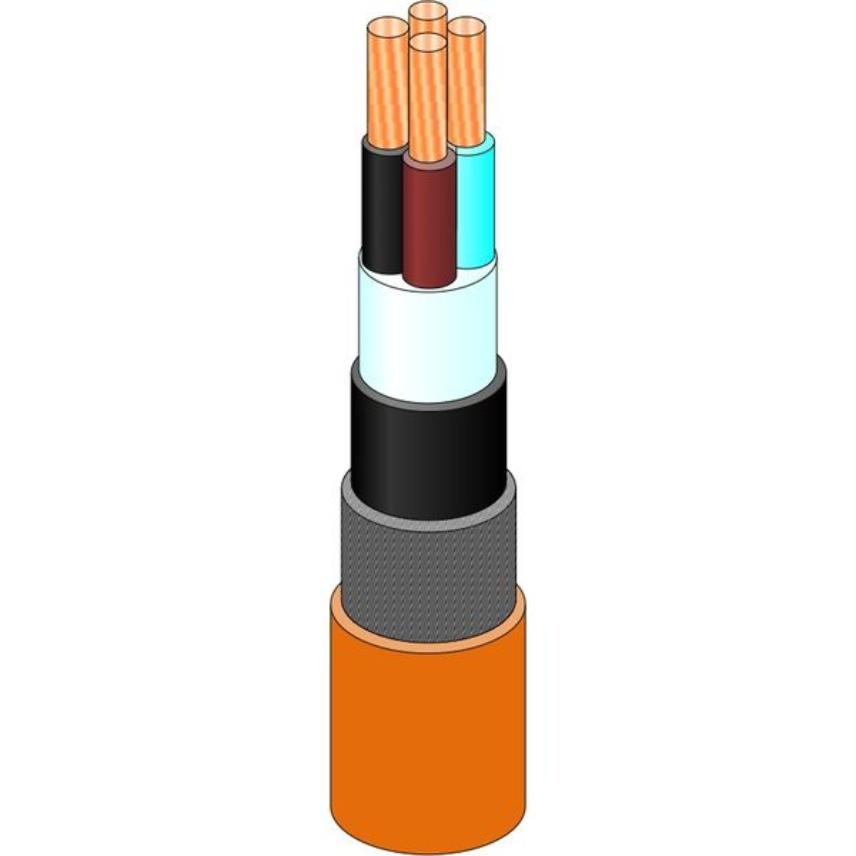

ALSECURE PLUS® NX400 LV, Mica, XLPE, SWA, HFFR 0.6/1 kV

Products

2x1.5

Nexans ref. 22002RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 290 kg/km
  • Nominal outer diameter: 13.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 23 A
  • Voltage drop, 3 conductors: 22.8 V/A.km



2x10

Nexans ref. 22010RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 10 mm²
  • Approximate weight: 720 kg/km
  • Nominal outer diameter: 19.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 78 A
  • Permissible current rating when buried: 65 A
  • Voltage drop, 3 conductors: 3.5 V/A.km



2x120

Nexans ref. 22120RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 120 mm²
  • Approximate weight: 4330 kg/km
  • Nominal outer diameter: 44.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 353 A
  • Permissible current rating when buried: 257 A
  • Voltage drop, 3 conductors: 0.37 V/A.km



2x150

Nexans ref. 22150RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 150 mm²
  • Approximate weight: 5140 kg/km
  • Nominal outer diameter: 47.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 406 A
  • Permissible current rating when buried: 287 A
  • Voltage drop, 3 conductors: 0.3 V/A.km



2x16

Nexans ref. 22016RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 16 mm²
  • Approximate weight: 900 kg/km
  • Nominal outer diameter: 21.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 99 A
  • Permissible current rating when buried: 84 A
  • Voltage drop, 3 conductors: 2.2 V/A.km



2x185

Nexans ref. 22185RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 185 mm²
  • Approximate weight: 6650 kg/km
  • Nominal outer diameter: 54.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 463 A
  • Permissible current rating when buried: 324 A
  • Voltage drop, 3 conductors: 0.26 V/A.km



2x2.5

Nexans ref. 22003RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 340 kg/km
  • Nominal outer diameter: 14.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 33 A
  • Permissible current rating when buried: 30 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



2x25

Nexans ref. 22025RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 25 mm²
  • Approximate weight: 1350 kg/km
  • Nominal outer diameter: 25.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 131 A
  • Permissible current rating when buried: 107 A
  • Voltage drop, 3 conductors: 1.65 V/A.km



2x35

Nexans ref. 22035RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 35 mm²
  • Approximate weight: 1610 kg/km
  • Nominal outer diameter: 27.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 162 A
  • Permissible current rating when buried: 129 A
  • Voltage drop, 3 conductors: 1.15 V/A.km



2x4

Nexans ref. 22004RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 4 mm²
  • Approximate weight: 400 kg/km
  • Nominal outer diameter: 15.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 44 A
  • Permissible current rating when buried: 39 A
  • Voltage drop, 3 conductors: 8.7 V/A.km



2x50

Nexans ref. 22050RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 50 mm²
  • Approximate weight: 2010 kg/km
  • Nominal outer diameter: 31.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 197 A
  • Permissible current rating when buried: 153 A
  • Voltage drop, 3 conductors: 0.89 V/A.km



2x6

Nexans ref. 22006RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 6 mm²
  • Approximate weight: 470 kg/km
  • Nominal outer diameter: 17.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 56 A
  • Permissible current rating when buried: 49 A
  • Voltage drop, 3 conductors: 5.9 V/A.km



2x70

Nexans ref. 22070RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 70 mm²
  • Approximate weight: 2640 kg/km
  • Nominal outer diameter: 35.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 251 A
  • Permissible current rating when buried: 188 A
  • Voltage drop, 3 conductors: 0.6 V/A.km



2x95

Nexans ref. 22095RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 2
  • Conductor cross-section: 95 mm²
  • Approximate weight: 3630 kg/km
  • Nominal outer diameter: 40.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 304 A
  • Permissible current rating when buried: 226 A
  • Voltage drop, 3 conductors: 0.45 V/A.km



3x1.5

Nexans ref. 23002RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 340 kg/km
  • Nominal outer diameter: 14.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 23 A
  • Voltage drop, 3 conductors: 22.8 V/A.km



3x10

Nexans ref. 23010RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 10 mm²
  • Approximate weight: 890 kg/km
  • Nominal outer diameter: 20.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 78 A
  • Permissible current rating when buried: 65 A
  • Voltage drop, 3 conductors: 3.5 V/A.km



3x120

Nexans ref. 23120RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 120 mm²
  • Approximate weight: 5520 kg/km
  • Nominal outer diameter: 42.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 353 A
  • Permissible current rating when buried: 257 A
  • Voltage drop, 3 conductors: 0.37 V/A.km



3x150

Nexans ref. 23150RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 150 mm²
  • Approximate weight: 7030 kg/km
  • Nominal outer diameter: 48.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 406 A
  • Permissible current rating when buried: 287 A
  • Voltage drop, 3 conductors: 0.3 V/A.km



3x16

Nexans ref. 23016RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 16 mm²
  • Approximate weight: 1150 kg/km
  • Nominal outer diameter: 22.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 99 A
  • Permissible current rating when buried: 84 A
  • Voltage drop, 3 conductors: 2.2 V/A.km



3x185

Nexans ref. 23185RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 185 mm²
  • Approximate weight: 8410 kg/km
  • Nominal outer diameter: 52.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 463 A
  • Permissible current rating when buried: 324 A
  • Voltage drop, 3 conductors: 0.26 V/A.km



3x2.5

Nexans ref. 23003RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 400 kg/km
  • Nominal outer diameter: 15.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 33 A
  • Permissible current rating when buried: 30 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



3x240

Nexans ref. 23240RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 240 mm²
  • Approximate weight: 10480 kg/km
  • Nominal outer diameter: 58.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 546 A
  • Permissible current rating when buried: 375 A
  • Voltage drop, 3 conductors: 0.21 V/A.km



3x25

Nexans ref. 23025RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 25 mm²
  • Approximate weight: 1700 kg/km
  • Nominal outer diameter: 27.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 131 A
  • Permissible current rating when buried: 107 A
  • Voltage drop, 3 conductors: 1.65 V/A.km



3x300

Nexans ref. 23300RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 300 mm²
  • Approximate weight: 12770 kg/km
  • Nominal outer diameter: 63.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Permissible current rating in open air: 628 A
  • Permissible current rating when buried: 419 A
  • Voltage drop, 3 conductors: 0.18 V/A.km



3x35

Nexans ref. 23035RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 35 mm²
  • Approximate weight: 2070 kg/km
  • Nominal outer diameter: 30.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 162 A
  • Permissible current rating when buried: 129 A
  • Voltage drop, 3 conductors: 1.15 V/A.km



3x4

Nexans ref. 23004RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 4 mm²
  • Approximate weight: 480 kg/km
  • Nominal outer diameter: 17.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 44 A
  • Permissible current rating when buried: 39 A
  • Voltage drop, 3 conductors: 8.7 V/A.km



3x400

Nexans ref. 23400RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 400 mm²
  • Approximate weight: 15830 kg/km
  • Nominal outer diameter: 70.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • Permissible current rating in open air: 731 A
  • Permissible current rating when buried: 439 A
  • Voltage drop, 3 conductors: 0.17 V/A.km



3x50

Nexans ref. 23050RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 50 mm²
  • Approximate weight: 2520 kg/km
  • Nominal outer diameter: 30.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 197 A
  • Permissible current rating when buried: 153 A
  • Voltage drop, 3 conductors: 0.89 V/A.km



3x6

Nexans ref. 23006RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 6 mm²
  • Approximate weight: 580 kg/km
  • Nominal outer diameter: 18.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 56 A
  • Permissible current rating when buried: 49 A
  • Voltage drop, 3 conductors: 5.9 V/A.km



3x70

Nexans ref. 23070RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 3
  • Conductor cross-section: 70 mm²
  • Approximate weight: 3570 kg/km
  • Nominal outer diameter: 35.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 251 A
  • Permissible current rating when buried: 188 A
  • Voltage drop, 3 conductors: 0.6 V/A.km



3x95

Nexans ref. 23095RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Sector-shaped
  • Number of cores: 3
  • Conductor cross-section: 95 mm²
  • Approximate weight: 4570 kg/km
  • Nominal outer diameter: 39.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 304 A
  • Permissible current rating when buried: 226 A
  • Voltage drop, 3 conductors: 0.45 V/A.km



4x1.5

Nexans ref. 24002RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 200 kg/km
  • Nominal outer diameter: 13.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 23 A
  • Voltage drop, 3 conductors: 22.8 V/A.km



4x10

Nexans ref. 24010RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 10 mm²
  • Approximate weight: 1060 kg/km
  • Nominal outer diameter: 21.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 78 A
  • Permissible current rating when buried: 65 A
  • Voltage drop, 3 conductors: 3.5 V/A.km



4x120

Nexans ref. 24120RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 120 mm²
  • Approximate weight: 7280 kg/km
  • Nominal outer diameter: 47.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 353 A
  • Permissible current rating when buried: 257 A
  • Voltage drop, 3 conductors: 0.37 V/A.km



4x150

Nexans ref. 24150RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 150 mm²
  • Approximate weight: 8700 kg/km
  • Nominal outer diameter: 52.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 406 A
  • Permissible current rating when buried: 287 A
  • Voltage drop, 3 conductors: 0.3 V/A.km



4x16

Nexans ref. 24016RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 16 mm²
  • Approximate weight: 1500 kg/km
  • Nominal outer diameter: 25.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 99 A
  • Permissible current rating when buried: 84 A
  • Voltage drop, 3 conductors: 2.2 V/A.km



4x185

Nexans ref. 24185RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 185 mm²
  • Approximate weight: 10570 kg/km
  • Nominal outer diameter: 57.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 463 A
  • Permissible current rating when buried: 324 A
  • Voltage drop, 3 conductors: 0.26 V/A.km



4x2.5

Nexans ref. 24003RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 420 kg/km
  • Nominal outer diameter: 15.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 33 A
  • Permissible current rating when buried: 30 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



4x240

Nexans ref. 24240RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 240 mm²
  • Approximate weight: 13370 kg/km
  • Nominal outer diameter: 64.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 546 A
  • Permissible current rating when buried: 375 A
  • Voltage drop, 3 conductors: 0.21 V/A.km



4x25

Nexans ref. 24025RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 25 mm²
  • Approximate weight: 2070 kg/km
  • Nominal outer diameter: 30.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 131 A
  • Permissible current rating when buried: 107 A
  • Voltage drop, 3 conductors: 1.65 V/A.km



4x300

Nexans ref. 24300RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 300 mm²
  • Approximate weight: 16230 kg/km
  • Nominal outer diameter: 71.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Permissible current rating in open air: 628 A
  • Permissible current rating when buried: 419 A
  • Voltage drop, 3 conductors: 0.18 V/A.km



4x35

Nexans ref. 24035RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 35 mm²
  • Approximate weight: 2550 kg/km
  • Nominal outer diameter: 32.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 162 A
  • Permissible current rating when buried: 129 A
  • Voltage drop, 3 conductors: 1.15 V/A.km



4x4

Nexans ref. 24004RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 4 mm²
  • Approximate weight: 510 kg/km
  • Nominal outer diameter: 17.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 44 A
  • Permissible current rating when buried: 39 A
  • Voltage drop, 3 conductors: 8.7 V/A.km



4x400

Nexans ref. 24400RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 400 mm²
  • Approximate weight: 21230 kg/km
  • Nominal outer diameter: 79.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • Permissible current rating in open air: 731 A
  • Permissible current rating when buried: 439 A
  • Voltage drop, 3 conductors: 0.17 V/A.km



4x50

Nexans ref. 24050RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 50 mm²
  • Approximate weight: 3080 kg/km
  • Nominal outer diameter: 32.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 197 A
  • Permissible current rating when buried: 153 A
  • Voltage drop, 3 conductors: 0.89 V/A.km



4x6

Nexans ref. 24006RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 4
  • Conductor cross-section: 6 mm²
  • Approximate weight: 750 kg/km
  • Nominal outer diameter: 19.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 56 A
  • Permissible current rating when buried: 49 A
  • Voltage drop, 3 conductors: 5.9 V/A.km



4x70

Nexans ref. 24070RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 70 mm²
  • Approximate weight: 4420 kg/km
  • Nominal outer diameter: 38.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 251 A
  • Permissible current rating when buried: 188 A
  • Voltage drop, 3 conductors: 0.6 V/A.km



4x95

Nexans ref. 24095RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Sector-shaped
  • Number of cores: 4
  • Conductor cross-section: 95 mm²
  • Approximate weight: 5650 kg/km
  • Nominal outer diameter: 41.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 304 A
  • Permissible current rating when buried: 226 A
  • Voltage drop, 3 conductors: 0.45 V/A.km



5x1.5

Nexans ref. 25002RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 450 kg/km
  • Nominal outer diameter: 15.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 23 A
  • Voltage drop, 3 conductors: 22.8 V/A.km



5x10

Nexans ref. 25010RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 10 mm²
  • Approximate weight: 1250 kg/km
  • Nominal outer diameter: 24.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 78 A
  • Permissible current rating when buried: 65 A
  • Voltage drop, 3 conductors: 3.5 V/A.km



5x16

Nexans ref. 25016RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 16 mm²
  • Approximate weight: 1780 kg/km
  • Nominal outer diameter: 27.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 99 A
  • Permissible current rating when buried: 84 A
  • Voltage drop, 3 conductors: 2.2 V/A.km



5x2.5

Nexans ref. 25003RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 540 kg/km
  • Nominal outer diameter: 17.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 33 A
  • Permissible current rating when buried: 30 A
  • Voltage drop, 3 conductors: 14.0 V/A.km



5x25

Nexans ref. 25025RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 25 mm²
  • Approximate weight: 2490 kg/km
  • Nominal outer diameter: 32.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 131 A
  • Permissible current rating when buried: 107 A
  • Voltage drop, 3 conductors: 1.65 V/A.km



5x35

Nexans ref. 25035RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 35 mm²
  • Approximate weight: 3040 kg/km
  • Nominal outer diameter: 34.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 162 A
  • Permissible current rating when buried: 129 A
  • Voltage drop, 3 conductors: 1.15 V/A.km



5x4

Nexans ref. 25004RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 4 mm²
  • Approximate weight: 770 kg/km
  • Nominal outer diameter: 19.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 44 A
  • Permissible current rating when buried: 39 A
  • Voltage drop, 3 conductors: 8.7 V/A.km



5x50

Nexans ref. 25050RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 50 mm²
  • Approximate weight: 4180 kg/km
  • Nominal outer diameter: 40.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 197 A
  • Permissible current rating when buried: 153 A
  • Voltage drop, 3 conductors: 0.89 V/A.km



5x6

Nexans ref. 25006RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 6 mm²
  • Approximate weight: 940 kg/km
  • Nominal outer diameter: 21.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 56 A
  • Permissible current rating when buried: 49 A
  • Voltage drop, 3 conductors: 5.9 V/A.km



5x70

Nexans ref. 25070RXZHSH34BD0

  • Packaging: Cut to length (m)
  • Conductor shape: Circular
  • Number of cores: 5
  • Conductor cross-section: 70 mm²
  • Approximate weight: 5600 kg/km
  • Nominal outer diameter: 46.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 251 A
  • Permissible current rating when buried: 188 A
  • Voltage drop, 3 conductors: 0.6 V/A.km



Description

Description

Standards

  • International
    IEC 60331-21
  • National
    BS 6387 CWZ; BS 7846

Application


Refineries, Mines, Hotels, Schools, Tunnels, High construction, Hospitals, Power plants, Data processing centers, Business centers where there is concentration of sensitive to fire



Design



  1. Conductor
    Stranded bare copper class 2 acc. to EN 60228

  2. Fire Barrier
    Mica Glass tape

  3. Insulation
    Cross Linked Polyethylene "XLPE"

  4. Inner Sheath or Bedding
    Lapped bedding or extruded HFFR

  5. Armour
    Galvanized Steel Wire Armour "SWA"
  1. Outer Sheath
    Halogen Free Flame retardant "HFFR".

      Options :

             - Flame retardant : "CAT A, CAT B, CAT C" to BS 4066 or equivalent.

             - Ozone resistant.

             - Oil resistant.

             - Anti termite.

Fire test :

As per BS 6387 :

C-Resistance to fire at 950 Deg for 180 mins.

W-Resistanace to fire and water at 650 Deg for 30 mins.

Z-Resistance to fire and mechanical shock at 950 Deg for 15 mins.



 Installation Conditions:

  1. Air Temperature : 30 Deg.
  2. Ground Temperature: 20 Deg.
  3. Soil Thermal Resistivity : 2.5 k.m/w
  4. Depth of lay : 0.7 m

 All dimensions have tolerance +- 7 %

Marking

no. of cores x conductor sizes mm2 Cu / Mica / XLPE / SWA / HFFR 600/1000 V BS 7846   BS 6387 LPCB  MADE IN QATAR QICC-Nexans Year Meters

Custom marking available

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Insulation
XLPE (Cross-linked Polyethylene)
Inner sheath
Halogen free flame retardant
Armour type
Galvanized steel wires
Outer sheath
HFFR (Halogene Free Flame Retardant)
Colour
Black
Halogen free
Yes
Conductor flexibility
Stranded class 2

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0.6/1 kV

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Flame retardant
Yes
Bending factor when laying
10 (xD)
Bending factor when installed
20 (xD)
Smoke density
IEC 61034
Gases corrosivity
IEC 60754-2
Gases toxicity
No toxicity to IEC 60754-1
Fire resistant
IEC 60331-21

Resources

Resources

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
