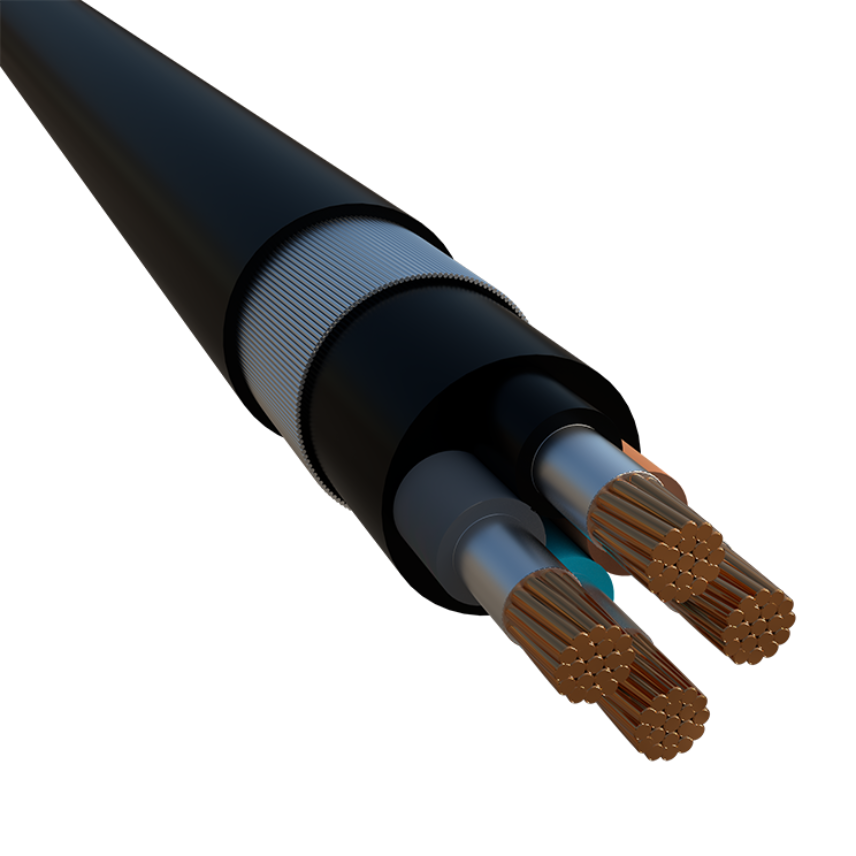

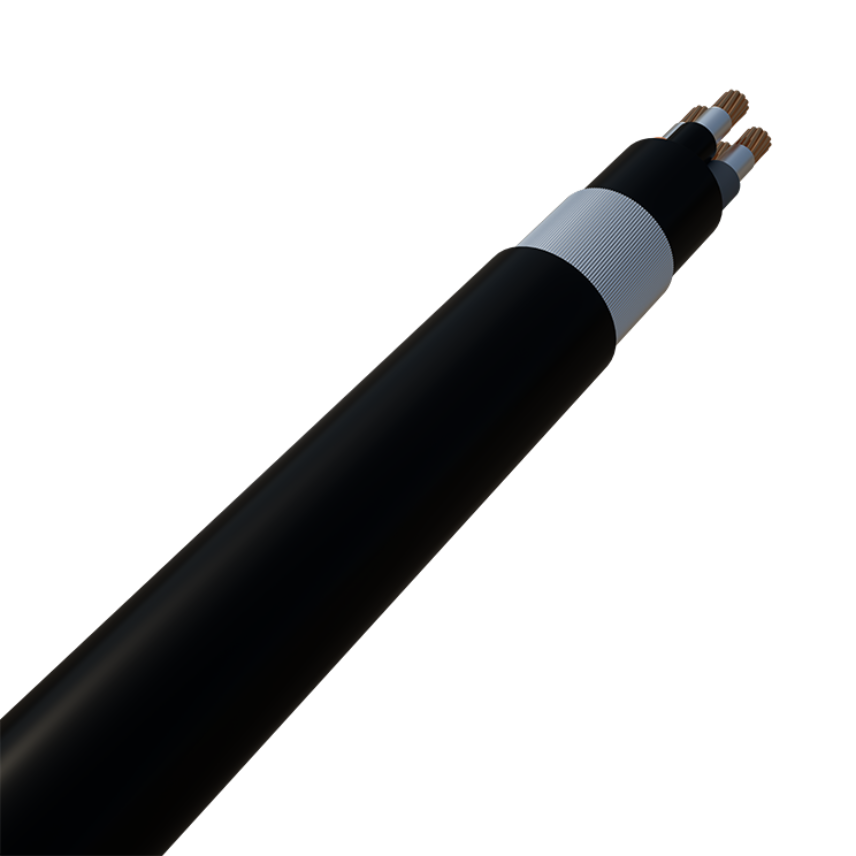

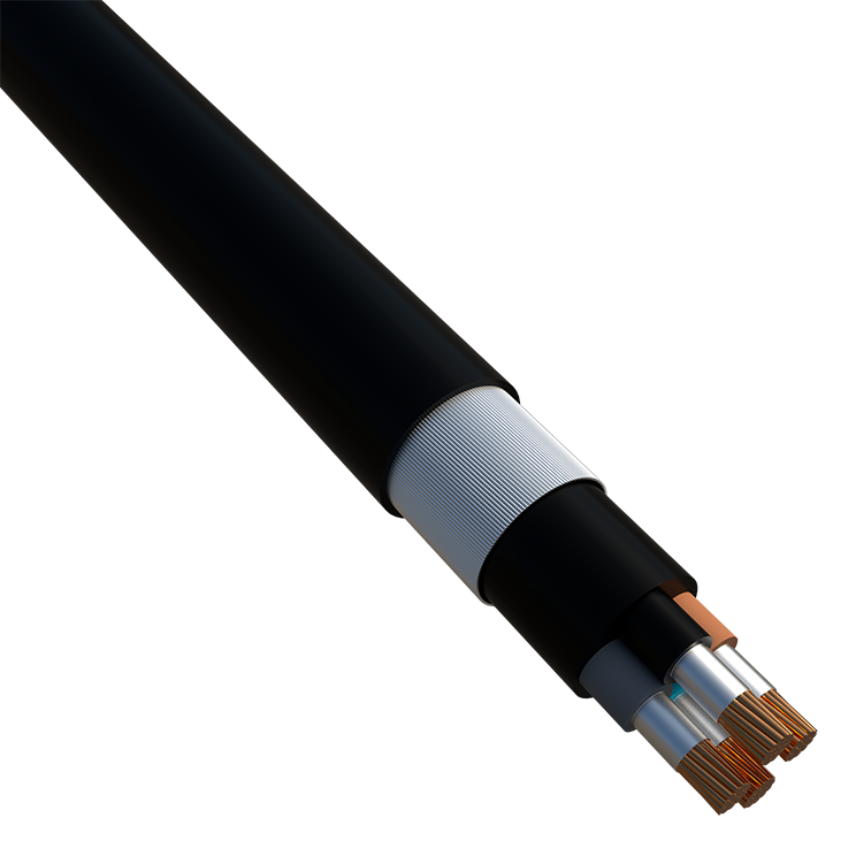

ALSECURE PLUS® NX400 BS 7846-F2 Armoured Cables

Products

NX400 10x1.5 mm2 BS 7846 - F2

Nexans ref. 10535861 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 10
  • Approximate weight: 900 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer diameter: 24.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating clipped direct: 12 A
  • Permissible current rating in open air: 14 A
  • Permissible current rating when buried: 11 A
  • Permissible short circuit current conductor 1s: 0.2 kA
  • Voltage Drop: 31.0 V/A.km



NX400 10x2.5 mm2 BS 7846 - F2

Nexans ref. 10535864 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 10
  • Approximate weight: 1100 kg/km
  • Conductor cross-section: 2.5 mm²
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer diameter: 25.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating clipped direct: 17 A
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 15 A
  • Permissible short circuit current conductor 1s: 0.4 kA
  • Voltage Drop: 19.0 V/A.km



NX400 10x4 mm2 BS 7846 - F2

Nexans ref. 10535867 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 10
  • Approximate weight: 1400 kg/km
  • Conductor cross-section: 4 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 28.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating clipped direct: 23 A
  • Permissible current rating in open air: 24 A
  • Permissible current rating when buried: 20 A
  • Permissible short circuit current conductor 1s: 0.6 kA
  • Voltage Drop: 12.0 V/A.km



NX400 12x1.5 mm2 BS 7846 - F2

Nexans ref. 10527024 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 12
  • Approximate weight: 900 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer diameter: 24.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating clipped direct: 12 A
  • Permissible current rating in open air: 13 A
  • Permissible current rating when buried: 11 A
  • Permissible short circuit current conductor 1s: 0.2 kA
  • Voltage Drop: 31.0 V/A.km



NX400 12x2.5 mm2 BS 7846 - F2

Nexans ref. 10531448 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 12
  • Approximate weight: 1100 kg/km
  • Conductor cross-section: 2.5 mm²
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer diameter: 25.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating clipped direct: 16 A
  • Permissible current rating in open air: 17 A
  • Permissible current rating when buried: 14 A
  • Permissible short circuit current conductor 1s: 0.4 kA
  • Voltage Drop: 19.0 V/A.km



NX400 12x4 mm2 BS 7846 - F2

Nexans ref. 10535869 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 12
  • Approximate weight: 1400 kg/km
  • Conductor cross-section: 4 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 28.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating clipped direct: 22 A
  • Permissible current rating in open air: 23 A
  • Permissible current rating when buried: 19 A
  • Permissible short circuit current conductor 1s: 0.6 kA
  • Voltage Drop: 12.0 V/A.km



NX400 19x1.5 mm2 BS 7846 - F2

Nexans ref. 10535870 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 19
  • Approximate weight: 1200 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer diameter: 27.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating clipped direct: 10 A
  • Permissible current rating in open air: 11 A
  • Permissible current rating when buried: 9 A
  • Permissible short circuit current conductor 1s: 0.2 kA
  • Voltage Drop: 31.0 V/A.km



NX400 19x2.5 mm2 BS 7846 - F2

Nexans ref. 10531468 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 19
  • Approximate weight: 1600 kg/km
  • Conductor cross-section: 2.5 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 30.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating clipped direct: 13 A
  • Permissible current rating in open air: 14 A
  • Permissible current rating when buried: 12 A
  • Permissible short circuit current conductor 1s: 0.4 kA
  • Voltage Drop: 19.0 V/A.km



NX400 19x4 mm2 BS 7846 - F2

Nexans ref. 10535872 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 19
  • Approximate weight: 2000 kg/km
  • Conductor cross-section: 4 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 33.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating clipped direct: 18 A
  • Permissible current rating in open air: 19 A
  • Permissible current rating when buried: 16 A
  • Permissible short circuit current conductor 1s: 0.6 kA
  • Voltage Drop: 12.0 V/A.km



NX400 27x1.5 mm2 BS 7846 - F2

Nexans ref. 10536187 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 27
  • Approximate weight: 1700 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 32.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating clipped direct: 9 A
  • Permissible current rating in open air: 10 A
  • Permissible current rating when buried: 8 A
  • Permissible short circuit current conductor 1s: 0.2 kA
  • Voltage Drop: 31.0 V/A.km



NX400 27x1.5 mm2 BS 7846 - F2

Nexans ref. 10562830

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 27
  • Approximate weight: 1530 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal armour wire diameter: - mm
  • Nominal outer diameter: 31.1 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating clipped direct: - A
  • Permissible current rating in open air: - A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: - kA
  • Voltage Drop: - V/A.km



NX400 27x2.5 mm2 BS 7846 - F2

Nexans ref. 10536188 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 27
  • Approximate weight: 2000 kg/km
  • Conductor cross-section: 2.5 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 35.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating clipped direct: 12 A
  • Permissible current rating in open air: 13 A
  • Permissible current rating when buried: 11 A
  • Permissible short circuit current conductor 1s: 0.4 kA
  • Voltage Drop: 19.0 V/A.km



NX400 2x1.5 mm2 BS 7846 - F2

Nexans ref. 10518579 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Brown, Blue
  • Number of cores: 2
  • Approximate weight: 320 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal armour wire diameter: 0.9 mm
  • Nominal outer diameter: 13.8 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating clipped direct: 27 A
  • Permissible current rating in open air: 29 A
  • Permissible current rating when buried: 25 A
  • Permissible short circuit current conductor 1s: 0.2 kA
  • Voltage Drop: 31.0 V/A.km



NX400 2x10 mm2 BS 7846 - F2

Nexans ref. 10518574 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Brown, Blue
  • Number of cores: 2
  • Approximate weight: 650 kg/km
  • Conductor cross-section: 10 mm²
  • Nominal armour wire diameter: 0.9 mm
  • Nominal outer diameter: 18.7 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating clipped direct: 85 A
  • Permissible current rating in open air: 90 A
  • Permissible current rating when buried: 71 A
  • Permissible short circuit current conductor 1s: 1.4 kA
  • Voltage Drop: 4.7 V/A.km



NX400 2x16 mm2 BS 7846 - F2

Nexans ref. 10516766 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Brown, Blue
  • Number of cores: 2
  • Approximate weight: 900 kg/km
  • Conductor cross-section: 16 mm²
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer diameter: 20.7 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating clipped direct: 110 A
  • Permissible current rating in open air: 115 A
  • Permissible current rating when buried: 91 A
  • Permissible short circuit current conductor 1s: 2.3 kA
  • Voltage Drop: 2.9 V/A.km



NX400 2x2.5 mm2 BS 7846 - F2

Nexans ref. 10518577 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Brown, Blue
  • Number of cores: 2
  • Approximate weight: 380 kg/km
  • Conductor cross-section: 2.5 mm²
  • Nominal armour wire diameter: 0.9 mm
  • Nominal outer diameter: 14.6 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating clipped direct: 36 A
  • Permissible current rating in open air: 39 A
  • Permissible current rating when buried: 33 A
  • Permissible short circuit current conductor 1s: 0.4 kA
  • Voltage Drop: 19.0 V/A.km



NX400 2x25 mm2 BS 7846 - F2

Nexans ref. 10516765 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Brown, Blue
  • Number of cores: 2
  • Approximate weight: 1200 kg/km
  • Conductor cross-section: 25 mm²
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer diameter: 23.8 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating clipped direct: 146 A
  • Permissible current rating in open air: 152 A
  • Permissible current rating when buried: 116 A
  • Permissible short circuit current conductor 1s: 3.6 kA
  • Voltage Drop: 1.9 V/A.km



NX400 2x35 mm2 BS 7846 - F2

Nexans ref. 10516764 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Brown, Blue
  • Number of cores: 2
  • Approximate weight: 1700 kg/km
  • Conductor cross-section: 35 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 26.7 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating clipped direct: 180 A
  • Permissible current rating in open air: 188 A
  • Permissible current rating when buried: 162 A
  • Permissible short circuit current conductor 1s: 5 kA
  • Voltage Drop: 1.35 V/A.km



NX400 2x4 mm2 BS 7846 - F2

Nexans ref. 10518576 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Brown, Blue
  • Number of cores: 2
  • Approximate weight: 440 kg/km
  • Conductor cross-section: 4 mm²
  • Nominal armour wire diameter: 0.9 mm
  • Nominal outer diameter: 15.7 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating clipped direct: 49 A
  • Permissible current rating in open air: 52 A
  • Permissible current rating when buried: 43 A
  • Permissible short circuit current conductor 1s: 0.6 kA
  • Voltage Drop: 12.0 V/A.km



NX400 2x50 mm2 BS 7846 - F2

Nexans ref. 10516763 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Brown, Blue
  • Number of cores: 2
  • Approximate weight: 1700 kg/km
  • Conductor cross-section: 50 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 24.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating clipped direct: 219 A
  • Permissible current rating in open air: 228 A
  • Permissible current rating when buried: 197 A
  • Permissible short circuit current conductor 1s: 7.2 kA
  • Voltage Drop: 1.0 V/A.km



NX400 2x6 mm2 BS 7846 - F2

Nexans ref. 10518575 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Brown, Blue
  • Number of cores: 2
  • Approximate weight: 550 kg/km
  • Conductor cross-section: 6 mm²
  • Nominal armour wire diameter: 0.9 mm
  • Nominal outer diameter: 17.3 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating clipped direct: 62 A
  • Permissible current rating in open air: 66 A
  • Permissible current rating when buried: 53 A
  • Permissible short circuit current conductor 1s: 0.9 kA
  • Voltage Drop: 7.9 V/A.km



NX400 2x70 mm2 BS 7846 - F2

Nexans ref. 10516762 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Brown, Blue
  • Number of cores: 2
  • Approximate weight: 2250 kg/km
  • Conductor cross-section: 70 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 27.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating clipped direct: 279 A
  • Permissible current rating in open air: 291 A
  • Permissible current rating when buried: 251 A
  • Permissible short circuit current conductor 1s: 10 kA
  • Voltage Drop: 0.69 V/A.km



NX400 2x95 mm2 BS 7846 - F2

Nexans ref. 10517794 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Brown, Blue
  • Number of cores: 2
  • Approximate weight: 3000 kg/km
  • Conductor cross-section: 95 mm²
  • Nominal armour wire diameter: 2 mm
  • Nominal outer diameter: 31.7 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating clipped direct: 338 A
  • Permissible current rating in open air: 354 A
  • Permissible current rating when buried: 239 A
  • Permissible short circuit current conductor 1s: 13.6 kA
  • Voltage Drop: 0.52 V/A.km



NX400 37x1.5 mm2 BS 7846 - F2

Nexans ref. 10536189 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 37
  • Approximate weight: 2000 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 36.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating clipped direct: 8 A
  • Permissible current rating in open air: 9 A
  • Permissible current rating when buried: 7 A
  • Permissible short circuit current conductor 1s: 0.2 kA
  • Voltage Drop: 31.0 V/A.km



NX400 37x2.5 mm2 BS 7846 - F2

Nexans ref. 10536190 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 37
  • Approximate weight: 2500 kg/km
  • Conductor cross-section: 2.5 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 39.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating clipped direct: 11 A
  • Permissible current rating in open air: 11 A
  • Permissible current rating when buried: 10 A
  • Permissible short circuit current conductor 1s: 0.4 kA
  • Voltage Drop: 19.0 V/A.km



NX400 3G1.5 mm2 BS 7846 - F2

Nexans ref. 10562831

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: -
  • Number of cores: 3
  • Approximate weight: 330 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal armour wire diameter: - mm
  • Nominal outer diameter: 14.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating clipped direct: - A
  • Permissible current rating in open air: - A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: - kA
  • Voltage Drop: - V/A.km



NX400 3G1.5 mm2 BS 7846 - F2

Nexans ref. 10565131

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: -
  • Number of cores: 3
  • Approximate weight: 330 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal armour wire diameter: - mm
  • Nominal outer diameter: 14.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating clipped direct: - A
  • Permissible current rating in open air: - A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: - kA
  • Voltage Drop: - V/A.km



NX400 3G2.5 mm2 BS 7846 - F2

Nexans ref. 10564463

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: -
  • Number of cores: 3
  • Approximate weight: 390 kg/km
  • Conductor cross-section: 2.5 mm²
  • Nominal armour wire diameter: - mm
  • Nominal outer diameter: 14.9 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating clipped direct: - A
  • Permissible current rating in open air: - A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: - kA
  • Voltage Drop: - V/A.km



NX400 3G2.5 mm2 BS 7846 - F2

Nexans ref. 10563413

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: -
  • Number of cores: 3
  • Approximate weight: 390 kg/km
  • Conductor cross-section: 2.5 mm²
  • Nominal armour wire diameter: - mm
  • Nominal outer diameter: 14.9 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating clipped direct: - A
  • Permissible current rating in open air: - A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: - kA
  • Voltage Drop: - V/A.km



NX400 3G4 mm2 BS 7846 - F2

Nexans ref. 10564462

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: -
  • Number of cores: 3
  • Approximate weight: 480 kg/km
  • Conductor cross-section: 4 mm²
  • Nominal armour wire diameter: - mm
  • Nominal outer diameter: 16.4 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating clipped direct: - A
  • Permissible current rating in open air: - A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: - kA
  • Voltage Drop: - V/A.km



NX400 3G6 mm2 BS 7846 - F2

Nexans ref. 10566728

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: -
  • Number of cores: 3
  • Approximate weight: 570 kg/km
  • Conductor cross-section: 6 mm²
  • Nominal armour wire diameter: - mm
  • Nominal outer diameter: 17.6 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating clipped direct: - A
  • Permissible current rating in open air: - A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: - kA
  • Voltage Drop: - V/A.km



NX400 3x1.5 mm2 BS 7846 - F2

Nexans ref. 10517795 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Brown, black, grey
  • Number of cores: 3
  • Approximate weight: 360 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal armour wire diameter: 0.9 mm
  • Nominal outer diameter: 14.4 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating clipped direct: 23 A
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 21 A
  • Permissible short circuit current conductor 1s: 0.2 kA
  • Voltage Drop: 27.0 V/A.km



NX400 3x10 mm2 BS 7846 - F2

Nexans ref. 10518624 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Brown, black, grey
  • Number of cores: 3
  • Approximate weight: 900 kg/km
  • Conductor cross-section: 10 mm²
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer diameter: 20.4 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating clipped direct: 73 A
  • Permissible current rating in open air: 78 A
  • Permissible current rating when buried: 58 A
  • Permissible short circuit current conductor 1s: 1.4 kA
  • Voltage Drop: 4.0 V/A.km



NX400 3x120 mm2 BS 7846 - F2

Nexans ref. 10517963 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Brown, black, grey
  • Number of cores: 3
  • Approximate weight: 5000 kg/km
  • Conductor cross-section: 120 mm²
  • Nominal armour wire diameter: 2 mm
  • Nominal outer diameter: 40.7 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating clipped direct: 335 A
  • Permissible current rating in open air: 353 A
  • Permissible current rating when buried: 223 A
  • Permissible short circuit current conductor 1s: 17.2 kA
  • Voltage Drop: 0.37 V/A.km



NX400 3x150 mm2 BS 7846 - F2

Nexans ref. 10516767 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Brown, black, grey
  • Number of cores: 3
  • Approximate weight: 6500 kg/km
  • Conductor cross-section: 150 mm²
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer diameter: 45.6 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating clipped direct: 386 A
  • Permissible current rating in open air: 406 A
  • Permissible current rating when buried: 251 A
  • Permissible short circuit current conductor 1s: 21.4 kA
  • Voltage Drop: 0.3 V/A.km



NX400 3x16 mm2 BS 7846 - F2

Nexans ref. 10518625 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Brown, black, grey
  • Number of cores: 3
  • Approximate weight: 1100 kg/km
  • Conductor cross-section: 16 mm²
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer diameter: 21.8 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating clipped direct: 94 A
  • Permissible current rating in open air: 99 A
  • Permissible current rating when buried: 75 A
  • Permissible short circuit current conductor 1s: 2.3 kA
  • Voltage Drop: 2.5 V/A.km



NX400 3x185 mm2 BS 7846 - F2

Nexans ref. 10516768 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Brown, black, grey
  • Number of cores: 3
  • Approximate weight: 7750 kg/km
  • Conductor cross-section: 185 mm²
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer diameter: 49.6 mm
  • Max. DC resistance of the conductor at 20°C: 0.099 Ohm/km
  • Permissible current rating clipped direct: 441 A
  • Permissible current rating in open air: 463 A
  • Permissible current rating when buried: 281 A
  • Permissible short circuit current conductor 1s: 26.5 kA
  • Voltage Drop: 0.26 V/A.km



NX400 3x2.5 mm2 BS 7846 - F2

Nexans ref. 10518621 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Brown, black, grey
  • Number of cores: 3
  • Approximate weight: 420 kg/km
  • Conductor cross-section: 2.5 mm²
  • Nominal armour wire diameter: 0.9 mm
  • Nominal outer diameter: 15.3 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating clipped direct: 31 A
  • Permissible current rating in open air: 33 A
  • Permissible current rating when buried: 28 A
  • Permissible short circuit current conductor 1s: 0.4 kA
  • Voltage Drop: 16.0 V/A.km



NX400 3x240 mm2 BS 7846 - F2

Nexans ref. 10516769 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Brown, black, grey
  • Number of cores: 3
  • Approximate weight: 9500 kg/km
  • Conductor cross-section: 240 mm²
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer diameter: 54.8 mm
  • Max. DC resistance of the conductor at 20°C: 0.075 Ohm/km
  • Permissible current rating clipped direct: 520 A
  • Permissible current rating in open air: 546 A
  • Permissible current rating when buried: 324 A
  • Permissible short circuit current conductor 1s: 34.3 kA
  • Voltage Drop: 0.21 V/A.km



NX400 3x25 mm2 BS 7846 - F2

Nexans ref. 10518626 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Brown, black, grey
  • Number of cores: 3
  • Approximate weight: 1600 kg/km
  • Conductor cross-section: 25 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 26.1 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating clipped direct: 124 A
  • Permissible current rating in open air: 131 A
  • Permissible current rating when buried: 96 A
  • Permissible short circuit current conductor 1s: 3.6 kA
  • Voltage Drop: 1.65 V/A.km



NX400 3x300 mm2 BS 7846 - F2

Nexans ref. 10516770 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Brown, black, grey
  • Number of cores: 3
  • Approximate weight: 11500 kg/km
  • Conductor cross-section: 300 mm²
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer diameter: 59.8 mm
  • Max. DC resistance of the conductor at 20°C: 0.06 Ohm/km
  • Permissible current rating clipped direct: 599 A
  • Permissible current rating in open air: 628 A
  • Permissible current rating when buried: 365 A
  • Permissible short circuit current conductor 1s: 42.9 kA
  • Voltage Drop: 0.18 V/A.km



NX400 3x35 mm2 BS 7846 - F2

Nexans ref. 10517802 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Brown, black, grey
  • Number of cores: 3
  • Approximate weight: 2000 kg/km
  • Conductor cross-section: 35 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 28.5 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating clipped direct: 154 A
  • Permissible current rating in open air: 162 A
  • Permissible current rating when buried: 115 A
  • Permissible short circuit current conductor 1s: 5 kA
  • Voltage Drop: 1.15 V/A.km



NX400 3x4 mm2 BS 7846 - F2

Nexans ref. 10518622 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Brown, black, grey
  • Number of cores: 3
  • Approximate weight: 500 kg/km
  • Conductor cross-section: 4 mm²
  • Nominal armour wire diameter: 0.9 mm
  • Nominal outer diameter: 16.9 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating clipped direct: 42 A
  • Permissible current rating in open air: 44 A
  • Permissible current rating when buried: 36 A
  • Permissible short circuit current conductor 1s: 0.6 kA
  • Voltage Drop: 10.0 V/A.km



NX400 3x400 mm2 BS 7846 - F2

Nexans ref. 10516771 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Brown, black, grey
  • Number of cores: 3
  • Approximate weight: 14500 kg/km
  • Conductor cross-section: 400 mm²
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer diameter: 67.7 mm
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • Permissible current rating clipped direct: 673 A
  • Permissible current rating in open air: 728 A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: 57.2 kA
  • Voltage Drop: 0.17 V/A.km



NX400 3x50 mm2 BS 7846 - F2

Nexans ref. 10517966 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Brown, black, grey
  • Number of cores: 3
  • Approximate weight: 2250 kg/km
  • Conductor cross-section: 50 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 28.5 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating clipped direct: 187 A
  • Permissible current rating in open air: 197 A
  • Permissible current rating when buried: 135 A
  • Permissible short circuit current conductor 1s: 7.2 kA
  • Voltage Drop: 0.87 V/A.km



NX400 3x6 mm2 BS 7846 - F2

Nexans ref. 10518623 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Brown, black, grey
  • Number of cores: 3
  • Approximate weight: 600 kg/km
  • Conductor cross-section: 6 mm²
  • Nominal armour wire diameter: 0.9 mm
  • Nominal outer diameter: 18.2 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating clipped direct: 53 A
  • Permissible current rating in open air: 56 A
  • Permissible current rating when buried: 44 A
  • Permissible short circuit current conductor 1s: 0.9 kA
  • Voltage Drop: 6.8 V/A.km



NX400 3x70 mm2 BS 7846 - F2

Nexans ref. 10517965 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Brown, black, grey
  • Number of cores: 3
  • Approximate weight: 3000 kg/km
  • Conductor cross-section: 70 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 32.2 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating clipped direct: 238 A
  • Permissible current rating in open air: 251 A
  • Permissible current rating when buried: 167 A
  • Permissible short circuit current conductor 1s: 10 kA
  • Voltage Drop: 0.6 V/A.km



NX400 3x95 mm2 BS 7846 - F2

Nexans ref. 10517964 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Brown, black, grey
  • Number of cores: 3
  • Approximate weight: 4000 kg/km
  • Conductor cross-section: 95 mm²
  • Nominal armour wire diameter: 2 mm
  • Nominal outer diameter: 36.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating clipped direct: 289 A
  • Permissible current rating in open air: 304 A
  • Permissible current rating when buried: 197 A
  • Permissible short circuit current conductor 1s: 13.6 kA
  • Voltage Drop: 0.45 V/A.km



NX400 4X6 mm2 BS 7846 - F2

Nexans ref. 10520452

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: -
  • Number of cores: 4
  • Approximate weight: 770 kg/km
  • Conductor cross-section: 6 mm²
  • Nominal armour wire diameter: - mm
  • Nominal outer diameter: 19.7 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating clipped direct: - A
  • Permissible current rating in open air: - A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: - kA
  • Voltage Drop: - V/A.km



NX400 4x1.5 mm2 BS 7846 - F2

Nexans ref. 10518627 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey
  • Number of cores: 4
  • Approximate weight: 400 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal armour wire diameter: 0.9 mm
  • Nominal outer diameter: 15.4 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating clipped direct: 23 A
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 21 A
  • Permissible short circuit current conductor 1s: 0.2 kA
  • Voltage Drop: 27.0 V/A.km



NX400 4x10 mm2 BS 7846 - F2

Nexans ref. 10518631 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey
  • Number of cores: 4
  • Approximate weight: 1100 kg/km
  • Conductor cross-section: 10 mm²
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer diameter: 22.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating clipped direct: 73 A
  • Permissible current rating in open air: 78 A
  • Permissible current rating when buried: 58 A
  • Permissible short circuit current conductor 1s: 1.4 kA
  • Voltage Drop: 4.0 V/A.km



NX400 4x120 mm2 BS 7846 - F2

Nexans ref. 10518638 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Blue, brown, black, grey
  • Number of cores: 4
  • Approximate weight: 6750 kg/km
  • Conductor cross-section: 120 mm²
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer diameter: 46.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating clipped direct: 335 A
  • Permissible current rating in open air: 353 A
  • Permissible current rating when buried: 223 A
  • Permissible short circuit current conductor 1s: 17.2 kA
  • Voltage Drop: 0.37 V/A.km



NX400 4x150 mm2 BS 7846 - F2

Nexans ref. 10518639 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Blue, brown, black, grey
  • Number of cores: 4
  • Approximate weight: 8250 kg/km
  • Conductor cross-section: 150 mm²
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer diameter: 51.4 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating clipped direct: 386 A
  • Permissible current rating in open air: 406 A
  • Permissible current rating when buried: 251 A
  • Permissible short circuit current conductor 1s: 21.4 kA
  • Voltage Drop: 0.3 V/A.km



NX400 4x16 mm2 BS 7846 - F2

Nexans ref. 10518632 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey
  • Number of cores: 4
  • Approximate weight: 1300 kg/km
  • Conductor cross-section: 16 mm²
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer diameter: 23.6 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating clipped direct: 94 A
  • Permissible current rating in open air: 99 A
  • Permissible current rating when buried: 75 A
  • Permissible short circuit current conductor 1s: 2.3 kA
  • Voltage Drop: 2.5 V/A.km



NX400 4x185 mm2 BS 7846 - F2

Nexans ref. 10518641 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Blue, brown, black, grey
  • Number of cores: 4
  • Approximate weight: 9750 kg/km
  • Conductor cross-section: 185 mm²
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer diameter: 56.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.099 Ohm/km
  • Permissible current rating clipped direct: 441 A
  • Permissible current rating in open air: 463 A
  • Permissible current rating when buried: 281 A
  • Permissible short circuit current conductor 1s: 26.5 kA
  • Voltage Drop: 0.26 V/A.km



NX400 4x2.5 mm2 BS 7846 - F2

Nexans ref. 10518628 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey
  • Number of cores: 4
  • Approximate weight: 500 kg/km
  • Conductor cross-section: 2.5 mm²
  • Nominal armour wire diameter: 0.9 mm
  • Nominal outer diameter: 16.9 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating clipped direct: 31 A
  • Permissible current rating in open air: 33 A
  • Permissible current rating when buried: 28 A
  • Permissible short circuit current conductor 1s: 0.4 kA
  • Voltage Drop: 16.0 V/A.km



NX400 4x240 mm2 BS 7846 - F2

Nexans ref. 10518642 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Blue, brown, black, grey
  • Number of cores: 4
  • Approximate weight: 12500 kg/km
  • Conductor cross-section: 240 mm²
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer diameter: 62.3 mm
  • Max. DC resistance of the conductor at 20°C: 0.075 Ohm/km
  • Permissible current rating clipped direct: 520 A
  • Permissible current rating in open air: 546 A
  • Permissible current rating when buried: 324 A
  • Permissible short circuit current conductor 1s: 34.3 kA
  • Voltage Drop: 0.21 V/A.km



NX400 4x25 mm2 BS 7846 - F2

Nexans ref. 10518633 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey
  • Number of cores: 4
  • Approximate weight: 2000 kg/km
  • Conductor cross-section: 25 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 28.3 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating clipped direct: 124 A
  • Permissible current rating in open air: 131 A
  • Permissible current rating when buried: 96 A
  • Permissible short circuit current conductor 1s: 3.6 kA
  • Voltage Drop: 1.65 V/A.km



NX400 4x300 mm2 BS 7846 - F2

Nexans ref. 10518569 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Blue, brown, black, grey
  • Number of cores: 4
  • Approximate weight: 15000 kg/km
  • Conductor cross-section: 300 mm²
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer diameter: 68.3 mm
  • Max. DC resistance of the conductor at 20°C: 0.06 Ohm/km
  • Permissible current rating clipped direct: 599 A
  • Permissible current rating in open air: 628 A
  • Permissible current rating when buried: 365 A
  • Permissible short circuit current conductor 1s: 42.9 kA
  • Voltage Drop: 0.18 V/A.km



NX400 4x35 mm2 BS 7846 - F2

Nexans ref. 10518634 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey
  • Number of cores: 4
  • Approximate weight: 2500 kg/km
  • Conductor cross-section: 35 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 30.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating clipped direct: 154 A
  • Permissible current rating in open air: 162 A
  • Permissible current rating when buried: 115 A
  • Permissible short circuit current conductor 1s: 5 kA
  • Voltage Drop: 1.15 V/A.km



NX400 4x4 mm2 BS 7846 - F2

Nexans ref. 10518629 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey
  • Number of cores: 4
  • Approximate weight: 600 kg/km
  • Conductor cross-section: 4 mm²
  • Nominal armour wire diameter: 0.9 mm
  • Nominal outer diameter: 18.2 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating clipped direct: 42 A
  • Permissible current rating in open air: 44 A
  • Permissible current rating when buried: 36 A
  • Permissible short circuit current conductor 1s: 0.6 kA
  • Voltage Drop: 10.0 V/A.km



NX400 4x400 mm2 BS 7846 - F2

Nexans ref. 10518570 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Blue, brown, black, grey
  • Number of cores: 4
  • Approximate weight: 20000 kg/km
  • Conductor cross-section: 400 mm²
  • Nominal armour wire diameter: 3.15 mm
  • Nominal outer diameter: 79.5 mm
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • Permissible current rating clipped direct: 673 A
  • Permissible current rating in open air: 728 A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: 57.2 kA
  • Voltage Drop: 0.17 V/A.km



NX400 4x50 mm2 BS 7846 - F2

Nexans ref. 10518635 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Blue, brown, black, grey
  • Number of cores: 4
  • Approximate weight: 3000 kg/km
  • Conductor cross-section: 50 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 32.1 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating clipped direct: 187 A
  • Permissible current rating in open air: 197 A
  • Permissible current rating when buried: 135 A
  • Permissible short circuit current conductor 1s: 7.2 kA
  • Voltage Drop: 0.87 V/A.km



NX400 4x6 mm2 BS 7846 - F2

Nexans ref. 10518630 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey
  • Number of cores: 4
  • Approximate weight: 800 kg/km
  • Conductor cross-section: 6 mm²
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer diameter: 20.4 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating clipped direct: 53 A
  • Permissible current rating in open air: 56 A
  • Permissible current rating when buried: 44 A
  • Permissible short circuit current conductor 1s: 0.9 kA
  • Voltage Drop: 6.8 V/A.km



NX400 4x70 mm2 BS 7846 - F2

Nexans ref. 10518636 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Blue, brown, black, grey
  • Number of cores: 4
  • Approximate weight: 4250 kg/km
  • Conductor cross-section: 70 mm²
  • Nominal armour wire diameter: 2 mm
  • Nominal outer diameter: 37.3 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating clipped direct: 238 A
  • Permissible current rating in open air: 251 A
  • Permissible current rating when buried: 167 A
  • Permissible short circuit current conductor 1s: 10 kA
  • Voltage Drop: 0.6 V/A.km



NX400 4x95 mm2 BS 7846 - F2

Nexans ref. 10518637 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Sector-shaped stranded (SM)
  • Core identification: Blue, brown, black, grey
  • Number of cores: 4
  • Approximate weight: 5250 kg/km
  • Conductor cross-section: 95 mm²
  • Nominal armour wire diameter: 2 mm
  • Nominal outer diameter: 41.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating clipped direct: 289 A
  • Permissible current rating in open air: 304 A
  • Permissible current rating when buried: 197 A
  • Permissible short circuit current conductor 1s: 13.6 kA
  • Voltage Drop: 0.45 V/A.km



NX400 5G1.5 mm2 BS 7846 - F2

Nexans ref. 10536324 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Number of cores: 5
  • Approximate weight: 480 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal armour wire diameter: 0.9 mm
  • Nominal outer diameter: 17.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating clipped direct: 23 A
  • Permissible current rating in open air: 23 A
  • Permissible current rating when buried: 21 A
  • Permissible short circuit current conductor 1s: 0.2 kA
  • Voltage Drop: 27.0 V/A.km



NX400 5G1.5 mm2 BS 7846 - F2

Nexans ref. 10563414

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Number of cores: 5
  • Approximate weight: 450 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal armour wire diameter: - mm
  • Nominal outer diameter: 16.5 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating clipped direct: - A
  • Permissible current rating in open air: - A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: - kA
  • Voltage Drop: - V/A.km



NX400 5G10 mm2 BS 7846 - F2

Nexans ref. 10519118 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Number of cores: 5
  • Approximate weight: 1200 kg/km
  • Conductor cross-section: 10 mm²
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer diameter: 24.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating clipped direct: 73 A
  • Permissible current rating in open air: 75 A
  • Permissible current rating when buried: 58 A
  • Permissible short circuit current conductor 1s: 1.4 kA
  • Voltage Drop: 4.0 V/A.km



NX400 5G16 mm2 BS 7846 - F2

Nexans ref. 10526192 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Number of cores: 5
  • Approximate weight: 1700 kg/km
  • Conductor cross-section: 16 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 27.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating clipped direct: 94 A
  • Permissible current rating in open air: 100 A
  • Permissible current rating when buried: 75 A
  • Permissible short circuit current conductor 1s: 2.3 kA
  • Voltage Drop: 2.5 V/A.km



NX400 5G2.5 mm2 BS 7846 - F2

Nexans ref. 10536325 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Number of cores: 5
  • Approximate weight: 550 kg/km
  • Conductor cross-section: 2.5 mm²
  • Nominal armour wire diameter: 0.9 mm
  • Nominal outer diameter: 18.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating clipped direct: 31 A
  • Permissible current rating in open air: 32 A
  • Permissible current rating when buried: 28 A
  • Permissible short circuit current conductor 1s: 0.4 kA
  • Voltage Drop: 16.0 V/A.km



NX400 5G2.5 mm2 BS 7846 - F2

Nexans ref. 10563415

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Number of cores: 5
  • Approximate weight: 530 kg/km
  • Conductor cross-section: 2.5 mm²
  • Nominal armour wire diameter: - mm
  • Nominal outer diameter: 17.6 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating clipped direct: - A
  • Permissible current rating in open air: - A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: - kA
  • Voltage Drop: - V/A.km



NX400 5G25 mm2 BS 7846 - F2

Nexans ref. 10530521 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Number of cores: 5
  • Approximate weight: 2500 kg/km
  • Conductor cross-section: 25 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 31.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating clipped direct: 124 A
  • Permissible current rating in open air: 127 A
  • Permissible current rating when buried: 96 A
  • Permissible short circuit current conductor 1s: 3.6 kA
  • Voltage Drop: 1.65 V/A.km



NX400 5G35 mm2 BS 7846 - F2

Nexans ref. 10536326 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Number of cores: 5
  • Approximate weight: 3000 kg/km
  • Conductor cross-section: 35 mm²
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer diameter: 34.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating clipped direct: 154 A
  • Permissible current rating in open air: 158 A
  • Permissible current rating when buried: 115 A
  • Permissible short circuit current conductor 1s: 5 kA
  • Voltage Drop: 1.15 V/A.km



NX400 5G4 mm2 BS 7846 - F2

Nexans ref. 10536327 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Number of cores: 5
  • Approximate weight: 700 kg/km
  • Conductor cross-section: 4 mm²
  • Nominal armour wire diameter: 0.9 mm
  • Nominal outer diameter: 20.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating clipped direct: 42 A
  • Permissible current rating in open air: 42 A
  • Permissible current rating when buried: 36 A
  • Permissible short circuit current conductor 1s: 0.6 kA
  • Voltage Drop: 10.0 V/A.km



NX400 5G50 mm2 BS 7846 - F2

Nexans ref. 10536328 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Number of cores: 5
  • Approximate weight: 4000 kg/km
  • Conductor cross-section: 50 mm²
  • Nominal armour wire diameter: 2 mm
  • Nominal outer diameter: 39.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating clipped direct: 187 A
  • Permissible current rating in open air: 192 A
  • Permissible current rating when buried: 135 A
  • Permissible short circuit current conductor 1s: 7.2 kA
  • Voltage Drop: 0.87 V/A.km



NX400 5G6 mm2 BS 7846 - F2

Nexans ref. 10530507 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Number of cores: 5
  • Approximate weight: 950 kg/km
  • Conductor cross-section: 6 mm²
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer diameter: 22.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating clipped direct: 53 A
  • Permissible current rating in open air: 54 A
  • Permissible current rating when buried: 44 A
  • Permissible short circuit current conductor 1s: 0.9 kA
  • Voltage Drop: 6.8 V/A.km



NX400 5G70 mm2 BS 7846 - F2

Nexans ref. 10536329 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Number of cores: 5
  • Approximate weight: 5500 kg/km
  • Conductor cross-section: 70 mm²
  • Nominal armour wire diameter: 2 mm
  • Nominal outer diameter: 45.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating clipped direct: 238 A
  • Permissible current rating in open air: 246 A
  • Permissible current rating when buried: 167 A
  • Permissible short circuit current conductor 1s: 10 kA
  • Voltage Drop: 0.6 V/A.km



NX400 5X1.5 mm2 BS 7846 - F2

Nexans ref. 10562867

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 5
  • Approximate weight: 450 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal armour wire diameter: - mm
  • Nominal outer diameter: 16.5 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating clipped direct: - A
  • Permissible current rating in open air: - A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: - kA
  • Voltage Drop: - V/A.km



NX400 5X10 mm2 BS 7846 - F2

Nexans ref. 10557111

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 5
  • Approximate weight: 1150 kg/km
  • Conductor cross-section: 10 mm²
  • Nominal armour wire diameter: - mm
  • Nominal outer diameter: 23.3 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating clipped direct: - A
  • Permissible current rating in open air: - A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: - kA
  • Voltage Drop: - V/A.km



NX400 5X16 mm2 BS 7846 - F2

Nexans ref. 10557112

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 5
  • Approximate weight: 1630 kg/km
  • Conductor cross-section: 16 mm²
  • Nominal armour wire diameter: - mm
  • Nominal outer diameter: 26.5 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating clipped direct: - A
  • Permissible current rating in open air: - A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: - kA
  • Voltage Drop: - V/A.km



NX400 5X2.5 mm2 BS 7846 - F2

Nexans ref. 10557110

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 5
  • Approximate weight: 530 kg/km
  • Conductor cross-section: 2.5 mm²
  • Nominal armour wire diameter: - mm
  • Nominal outer diameter: 17.6 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating clipped direct: - A
  • Permissible current rating in open air: - A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: - kA
  • Voltage Drop: - V/A.km



NX400 5X6 mm2 BS 7846 - F2

Nexans ref. 10518988

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 5
  • Approximate weight: 880 kg/km
  • Conductor cross-section: 6 mm²
  • Nominal armour wire diameter: - mm
  • Nominal outer diameter: 21.2 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating clipped direct: - A
  • Permissible current rating in open air: - A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: - kA
  • Voltage Drop: - V/A.km



NX400 7x1.5 mm2 BS 7846 - F2

Nexans ref. 10526191 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 7
  • Approximate weight: 550 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal armour wire diameter: 0.9 mm
  • Nominal outer diameter: 18.0 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating clipped direct: 14 A
  • Permissible current rating in open air: 15 A
  • Permissible current rating when buried: 13 A
  • Permissible short circuit current conductor 1s: 0.2 kA
  • Voltage Drop: 31.0 V/A.km



NX400 7x1.5 mm2 BS 7846 - F2

Nexans ref. 10562829

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 7
  • Approximate weight: 520 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal armour wire diameter: - mm
  • Nominal outer diameter: 17.6 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating clipped direct: - A
  • Permissible current rating in open air: - A
  • Permissible current rating when buried: - A
  • Permissible short circuit current conductor 1s: - kA
  • Voltage Drop: - V/A.km



NX400 7x2.5 mm2 BS 7846 - F2

Nexans ref. 10530112 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 7
  • Approximate weight: 650 kg/km
  • Conductor cross-section: 2.5 mm²
  • Nominal armour wire diameter: 0.9 mm
  • Nominal outer diameter: 20.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating clipped direct: 19 A
  • Permissible current rating in open air: 20 A
  • Permissible current rating when buried: 17 A
  • Permissible short circuit current conductor 1s: 0.4 kA
  • Voltage Drop: 19.0 V/A.km



NX400 7x4 mm2 BS 7846 - F2

Nexans ref. 10531447 - Country ref. TR

  • Packaging: Drum
  • Conductor shape: Circular stranded (RM)
  • Core identification: Numbers
  • Number of cores: 7
  • Approximate weight: 900 kg/km
  • Conductor cross-section: 4 mm²
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer diameter: 22.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating clipped direct: 26 A
  • Permissible current rating in open air: 27 A
  • Permissible current rating when buried: 22 A
  • Permissible short circuit current conductor 1s: 0.6 kA
  • Voltage Drop: 12.0 V/A.km



Description

Description

Standards

  • National
    BS 7846

Application:

Rafineries, mines, hotels, schools, tunnels, high constructions, hospitals, power plants, data processing centers, business centers where there is a concentration of sensitive to fire



Construction:

  1. Conductor: Copper
  2. Fire barrier: Mica tape
  3. Insulation: XLPE
  4. Bedding: LSZH
  5. Armour: Single layer of galvanized steel wires
  6. Outer sheath: LSZH



Marking:

ELECTRIC CABLE  600/1000 V  BS 7846-F2  NEXANS i  NX400  Number of cores x cross section  BASEC  LPCB 946a/01  "YEAR"  ALSECURE  PLUS



**EN 50200 PH 120 is also applicable for cross sections 1.5 to 6 mm2.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Armour type
Single layer of galvanized steel wires
Outer sheath
HFFR (Halogene Free Flame Retardant)
Insulation
XLPE + Mica tape
Sheath colour
Black
Halogen free
Yes

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0.6/1 kV

Usage characteristics

Usage characteristics

Operating temperature, range
-20 - 60 °C
Max. conductor temperature in service
90 °C
Fire resistant
BS 6387 CWZ
Smoke density
IEC 61034-1-2
Gases corrosivity
IEC 60754-2
Short-circuit max. conductor temperature
250 °C
Fire retardant
IEC 60332-3-24 Cat.C

Resources

Resources

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
