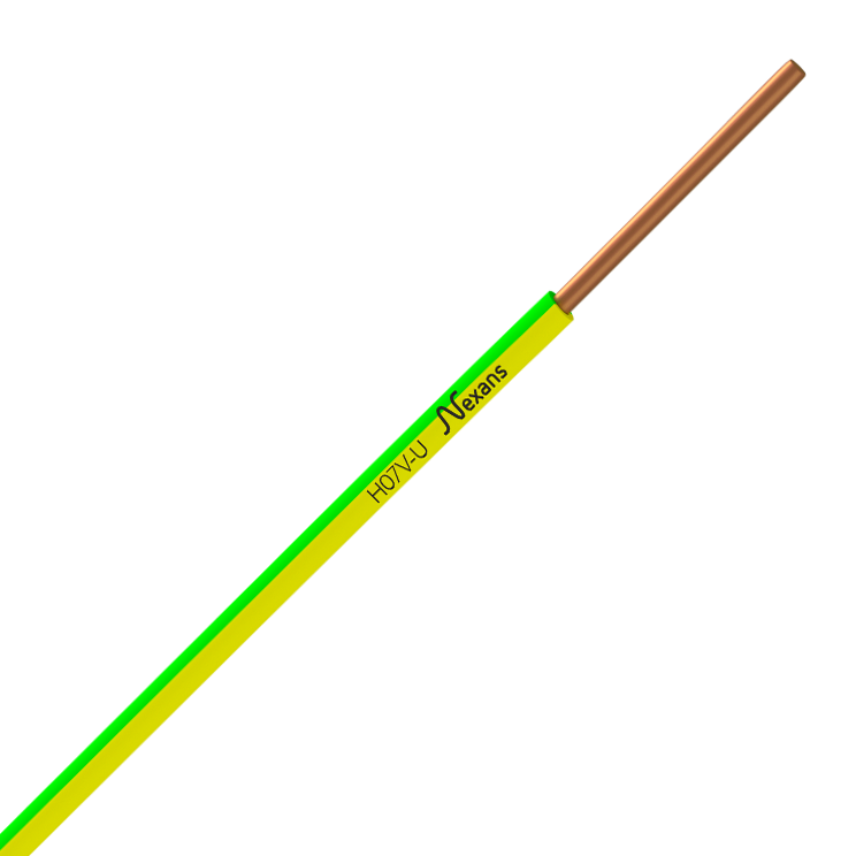

Nexans H07VU 1x2,5 GREEN/YELLOW C25m

Description

Description

Standards

  • International
    EN 50525-2-31; HD 21.3; IEC 60227-1
  • National
    NF C32-201/3

Application

Nexans H07V-U conductors are used for fixed protected installations : i.e. ligths or control gear (from offices, domestic or commercial buildings ...) with voltage ≤ 1000V AC or ≤ 750 V DC . ...



Installation

Open air, in conduit, in cable trunking, in cable ducting. Thanks to the sliding properties of insulation, H07V-U is made to facilitate processing while pulling in.



Design

  1. Conductor
    Bare copper class 1
  2. Insulation
    PVC
    Différent colors.



Marking

S.Y + USE «har» H07V-U factory number





Voltage drop

Calculated with Cos phi = 0,8







Permissible current and voltage drop are given

For conductor laid alone in insulating tube on a wall Temperature = 30°C. Permanent operation
If conditions are different, apply correction factors from NF C 15-100 standard or other equivalent national standard.



Gammes et couleurs disponibles pour PASSEO

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Solid class 1
Conductor material
Bare copper
Conductor shape
Circular
Insulation
PVC
Lead free
Yes
Sheath colour
Green / Yellow

Dimensional characteristics

Dimensional characteristics

Approximate weight
- kg/km
Conductor cross-section
2.5 mm²
Maximum outer diameter
- mm
Number of cores
1

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450/750 V
Permissible current (one phase)
- A
Permissible current rating (3 conductors)
- A
Voltage drop, 3 conductors
- V/A.km
Voltage drop, single phase
- V/A.km

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Low

Usage characteristics

Usage characteristics

Flame retardant
-
Max. conductor temperature in service
70 °C
Short-circuit max. conductor temperature
160 °C
Operating temperature, range
-5 ... 60 °C
Weather resistance
No
Chemical resistance
Accidental
Water proof
Low
Laying operation bending radius
- mm
Length
25 m
Minimum static operating bending radius
- mm
Packaging
Coil
