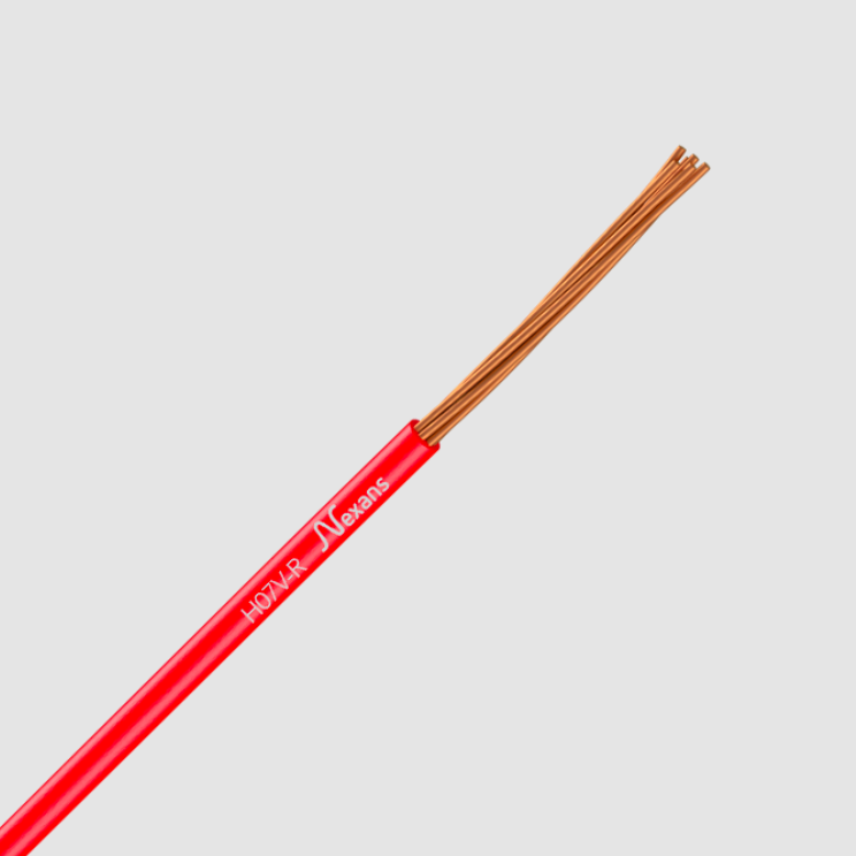

LIR H07V-R 1x10 mm² MA Nrl 100M

Description

Description

Standards

  • International
    EN 50525-2-31; HD 21.3; IEC 60227-1; IEC 60228
  • National
    NF C 32-201/3

Application

H07V-R are insulated stranded copper conductors, used for fixed protected installations indoors for power supply or lightings (from offices, domestic or commercial buidings...) with voltage up to 1000V AC or 750V DC.



Installation

In conduit, insulated support, ducts... in covered an dry place.



Permissible current are given for conductor laid alone in insulating tube on a wall temperature at 30°C .
If conditions are différent, apply correction factors in accordance with  NF C 15-100 standard or other equivalent national standard.





Design

  1. Conductor
    Bare copper class 2
  2. Insulation
    PVC

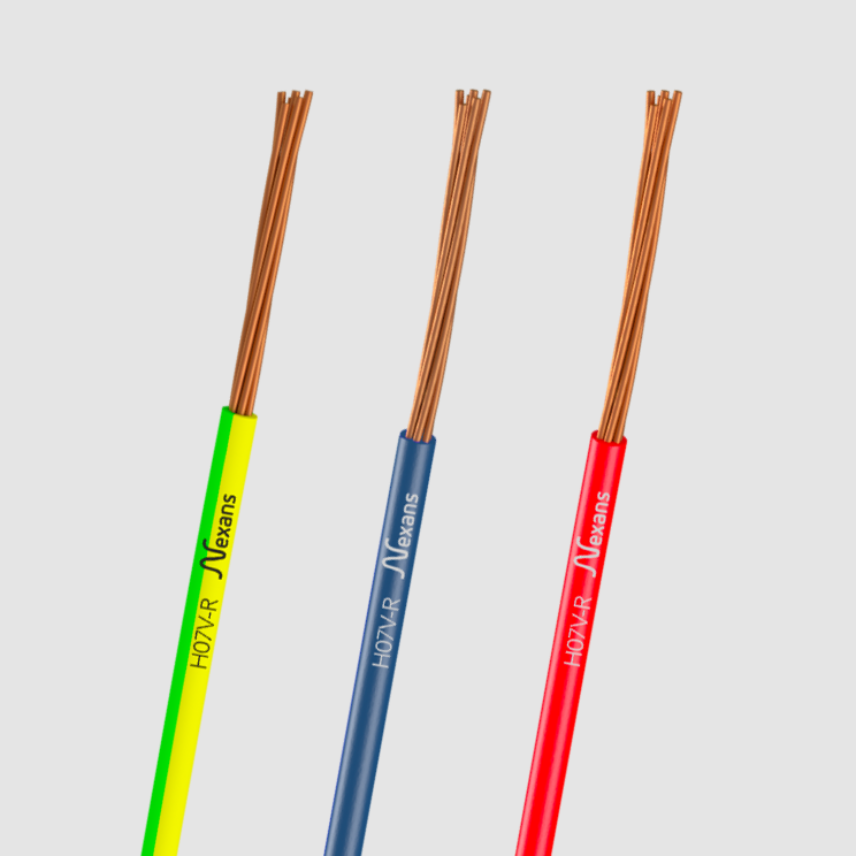

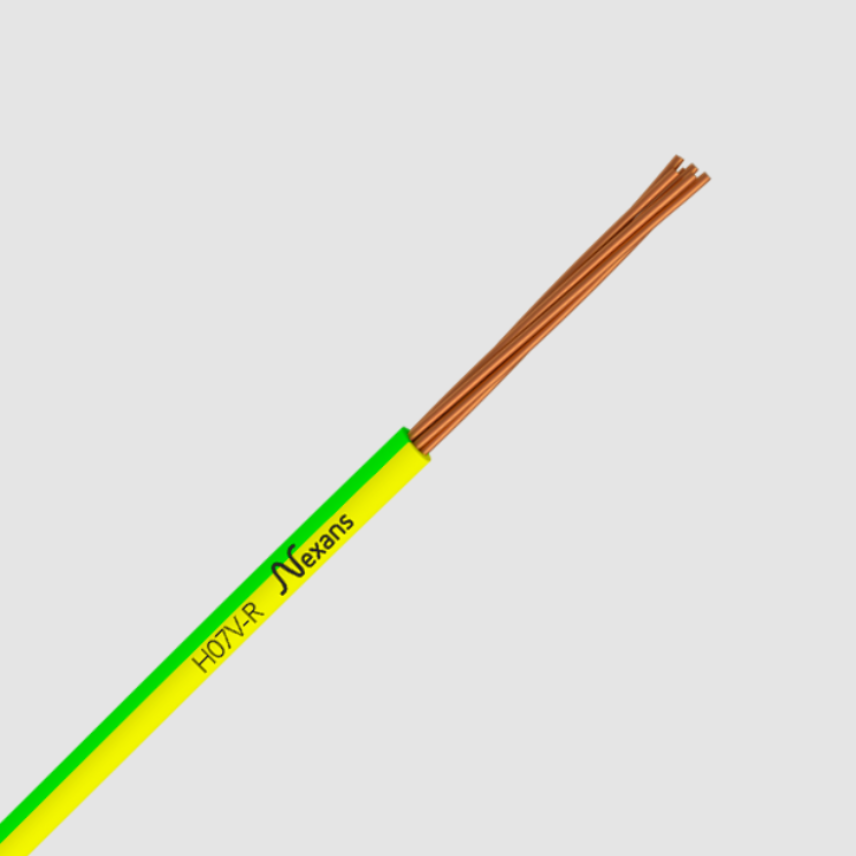

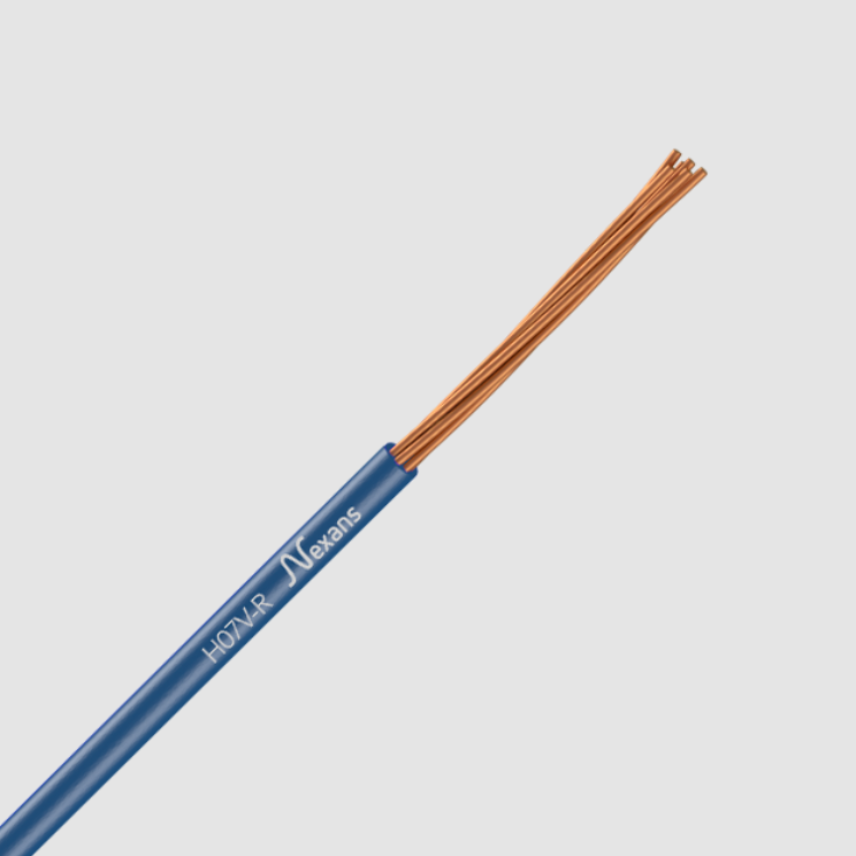

    Différent colors.





Marking

S.Y + USE «har» H07V-R factory number.





Voltage drop

Calculated with Cos phi = 0,8

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper class 2
Conductor flexibility
-
Conductor shape
-
Insulation
PVC
Lead free
Yes
Sheath colour
Brown

Dimensional characteristics

Dimensional characteristics

Approximate weight
125 kg/km
Conductor cross-section
10 mm²
Conductor diameter
3.8 mm
Nominal outer diameter
5.8 mm
Number of cores
1

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450 / 750 V
Permissible current (one phase)
57.0 A
Permissible current rating (3 conductors)
50.0 A
Voltage drop, 3 conductors
- V/A.km
Voltage drop, single phase
- V/A.km

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Low

Usage characteristics

Usage characteristics

Max. conductor temperature in service
70 °C
Short-circuit max. conductor temperature
160 °C
Operating temperature, range
-5 - 60 °C
Flame retardant
C2, NF C 32-070 & EN 50265-2-1
Weather resistance
No
Chemical resistance
Accidental
Water proof
Low
Laying operation bending radius
24 mm
Length
- m
Minimum static operating bending radius
- mm
Packaging
-

Resources

Resources

Documentation

Licence H07V-R pdf — 63.1 kB
