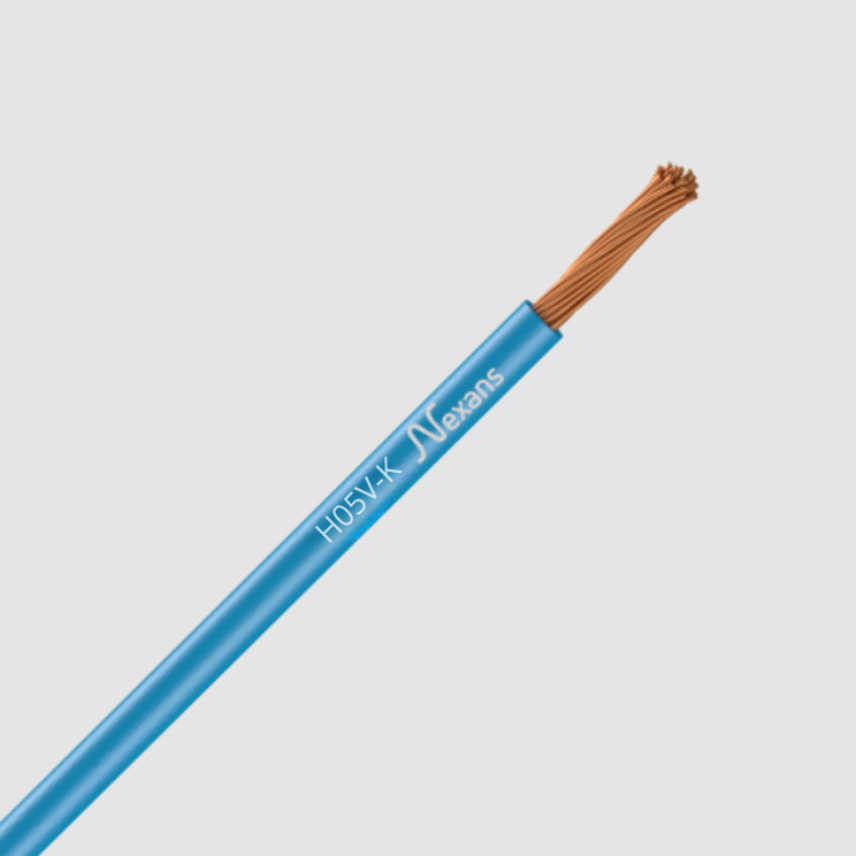

H05V-K VISIBOX 1x1 VERY LIGHT BLUE C100m

Description

Description

Standards

  • International
    EN 50525-2-31; HD 21.3; IEC 60227-6
  • National
    NF C 32-201/3

Application

H05V-K cores are used for internal equipment wiring.

Installation

Open air, or in conduits, or trunking.

Marking

S.Y + USE HAR H05VK - N° plant.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Sheath colour
Very Light Blue - RAL 5024
Conductor flexibility
Flexible class 5
Conductor material
Bare copper
Conductor shape
Circular
Insulation
PVC
Lead free
-

Dimensional characteristics

Dimensional characteristics

Conductor cross-section
1 mm²
Approximate weight
14 kg/km
Nominal outer diameter
3.0 mm
Number of cores
1

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
300 / 500 V
DC permissible current rating
- A
Permissible current (one phase)
13.5 A
Permissible current rating (3 conductors)
12.0 A

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Low
Cable flexibility
Flexible

Usage characteristics

Usage characteristics

Max. conductor temperature in service
70 °C
Short-circuit max. conductor temperature
160 °C
Operating temperature, range
-5 - 60 °C
Flame retardant
C2, NF C 32-070
Weather resistance
No
Chemical resistance
Accidental
Water proof
Low
Packaging
Coil
Length
100 m
Laying operation bending radius
18 mm
Minimum static operating bending radius
9 mm

Resources

Resources

Documentation

Licence H05V-K pdf — 63.5 kB
