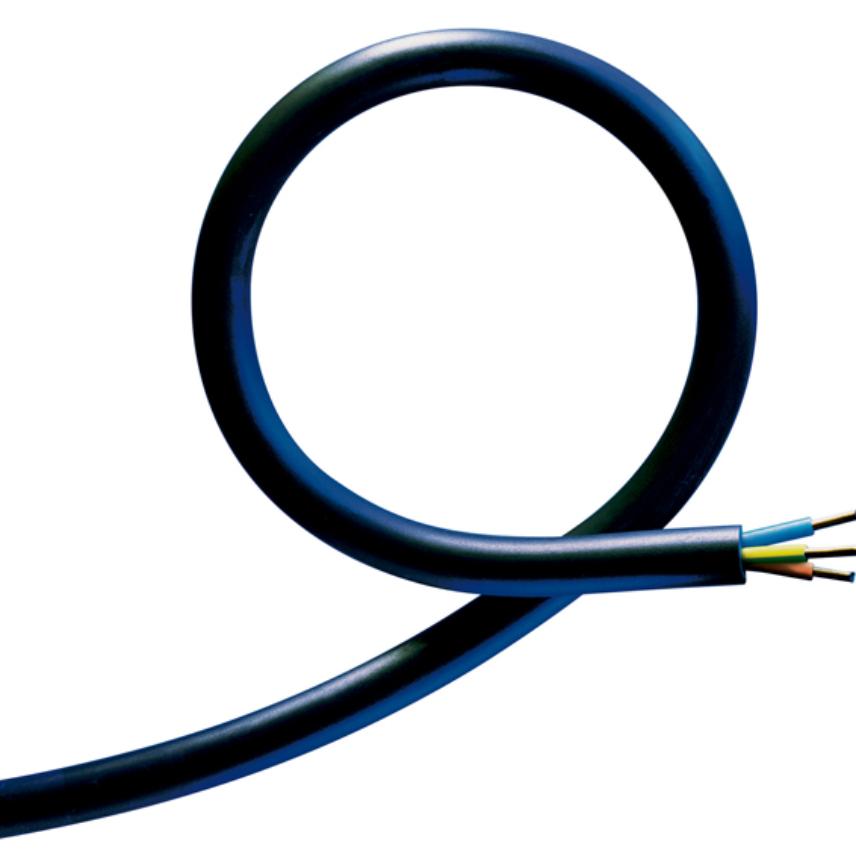

H07RN8-F

Products

07RN8-F 5G35

Nexans ref. 10124394

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 12G1.5

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 18G1.5

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 1X95

Nexans ref. 10072866

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 1x1.5

Nexans ref. 10068981

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 1x10

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 1x120

Nexans ref. 10072867

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 1x150

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 1x16

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 1x185

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 1x2.5

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 1x240

Nexans ref. 10073505

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 1x25

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 1x300

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 1x35

Nexans ref. 10072753

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 1x4

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 1x400

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 1x50

Nexans ref. 10070797

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 1x500

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 1x6

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 1x70

Nexans ref. 10056923

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 24G1.5

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 2x1

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 2x1.5

Nexans ref. 10063567

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 2x10

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 2x16

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 2x2.5

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 2x25

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 2x4

Nexans ref. 10062328

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 2x6

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 36G1.5

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3G1

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3G1.5

Nexans ref. 10068925

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3G10

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3G120

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3G150

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3G16

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3G185

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3G2.5

Nexans ref. 10071612

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3G240

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3G25

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3G300

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3G35

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3G4

Nexans ref. 10126029

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3G50

Nexans ref. 10069086

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3G6

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3G70

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3G95

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 3X25

Nexans ref. 10056842

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 3X35

Nexans ref. 10056843

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 4G1

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 4G1.5

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 4G10

Nexans ref. 10069075

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 4G120

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 4G150

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 4G16

Nexans ref. 10069076

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 4G185

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 4G2.5

Nexans ref. 10069061

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 4G240

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 4G25

Nexans ref. 10073786

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 4G35

Nexans ref. 10073787

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 4G4

Nexans ref. 10069062

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 4G50

Nexans ref. 10073788

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 4G6

Nexans ref. 10069063

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 4G70

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 4G95

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 4X25

Nexans ref. 10068980

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 4X50

Nexans ref. 10071613

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No



H07RN8-F 5G1

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 5G1.5

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 5G10

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 5G16

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 5G2.5

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 5G25

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 5G4

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 5G6

Nexans ref.

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



H07RN8-F 8G1,5

Nexans ref. 10109899

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes



Description

Description

Standards

  • International
    EN 50525-2-21; HD 22.16; HD 516; IEC 60245-4 type 66
  • National
    NF C 15-100; NF C 32-080; NF C 32-102-16

Application :

New european test -known as AD8, specify from now on strictlier performance of the materials used in H07RN8-F cables. These cables are made for carriable machine like submergerd pump and for immersed pump too.They can be used in every submerged environment like ports, offshore rigs... The good resitance of sheathing material to oil, grease and chimical product allow various usage.

Used in fixed installation they could be adapted for evacuation system. H07RN8-F cables are made with specific synthetic rubber having high waterproof degree can be used for intensive applications.

Use up to 1000V in alternative current is authorized for protected static installations and for connecting of motors in lifting appliances.

Maximum temperature on conductor in normal use + 60°C and under short circuit condition 200°C.

AD8 application  Cenelec test  100 days.
Submersible - 10 m. Installation

Can be used in open air. If buried it must have an extra mechanical protection (tube, gutter).

Conductors laid up
assembled conductor. Filler and reinforcement tape in some case.

Tractive force
Maxi 15N/mm² in relation to the section of core or 1000 N max for the full cable.

Nota
Max continuous operating conductor temperature in normal use :

+60°C   ( in every case of mobile installation)

+85°C   ( fixed protected installation )

+200°C ( in short circuit )

Permissible current rating is measured for an ambient temperature of 30°C and a maximum operating and conductor temperature of 85°C . For other temperature please refer to correction factors.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Flexible class 5
Conductor material
Bare copper
Conductor shape
Circular
Insulation
Special cross-linked elastomer
Outer sheath
Special cross-linked elastomer
Sheath colour
Black

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450 / 750 V

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Very good
Cable flexibility
Flexible

Usage characteristics

Usage characteristics

Short-circuit max. conductor temperature
200 °C
Operating temperature, range
-25 - 55 °C
Chemical resistance
Accidental
Water proof
AD8
Flame retardant
IEC 60332-1-2
Oil resistance
Yes
Bending factor when installed
4 (xD)
Dynamic bending factor
8 (xD)
Max. conductor temperature in service
60 °C

Resources

Resources

Selling & delivery Information

Product on request only
Marking USE < har > H07RN8-F N X (or G) S

  • N = number of cores
  • G = with Green/Yellow
  • x = without Green/Yellow
  • S = section in mm²
