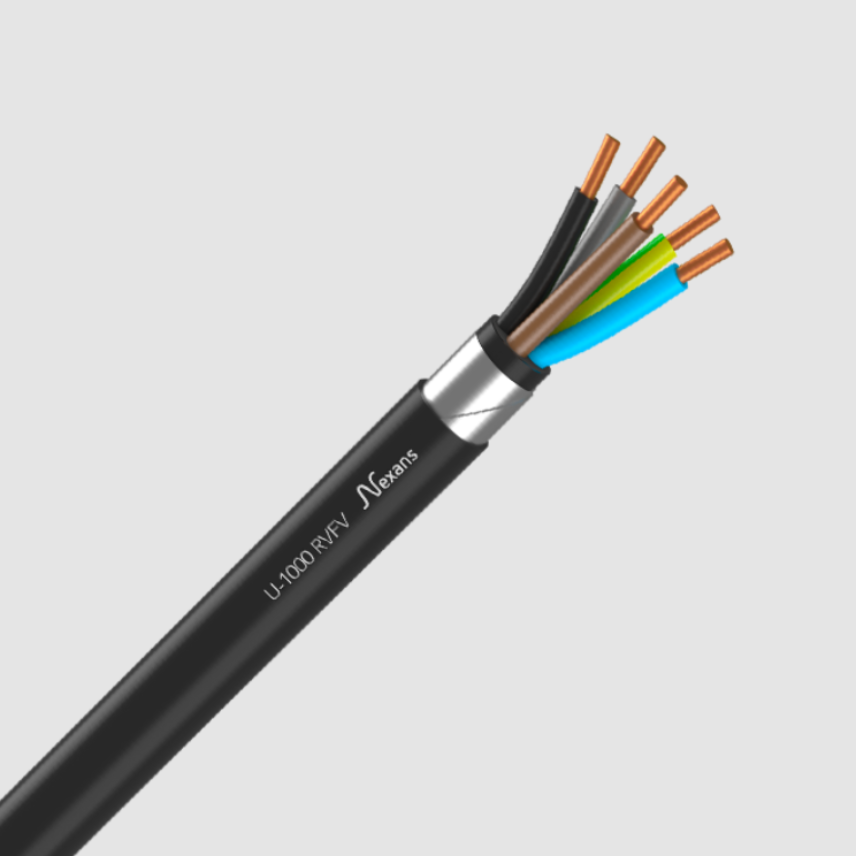

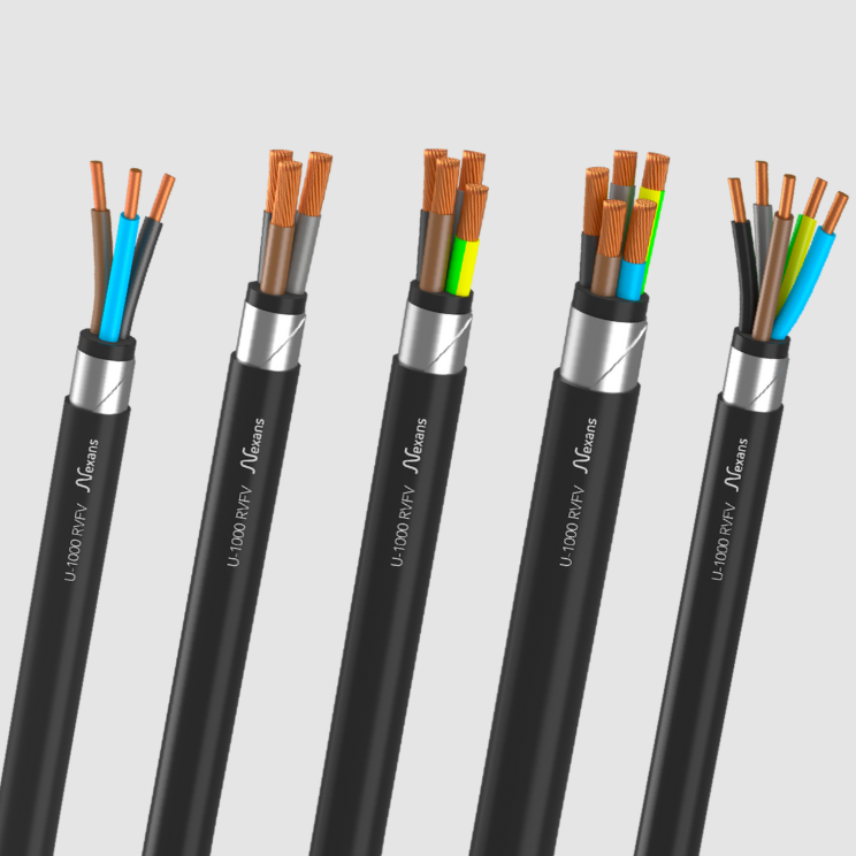

Nexans U-1000 RVFV
Nexans U-1000 RVFV
Armoured low voltage cables, XLPE insulation and PVC Outer sheath, for fixed or direct buried installation.
Read moreNexans U-1000 RVFV 12G1.5 RM
Nexans ref. 10046486 - Country ref. 01301600
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 12
- Conductor cross-section: 1.5 mm²
Nexans U-1000 RVFV 12G2.5 RM
Nexans ref. 10046487 - Country ref. 01301610
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 12
- Conductor cross-section: 2.5 mm²
Nexans U-1000 RVFV 19G1.5 RM
Nexans ref. 10046488 - Country ref. 01301700
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 19
- Conductor cross-section: 1.5 mm²
Nexans U-1000 RVFV 19G2.5 RM
Nexans ref. 10046489 - Country ref. 01301710
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 19
- Conductor cross-section: 2.5 mm²
Nexans U-1000 RVFV 27G1.5 RM
Nexans ref. 10073638 - Country ref. 01248574
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 27
- Conductor cross-section: 1.5 mm²
Nexans U-1000 RVFV 27G2.5 RM
Nexans ref. 10073639 - Country ref. 01248575
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 27
- Conductor cross-section: 2.5 mm²
Nexans U-1000 RVFV 2x1.5 RM
Nexans ref. 10046445 - Country ref. 01300210
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 1.5 mm²
Nexans U-1000 RVFV 2x10
Nexans ref. 10046449 - Country ref. 01300250
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 10 mm²
Nexans U-1000 RVFV 2x16
Nexans ref. 10046450 - Country ref. 01300260
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 16 mm²
Nexans U-1000 RVFV 2x2.5 RM
Nexans ref. 10046446 - Country ref. 01300220
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 2.5 mm²
Nexans U-1000 RVFV 2x4 RM
Nexans ref. 10046447 - Country ref. 01300230
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 4 mm²
Nexans U-1000 RVFV 2x6
Nexans ref. 10046448 - Country ref. 01300240
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 6 mm²
Nexans U-1000 RVFV 37G1.5 RM
Nexans ref. 10046491 - Country ref. 01301900
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 37
- Conductor cross-section: 1.5 mm²
Nexans U-1000 RVFV 37G2.5 RM
Nexans ref. 10046492 - Country ref. 01248576
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 37
- Conductor cross-section: 2.5 mm²
Nexans U-1000 RVFV 3G1.5 RC
Nexans ref. 10048360 - Country ref. 01248592
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
Nexans U-1000 RVFV 3G1.5 RM
Nexans ref. 10266912 - Country ref. 01300410
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
Nexans U-1000 RVFV 3G10
Nexans ref. 10046456 - Country ref. 01300450
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 10 mm²
Nexans U-1000 RVFV 3G16
Nexans ref. 10046457 - Country ref. 01300460
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 16 mm²
Nexans U-1000 RVFV 3G2.5 RC
Nexans ref. 10048362 - Country ref. 01248593
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
Nexans U-1000 RVFV 3G2.5 RM
Nexans ref. 10266911 - Country ref. 01300420
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
Nexans U-1000 RVFV 3G4 RM
Nexans ref. 10046454 - Country ref. 01300430
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 4 mm²
Nexans U-1000 RVFV 3G6
Nexans ref. 10046455 - Country ref. 01300440
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 6 mm²
Nexans U-1000 RVFV 3x10
Nexans ref. 10046475 - Country ref. 01301150
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 10 mm²
Nexans U-1000 RVFV 3x2.5 RM
Nexans ref. 10046472 - Country ref. 01301120
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
Nexans U-1000 RVFV 3x6
Nexans ref. 10046474 - Country ref. 01301140
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 6 mm²
Nexans U-1000 RVFV 4G1.5 RM
Nexans ref. 10046458 - Country ref. 01300610
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 1.5 mm²
Nexans U-1000 RVFV 4G10
Nexans ref. 10046462 - Country ref. 01300650
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 10 mm²
Nexans U-1000 RVFV 4G16
Nexans ref. 10046463 - Country ref. 01300660
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 16 mm²
Nexans U-1000 RVFV 4G2.5 RM
Nexans ref. 10046459 - Country ref. 01300620
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
Nexans U-1000 RVFV 4G4 RM
Nexans ref. 10046460 - Country ref. 01300630
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 4 mm²
Nexans U-1000 RVFV 4G6
Nexans ref. 10046461 - Country ref. 01300640
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 6 mm²
Nexans U-1000 RVFV 4x1.5 RM
Nexans ref. 10046477 - Country ref. 01301210
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 1.5 mm²
Nexans U-1000 RVFV 4x10
Nexans ref. 10046481 - Country ref. 01301250
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 10 mm²
Nexans U-1000 RVFV 4x16
Nexans ref. 10046482 - Country ref. 01301260
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 16 mm²
Nexans U-1000 RVFV 4x2.5 RM
Nexans ref. 10046478 - Country ref. 01301220
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
Nexans U-1000 RVFV 4x4 RM
Nexans ref. 10046479 - Country ref. 01301230
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 4 mm²
Nexans U-1000 RVFV 4x6
Nexans ref. 10046480 - Country ref. 01301240
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 6 mm²
Nexans U-1000 RVFV 5G1.5 RM
Nexans ref. 10046464 - Country ref. 01300810
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 1.5 mm²
Nexans U-1000 RVFV 5G10
Nexans ref. 10046468 - Country ref. 01300850
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 10 mm²
Nexans U-1000 RVFV 5G16
Nexans ref. 10046469 - Country ref. 01300860
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 16 mm²
Nexans U-1000 RVFV 5G2.5 RM
Nexans ref. 10046465 - Country ref. 01300820
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 2.5 mm²
Nexans U-1000 RVFV 5G4 RM
Nexans ref. 10046466 - Country ref. 01300830
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 4 mm²
Nexans U-1000 RVFV 5G6
Nexans ref. 10046467 - Country ref. 01300840
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 6 mm²
Nexans U-1000 RVFV 7G1.5 RM
Nexans ref. 10046484 - Country ref. 01301500
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 7
- Conductor cross-section: 1.5 mm²
Nexans U-1000 RVFV 7G2.5 RM
Nexans ref. 10046485 - Country ref. 01301510
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 7
- Conductor cross-section: 2.5 mm²
Description
Description
Standards
-
NationalXP C 32-322
Application
These U-1000 RVFV cables are suitable for direct burial without additionnal protection or for installation on cables trays or in ducts where mechanical protection is necessary (bursting risk).
Core stranding
Cores stranded with filler.
Installation
Burried directly in the ground.
Outside on cable trays, within conduits or fixed to walls.
Marking
U-1000 RVFV NF-USE N° Usine S.Y+ n (x ou G) s mm²
- n = number of cores
- s = section in mm²
- G = with Green-Yellow
- x = without Green-Yellow
Permissible current and voltage drop are given
a) in free air, sheltered from sun, on cable tray or bracket, on cable ladder, and spaced from the wall, temperature = 30°C.
b) buried with thermal resistivity of the ground 1Km/W, laying depth : 600 mm, temperature = 20°C.
If conditions are differents, apply correction factors from NF C 15-100 standard or equivalent national standard
Voltage drop
Calculated with cosj = 0,8
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
