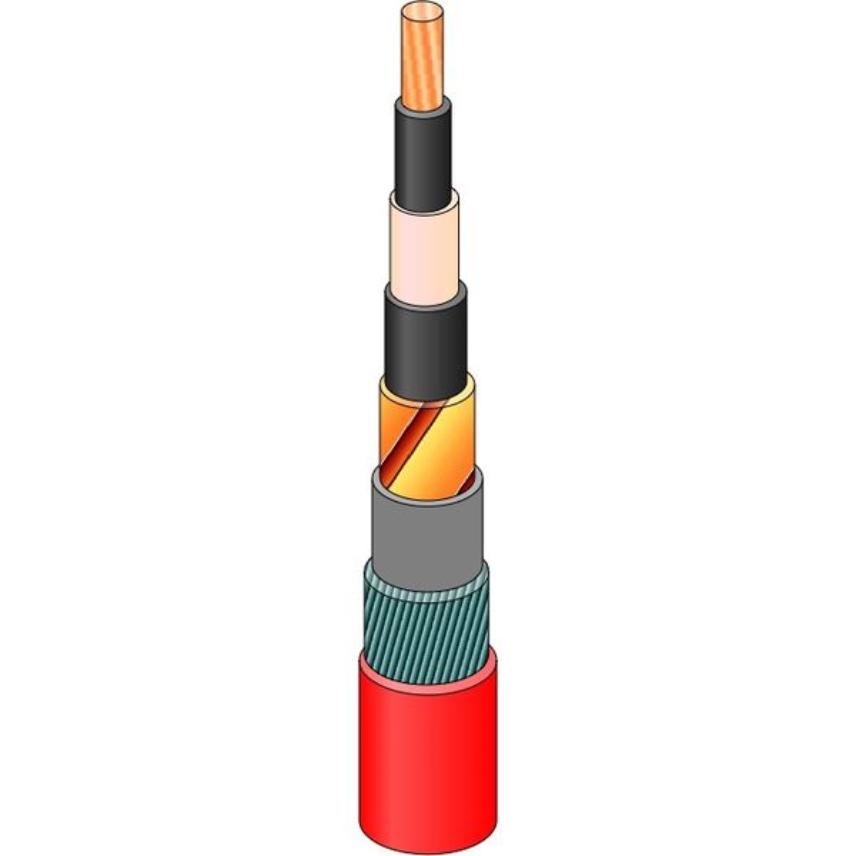

IEC MV, XLPE Insulation, CTS, Lead, AWA, PVC (1C)

IEC MV, XLPE Insulation, CTS, Lead, AWA, PVC (1C)

IEC MV, XLPE Insulation, CTS, Lead, AWA, PVC (1C)

Single-core XLPE-insulated cables with PVC sheath

Read more
Contact us

Products

Actions
Filters

  • products

1x120

Nexans ref. 21120CXTVAB09DO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 3240 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x120

Nexans ref. 21120CXTVAB09EO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 3900 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x120

Nexans ref. 21120CXTVAB09GO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 4100 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x120

Nexans ref. 21120CXTVAB09HO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 4670 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x120

Nexans ref. 21120CXTVAB09JO0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 5340 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x150

Nexans ref. 21150CXTVAB09DO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 3835 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x150

Nexans ref. 21150CXTVAB09EO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 4410 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x150

Nexans ref. 21150CXTVAB09GO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 4590 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x150

Nexans ref. 21150CXTVAB09HO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 4915 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x150

Nexans ref. 21150CXTVAB09JO0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 5510 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x185

Nexans ref. 21185CXTVAB09DO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 4480 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x185

Nexans ref. 21185CXTVAB09EO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 5155 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x185

Nexans ref. 21185CXTVAB09GO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 5275 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x185

Nexans ref. 21185CXTVAB09HO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 5650 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x185

Nexans ref. 21185CXTVAB09JO0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 6650 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x240

Nexans ref. 21240CXTVAB09DO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 5490 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x240

Nexans ref. 21240CXTVAB09EO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 6210 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x240

Nexans ref. 21240CXTVAB09GO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 6265 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x240

Nexans ref. 21240CXTVAB09HO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 6670 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x240

Nexans ref. 21240CXTVAB09JO0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 7600 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x25

Nexans ref. 21025CXTVAB09DO0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 1640 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x25

Nexans ref. 21025CXTVAB09EO0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 1940 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x25

Nexans ref. 21025CXTVAB09GO0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 2080 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x300

Nexans ref. 21300CXTVAB09DO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 6200 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x300

Nexans ref. 21300CXTVAB09EO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 6800 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x300

Nexans ref. 21300CXTVAB09GO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 7000 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x300

Nexans ref. 21300CXTVAB09HO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 8120 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x300

Nexans ref. 21300CXTVAB09JO0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 8910 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x35

Nexans ref. 21035CXTVAB09DO0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 1860 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x35

Nexans ref. 21035CXTVAB09EO0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 2180 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x35

Nexans ref. 21035CXTVAB09GO0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 2360 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x35

Nexans ref. 21035CXTVAB09HO0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 2620 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x400

Nexans ref. 21400CXTVAB09DO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 6870 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x400

Nexans ref. 21400CXTVAB09EO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 7510 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x400

Nexans ref. 21400CXTVAB09GO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 7935 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x400

Nexans ref. 21400CXTVAB09HO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 8325 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x400

Nexans ref. 21400CXTVAB09JO0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 9200 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x50

Nexans ref. 21050CXTVAB09DO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 2140 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x50

Nexans ref. 21050CXTVAB09EO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 2500 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x50

Nexans ref. 21050CXTVAB09GO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 2680 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x50

Nexans ref. 21050CXTVAB09HO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 2940 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x50

Nexans ref. 21050CXTVAB09JO0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 3740 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x500

Nexans ref. 21500CXTVAB09DO0

  • Conductor cross-section: 500 mm²
  • Approximate weight: 8625 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x500

Nexans ref. 21500CXTVAB09EO0

  • Conductor cross-section: 500 mm²
  • Approximate weight: 9510 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x500

Nexans ref. 21500CXTVAB09GO0

  • Conductor cross-section: 500 mm²
  • Approximate weight: 9495 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x500

Nexans ref. 21500CXTVAB09HO0

  • Conductor cross-section: 500 mm²
  • Approximate weight: 9975 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x500

Nexans ref. 21500CXTVAB09JO0

  • Conductor cross-section: 500 mm²
  • Approximate weight: 10590 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x630

Nexans ref. 21630CXTVAB09DO0

  • Conductor cross-section: 630 mm²
  • Approximate weight: 10515 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x630

Nexans ref. 21630CXTVAB09EO0

  • Conductor cross-section: 630 mm²
  • Approximate weight: 11520 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x630

Nexans ref. 21630CXTVAB09GO0

  • Conductor cross-section: 630 mm²
  • Approximate weight: 11475 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x630

Nexans ref. 21630CXTVAB09HO0

  • Conductor cross-section: 630 mm²
  • Approximate weight: 11970 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x630

Nexans ref. 21630CXTVAB09JO0

  • Conductor cross-section: 630 mm²
  • Approximate weight: 12670 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x70

Nexans ref. 21070CXTVAB09DO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 2600 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x70

Nexans ref. 21070CXTVAB09EO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 3020 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x70

Nexans ref. 21070CXTVAB09GO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 3200 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x70

Nexans ref. 21070CXTVAB09HO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 3470 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x70

Nexans ref. 21070CXTVAB09JO0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 4100 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x800

Nexans ref. 21800CXTVAB09DO0

  • Conductor cross-section: 800 mm²
  • Approximate weight: 12885 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x800

Nexans ref. 21800CXTVAB09EO0

  • Conductor cross-section: 800 mm²
  • Approximate weight: 14145 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x800

Nexans ref. 21800CXTVAB09GO0

  • Conductor cross-section: 800 mm²
  • Approximate weight: 14175 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x800

Nexans ref. 21800CXTVAB09HO0

  • Conductor cross-section: 800 mm²
  • Approximate weight: 14715 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x800

Nexans ref. 21800CXTVAB09JO0

  • Conductor cross-section: 800 mm²
  • Approximate weight: 15255 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



1x95

Nexans ref. 21095CXTVAB09DO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 3140 kg/km
  • Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV



1x95

Nexans ref. 21095CXTVAB09EO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 3610 kg/km
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



1x95

Nexans ref. 21095CXTVAB09GO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 3760 kg/km
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



1x95

Nexans ref. 21095CXTVAB09HO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 4160 kg/km
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



1x95

Nexans ref. 21095CXTVAB09JO0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 4860 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



Description

Description

Standards

  • Product
    IEC 60502-2
  • Test
    IEC 60332-1

Application

These power cables are used for electricity supply in medium voltage installation system. They are well adapted to underground use in industrial application where chemical and mechanical protections are needed.
This group is complying with IEC 60502-2.


Design

1. Conductor

Stranded bare copper class 2 acc. to IEC 60228 or equivalent

2. Insulation

Triple extruded Inner semi conductive layer  - Cross Linked Polyethylene 'XLPE' - Outer semi conductive layer

3. Metalic Screen

Copper tape screen

4. Metalic Sheath

Extruded Lead

5. Armour

Aluminum Wire Armour "AWA"

6. Outer Sheath

Polyvinyl Chloride 'PVC'

 Options :

      - Flame retardant : 'CAT A, CAT B, CATC' to IEC60332 or equivalent.

      - Ozone resistant.

      - Oil resistant.

      - Anti termite.

Sheathing layers can be Halogen Free Flame Retardant "HFFR", or Polyethylene '"PE'


Installation Conditions:

1.Air Temperature : 30 Deg.

2.Ground Temperature : 20 Deg

3.Soil Thermal Resistivity : 1.5 km/w

4.Depth of lay : 0.8 m

 All dimensions have tolerance +-7 %

Marking

 no. of cores x  conductor size mm2  Cu/XLPE/LS/AWA/PVC  Voltage grade   Standard  MADE IN QATAR  QICC - Nexans  Year  Meters

Custom marking available

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Stranded class 2
Conductor shape
Circular compacted
Material of the inner semi-conductor
Semi-conducting compound
Insulation
XLPE (Cross-linked Polyethylene)
Material of the external semi-conductor
Semi-conducting compound
Screen
Copper tape
Inner sheath
PVC
Lead Sheath
Yes
Separator
Tape or sheath
Armour type
Aluminium Wire
Outer sheath
PVC compound
Sheath colour
Black

Dimensional characteristics

Dimensional characteristics

Number of cores
1

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Flame retardant
IEC 60332-1
Bending factor when laying
40 (xD)
Bending factor when installed
20 (xD)

Resources

Resources

Selling & delivery Information


Note: On request we are delivering three single core laid up cables on one drum

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
